Truck with crane is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.
The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work.

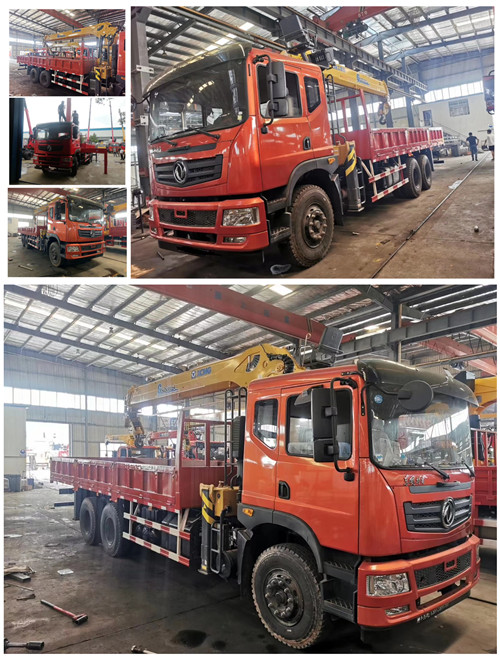

More pictures of Dongfeng 6*4 LHD 10T telescopic crane boom mounted on cargo truck is as below.
HOT SALE! Dongfeng 10T telescopic crane boom mounted on cargo truck for sale
main technical parameters of Dongfeng 6*4 LHD 10tons telescopic crane boom mounted on truck for sale
| Product name | Dongfeng 6*4 LHD 10tons telescopic crane boom mounted on truck for sale | |
| Chassis type | EQ | |
| Parameters | Overall dimension length/width/height (mm) | 11945×2500×3850,3750 |
| Cargo body dimension (L*W*H)(mm) | 8500,8200×2294×550,800 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 12805 (Kg) | |
| Rated mass(kg) | 12000 (Kg) | |
| Approach angle/ Departure angle(mm) | 32/12 (°) | |
| Front suspension/rear suspension(mm) | 1245/3500, | |
| Fuel Type | diesel | |
| Max Speed | 85 | |
| Engine | Type | B210 33 |
| Displacement/Power(kw) | 5900hp/210hp | |
| Manufacturer | CUMMINS | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5900+1300 | |
| Tread(front/rear) | 1940/1860/1860 (mm) | |
| Transmission | 8 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng 153 6*4 one row and a half driver cab with original air conditioner | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00-20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8500,8200×2294×550,800 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 10T telescopic crane boom | |
| The color of the whole truck is upon request. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
