SINO TRUK HOWO 4*2 LHD 160hp diesel engine 10,000Liters fuel tanker truck for sale,
Customized SINO TRUK HOWO 4*2 LHD 160hp diesel engine 10cbm oil tanker truck adopts SINO TRUK HOWO 2080mm one row and a half driver cab, YC4E140-33 140hp diesel/ YC4E160-33 160hp diesel Euro 3 engine, 4200mm wheelbase, 8.25R20 rail tires, 6 speed manual gearbox, 3.2tons front axle/8tons rear axle, power steering, clutch steering, etc.
The volume of SINO TRUK HOWO 4*2 LHD 160hp fuel tanker truck is 10,000Liters, which equipped with special carbon steel oil pump, one Euro standard manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit elevating guardrail; one unit of China-made English words small flow refueling dispenser of 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc.
HOWO oil tanker truck , fuel tanking named HOWO refilling oil tanker , SINO TRUK oil bowser, HOWO fuel tank vehicle, SINOTRUK oil tanker,oil carrier , 4x2 oil wagon sprayer ,6wheelers fuel multi-function tanker
It use truck chassis mounted a carbon steel oil tanker, it has a high quality oil pump. So all over the world need our tank trucks
light duty 4x2 Howo Oil Truck Oil Quality Tanker Truck Sinotruk HOWO 10CBM Oil Tanker Truck for sale. This kind tank truck is not just a carryer of oil , it also can refilling oil to other equipment.

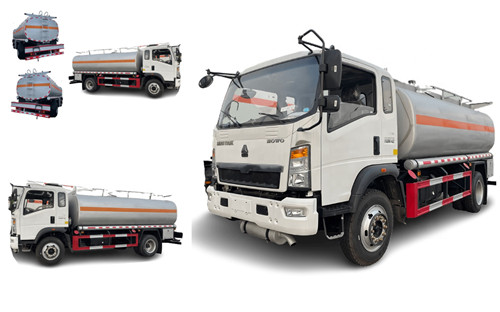

More pictures of HOWO 10,000Liters bulk oil tanker truck is as below.
HOT SALE! SINO TRUK HOWO 4*2 LHD diesel fuel tanker truck for sale
main technical parameters of SINO TRUK HOWO 4*2 LHD diesel fuel tanker truck is as below.
| Main technical parameters | |||
| SINO TRUK HOWO Light duty 10000Liters fuel tanker delivery truck for sale | |||
| Total mass(Kg) | 9990 | Tank volume(Liters) | 10,000 |
| Rated mass(Kg) | 4850 | Overall dimension(mm) | 7390×2190×2750 |
| Curb mass(Kg) | 4945 | Driver cab person | 2-3 |
| Approach/departure angle(°) | 18/17 | Front/rear suspension(mm) | 1240/1950 |
| Axle nos. | 2 | Wheelbase(mm) | 4200 |
| axle load (Kg) | 3145/6845 | Max speed (Km/h) | 80 |
| Chassis main parameters | |||
| Chassis model | ZZ1107 | Chassis manufacturer | SINO TRUK HOWO |
| Tyre specification | 8.25R16 rail tires | Tyre nos. | 6+1 |
| Steel spring | 8/9+6, | Front tread(mm) | 1825(mm) |
| Fuel type | Diesel | Rear tread(mm) | 1605(mm) |
| Transmission | 6 speed gearbox, manual | Air-conditioner | No, choose to install |
| Power steering | Yes | Front/rear bridge | 3.2tons/8tons |
| Electronic line | 24V | Exhaust braking | Yes |
| brake | Air brake | Driver cab | SINO TRUK HOWO 2080mm one row and a half driver cab |
| Emission standard | Euro Ⅲ | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| YC4E140-33 YC4E160-33 | Yuchai Yuchai | 4257 4257 | 105 118 |
| other Equipment or performances | 1. The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, with single one compartment and several anti-wave sheets. And the oil tanker volume is 10000Liters. | ||
| 2. Equipped with special carbon steel oil pump, one Euro standard manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit elevating guardrail; one unit of China-made English words small flow refueling dispenser of 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc. | |||
| 3, The truck is painted metallic coating. And the fuel dispenser is installed at the side under part as the picture show. | |||
Fuel tanker truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil ,alcohol. Oil pump equipped ,with pump in pump out function.
The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.
