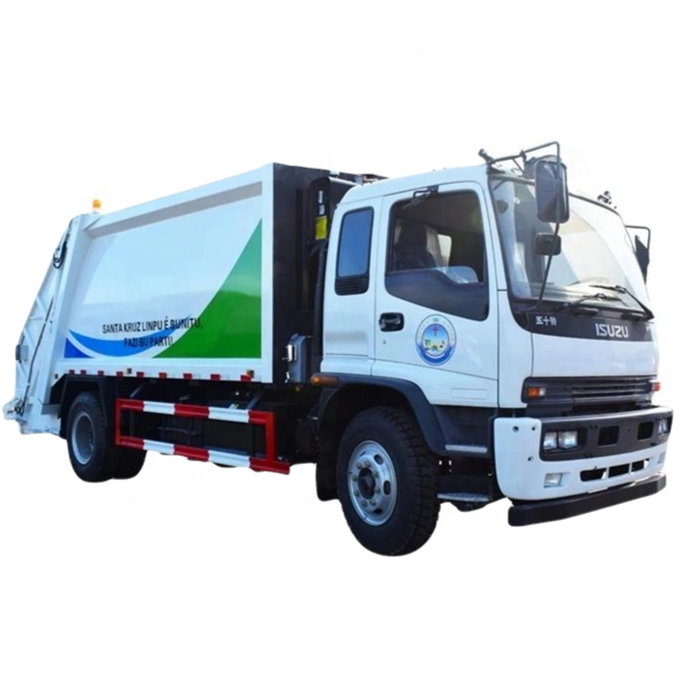

Customized ISUZU 4*2 LHD FTR 14cbm garbage compactor truck for Philippines
One unit of ISUZU brand 4*2 LHD FTR 205HP Euro 5 diesel 14cbm garbage compactor truck adopts ISUZU brand FTR one row and a half driver cab with air conditioner and power steering, 5000mm wheelbase, ISUZU MLD 6 speed manual gearbox, 6.3tons front axle/13t rear axle, 10.00R20 rail tires, electric windows and doors, 4HK1-TC50 205hp diesel Euro 5 engine, etc.
The volume of ISUZU brand FTR refuse compactor garbage truck is 14cbm,and with the wastes loading capacity of about 13tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
HOT SALE!ISUZU brand FTR 14cbm refuse compactor garbage truck for sale
Main technical parameters of ISUZU FTR 14cbm refuse garbage compactor truck is as below.
| Vehicle parameters ISUZU FTR 14cbm urban garbage compactor truck 12m3 waste compressed truck 10 ton rubbish truck | |||
| Vehicle Model | CLW5160ZYSQ | Vehicle Brand | CLW |
| Overall dimensions | 9255X2500X2920mm | Curb weight | 6135kg |
| Loading capacity | 14m3 | ||
| Chassis parameters | |||
| Chassis model | QL1160VNFRY | Chassis brand | ISUZU |
| Overall dimensions | 8785x2465x2810 | Wheel base | 5000mm |
| Front/rear wheel track | 1960/1855mm | Front/rear suspension | 1335/2450mm |
| Approach/departure angle | 26/11° | Maximum speed | 95km/h |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||
| Cab | Configuration | FTR ,a row and a half cab(with sleeping berth),allowable 3 passengers,with air conditioner, central locking, electric windows, USB audio, cab can be flipped. | |
| Color | White,other color is optional | ||
| Engine | Model | 4HK1-TC50 | |
| Emission | Euro 5 | ||
| Type | 6 cylinders, in-line, 4-stroke,Exhaust gas turbo, air-to-air inter-cooling ,diesel engine | ||
| Rated power | 205hp | ||
| Displacement | 5193ml | ||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||
| Tire | Size | 10.00R20 16PR | |
| Number | 6+1 nos | ||
| Frame | 258X85(10+4)mm | ||
| Front axle | 6.3 tons | ||
| Rear axle | 13.0 tons | ||
| Drive form | 4X2 | ||
| Suspension | Multi leaf springs | ||
| Rated voltage | 24V,DC | ||
| Transmissions | Isuzu MLD six speed transmission,6 speed forward 1 reverse. | ||
| Steering device | Power assisted steering | ||
| Steering wheel | Left hand drive | ||
| Selective configuration | Tire :1000R20 | ||
| Refuse compactor structure parameters | |||
| Equipment | |||
| Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems | ||
| Loading capacity | 14m3 | ||
| System of loading | Mechanized, rear loading | ||
| Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic | ||
| Body | |||
| Version | All-metal | ||
| Shape | arc-shaped | ||
| Sidewalls | Sheet carbon steel (thickness: 4 mm) | ||
| Bottom | Sheet carbon steel (thickness: 4 mm) | ||
| Roof | Sheet carbon steel (thickness: 4 mm) | ||
| Front frame | Sheet carbonaceous steel (thickness: 5 mm) | ||
| Rear frame | shaped profile from sheet carbon steel (thickness:5 mm) | ||
| Basis | 120X120mm (thickness: 5 mm) | ||
| Loading bunker | |||
| Loading bunker | All-metal with sidewalls and a loading ladle | ||
| Volume | 14 m3 | ||
| Sidewalls | Sheet carbon steel (thickness: 4 mm) | ||
| Ladle floor material | Sheet carbon steel (thickness: 4 mm) | ||
| Liquid drain | Drainage channel,sewage tank | ||
| Working zone Lighting | 2 lamps | ||
| Mechanism of raising | Two hydraulic cylinders | ||
| Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. | ||
| Pressing system | |||
| Features | Control mode diversification,bidirectional compression | ||
| Pressure | 16Mpa | ||
| Compaction ratio | 3.0:1 | ||
| Loading cycle | 25-30 second | ||
| Unloading cycle | 15-20 second | ||
| pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars | ||
| Pressing mode | Automatic pressing | ||
| (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately | |||
| Control of pressing | Control from the external panel on the bunker | ||
| Lifting rear part | |||
| Mechanism of lifting | Two hydraulic cylinders | ||
| Function description | Suitable for various rubbish bins | ||
| Others | |||
| Color and Logo | Optional | ||
| Standard configuration | Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control. | ||
| Selective configuration | PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc. | ||
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
