Hot sale! DONGFENG TIANJIN 4*2 LHD 5T knuckle crane on cargo truck
DONGFENG TIANJIN 4*2 LHD 5T cargo truck with crane for sale, adopts dongfeng Tianjin one row and a half driver cab, 4700mm wheelbase, Cummins B190 33 190hp diesel engine, 8 speed manual gearbox, power steering and air cut braking, 10.00R20 rail tires, 4700mm wheelbase.
And the overall dimension of Dongfeng Tianjin 4*2 LHD 5T knuckle truck with crane is 8600×2500×3790(mm), and the cargo body dimension of dongfeng Tianjin 5T cargo truck with crane is 5300×2294×550(mm).Clients choose high quality CLW Brand 5tons/6.3tons telescopic crane boom.

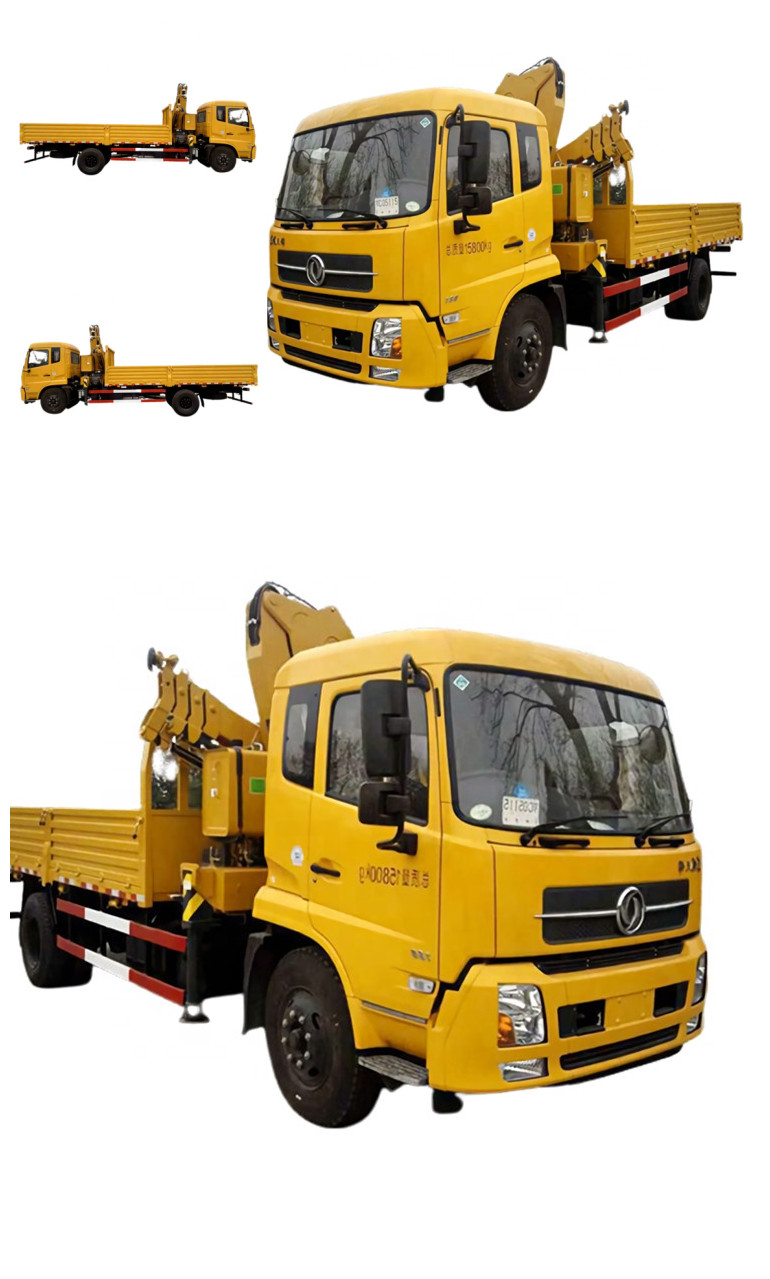

More pictures of Dongfeng tianjin 4*2 LHD knuckle crane boom mounted on cargo truck is as below.
HOT SALE! Dongfeng tianjin 5T knuckle crane boom mounted on cargo truck for sale
Main technical parameters of Dongfeng Tianjin 4*2 LHD cargo truck with crane as below.
| Product name | Dongfeng dongfeng Tianjin LHD 5tons knuckle crane boom mounted on truck for sale | |
| Chassis type | DFL1160 | |
| Parameters | Overall dimension length/width/height (mm) | 8600×2500×3790 |
| Cargo body dimension (L*W*H)(mm) | 5300×2294×550 | |
| GVW(kg) | 16000 (Kg) | |
| Kerb Mass(kg) | 8305,7805 (Kg) | |
| Rated mass(kg) | 7500,8000 (Kg) | |
| Approach angle/ Departure angle(mm) | 20/10 (°) | |
| Front suspension/rear suspension(mm) | 1430/2550 | |
| Fuel Type | diesel | |
| Max Speed | 80 | |
| Engine | Type | B190 33 |
| Displacement/Power(kw) | 5900hp/190hp | |
| Manufacturer | CUMMINS | |
| Chassis | Drive Type | 4*2 |
| Wheelbase(mm) | 4700 | |
| Tread(front/rear) | 1880/1860 (mm) | |
| Transmission | 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng Tianjin one row and a half luxurious driver cab | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00R20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5300×2294×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 5ton 3 sections knuckle crane boom | |
| Working radius(m) | 8.6m | |
| Lifting height(m) | 10.6m | |
| Remark | Full hydraulically | |
| The color of the whole truck is upon request. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
