HOT SALE!Shacman Brand 4*2 LHD 8CBM compacted garbage truck for sale
Customized Shacman Brand 4*2 LHD 8CBM garbage compactor truck adopts shacman single driver cab with mechanical seat, air conditioning, electric doors and Windows, safety belt lock alarm, headlight adjustment, 3800mm wheelbase, YC4D130-33 EURO II diesel engine, 6DS50T fastgear 6 speed manual gearbox, 1068/2.5T 2.5T front axle/ 1080/6T 6T rear axle, ￠350diaphragm clutch, 130L fuel tank Iron, 8.25R20/16PR （6+1）, Running brake: Dual circuit compressed air brake, Parking brake: Air discharging with spring control, Auxiliary brake: Engine exhaust brake
The volume of SHACMAN brand 4*2 LHD/RHD 130hp diesel reuse compactor garbage truck is 8cbm. And with the wastes loading capacity of about 8tons-10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

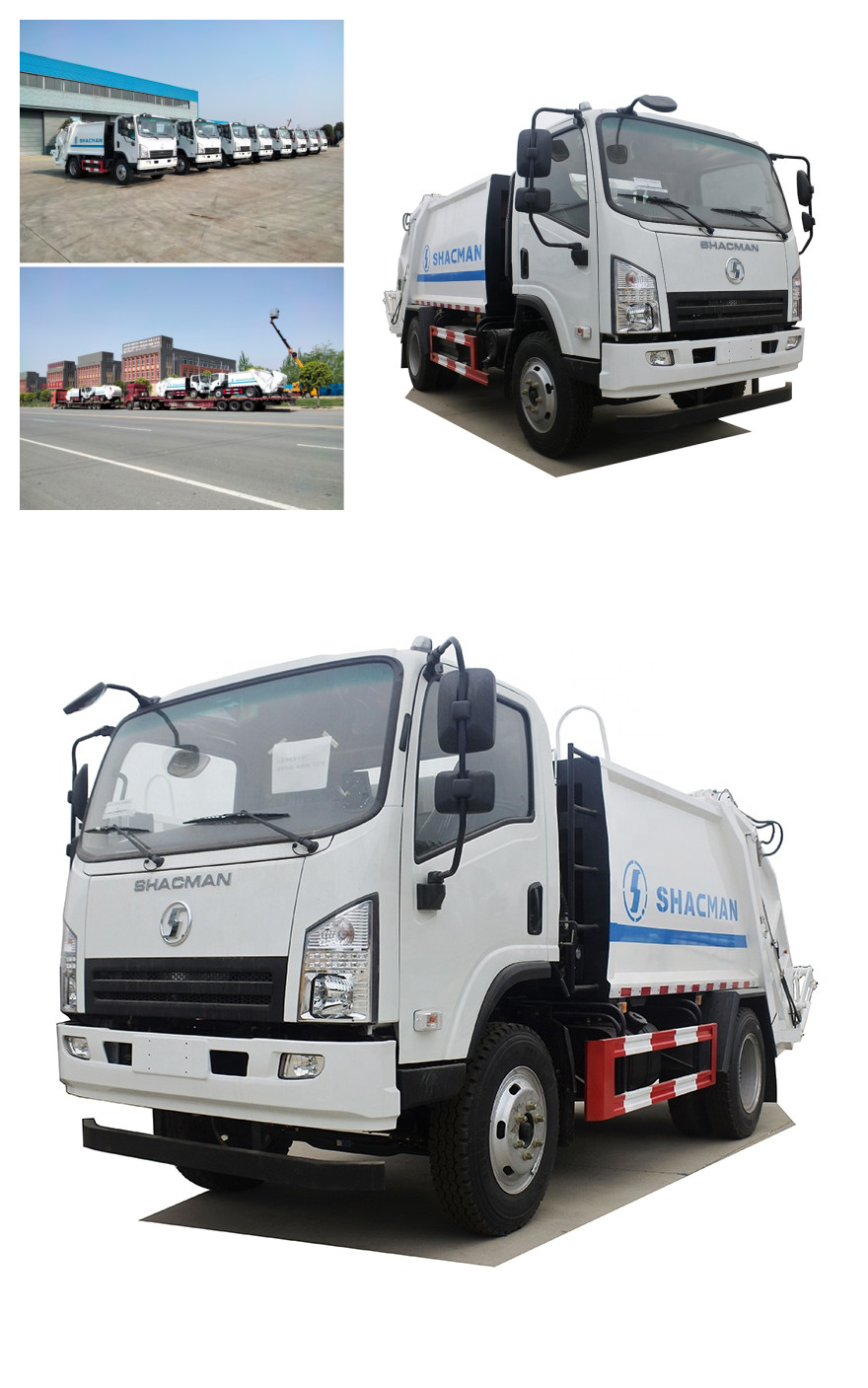

More pictures of SHACMAN brand 4*2 LHD 130hp diesel 8cbm Refuse compactor garbage truck is as below.
HOT SALE! SHACMAN brand 4*2 LHD diesel 130hp 8cbm Refuse compactor garbage truck for sale
Main technical parameters of SHACMAN brand 8cbm Refuse compacted garbage truck is as below.
| 1 | Product name | SHACMAN brand 4*2 LHD 7cbm garbage compactor truck for sale (CL5080ZYS3HQ) |
| 2 | Truck chassis model | SX1080 |
| 3 | Overall dimension(L*W*H) | 7320 |
| 4 | Total mass(kgs) | 12000 |
| 5 | Curb mass(kgs) | 6590 |
| 6 | Rated mass(kgs) | 5500 |
| 7 | Volume | 8m3 |
| 8 | Real loading capacity of wastes | About 6,000kgs |
| 9 | Max speed | 85kw/h |
| 10 | Wheelbase | 3800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | Shacman single driver cab with mechanical seat, air conditioning, electric doors and Windows, safety belt lock alarm, headlight adjustment |
| 13 | Approach/departure angle(°) | 16/19 |
| 14 | Front/rear suspension (mm) | 1200/2090 |
| 15 | Front/rear tread(mm) | 1700/1650 |
| 16 | Tire specification | 8.25R20/16PR （6+1） |
| 17 | Spring | 9/11+5 |
| 18 | Engine model | YC4D130-33 |
| 19 | Rated power | 96KW/130hp |
| 20 | Displacement(ml) | 4.214 L |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 2 |
| 23 | Gearbox | 6DS50T fastgear 6 speed manual gearbox |
| 24 | Color | Different color upon request |
| 25 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 26 | Wastes van material | High quality China standard light duty steel |
| 27 | Operation way | PLC control way |
| 28 | Loading and discharging way | Rear overturning mechanism |
| 29 | Compacted way | Bi-directional compression |
| 30 | Wastes compacting density | ≥0.8tons/m3 |
| 31 | One working circle time for loading and discharging | ≤30s |
| 32 | Max compressing force | ≥150KN |
| 35 | Max passing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
