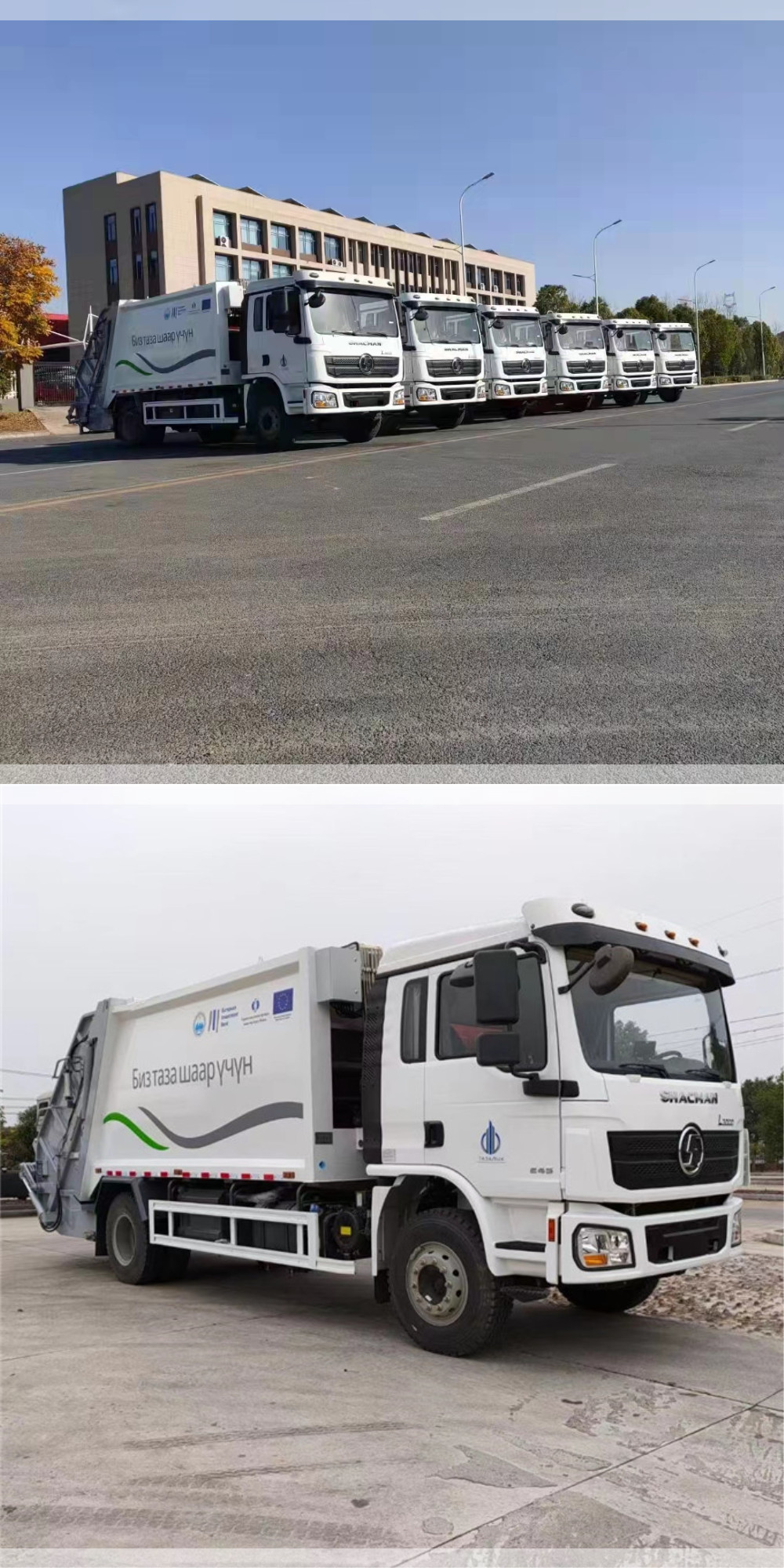

Customized SHACMAN RHD 210hp 14cbm garbage compactor truck for East Africa
One unit of SHACMAN brnd 4*2 RHD 210hp diesel garbage compactor truck with the volume of 14cbm is customized for client from East Africa.
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita.
The specification of SHACMAN 4*2 RHD 14cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 | Product name | SYHACMAN 4*2 RHD garbage compactor truck for sale(14cbm) |
| 2 | Truck chassis model | SX |
| 3 | Overall dimension(L*W*H) | 9000×2550×3300 |
| 4 | Total mass(kgs) | 18000 |
| 5 | Curb mass(kgs) | 10500 |
| 6 | Driver cab person | 3 included the driver |
| 7 | Volume | 14cbm |
| 8 | Real loading capacity | About 11tons |
| 9 | Max speed | 89kw/h |
| 10 | Wheelbase | 4500 |
| 11 | Axle nos. | 3 |
| 12 | Driver cab | SHACMAN brand 4*2 LHD L3000 one row and a half driver cab |
| 13 | Approach/departure angle(°) | 23/10 |
| 14 | Front/rear suspension (mm) | 1450/2850 |
| 15 | Front/rear tread(mm) | 1970/1860 |
| 16 | Tire specification | 10.00R20 |
| 17 | Spring | 8/10+8 |
| 18 | Engine model | WP6.210E32 |
| 19 | Rated power | 155KW/210hp |
| 20 | Displacement(ml) | 6230ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 2 |
| 23 | Gearbox | 8JS85T 8 speed gearbox, manual |
| 24 | Front/rear axle | 4.8T front axle/10T rear axle |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
SHACMAN brand 4*2 RHD 210hp diesel garbage compactor truck, adopts SHACMAN brand 4*2 LHD L3000 one row and a half driver cab, 4500mm wheelbase, WP6.210E32 weichai 210hp Euro 3 diesel engine, 8JS85T 8 speed manual gearbox, 4.8T front axle/10T rear axle, 200Liters steel oil tanker, 10,00R20 Rail tires, etc.
The volume of the compactor garbage van is 14m3,and with the wastes loading capacity of about 11tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
High quality and best price SHACMAN brand compacted garbage truck 14cubic meters for sale
SHACMAN brand RHD 14CBM garbage compactor truck for sale
Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs. It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
We Chengli Special Automobile Co., Ltd. can produce many kinds of garbage trucks, including compactor garbage truck, garbge collection truck, garbage transportion truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, skip garbage truck, arm-roll rubbish truck, hanging bin garbage truck, dump garbage truck. More information, please dial 0086 13329899995.
