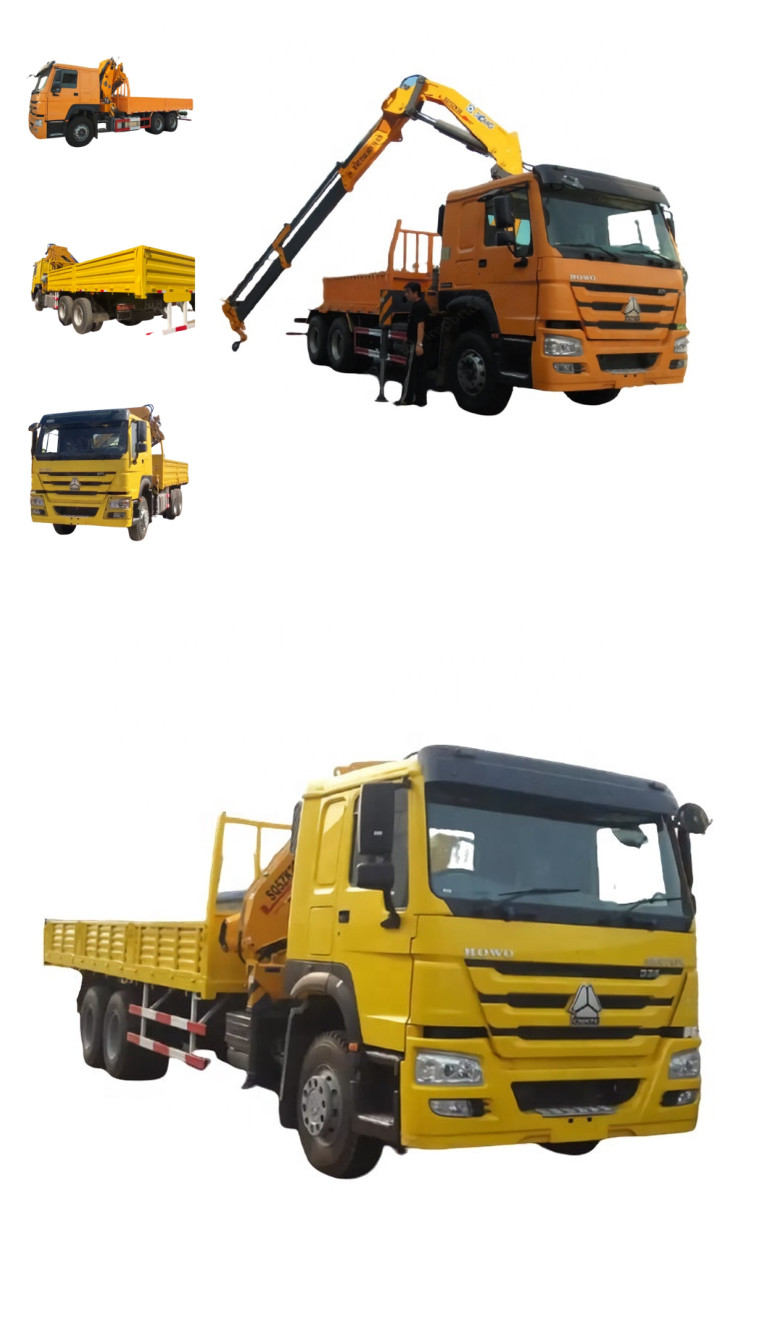

HOT SALE!SINO TRUK HOWO 6*4 LHD 6.3T cargo truck with knuckle crane for sale,
Customized SINO TRUK HOWO 6*4 LHD 6.3T cargo truck with crane, adopts SINO TRUK HOWO HW76 new face one row and half driver cab, 5825+1350mm wheelbase, WD615.87 weichai 290hp diesel engine, HW13710 10 speed manual gearbox + HW70 PTO, HF7 7 tons front axle/HF16 16 double rear axles, 8+5/300 truck frame, 12.00R20 rail tires, 400L oil tanker, air conditioner, etc.
This SINO TRUK HOWO 6*4 LHD 290hp diesel truck with crane choose to install XCMG brand 6.3T knuckle crane/knuckle crane boom.
Good price SINOTRUK HOWO 6*4 LHD 290hp diesel 6.3T cargo truck with knukcle crane boom for sale
Main technical parameters of SINO TRUK HOWO 6*4 LHD 290hp diesel cargo truck with crane is as below
| Product name | SINO TRUK HOWO 6*4 LHD 6.3tons telescopic crane mounted on truck for sale | |
| Chassis type | ZZ | |
| Parameters | Overall dimension length/width/height (mm) | 11800×2498×3600 |
| Cargo body dimension (L*W*H)(mm) | 8000×2300×550,600 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 14780 (Kg) | |
| Rated mass(kg) | 9990(Kg) | |
| Approach angle/ Departure angle(mm) | 16/14 (°) | |
| Front suspension/rear suspension(mm) | 1500/3125 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 85 | |
| Engine | Type | WD615.87 |
| Displacement/Power(kw) | 9726ml/213KW/290hp | |
| Manufacturer | Weichai diesel engine | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5825+1350 | |
| Tread(front/rear) | 2022; 1830/1830 (mm) | |
| Transmission | HW19710 10 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | SINO TRUK HOWO HW76 one row and a half driver cab with air conditioner | |
| Number of spring axle(front/rear) | 10/12 | |
| Tire Type | 12.00R20 | |
| Air-condition | YES, | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8000×2300×550,600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | knuckle crane boom (SQ6.3ZK2Q) | |
| Lifting height | 11m | |
| Working radius | 8.5m | |
| Aerial operation seat | Yes | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
