HOT SALE! SHACMAN brand 6*4 LHD 340hp 26yards garbage compactor truck for Central America
HOT SALE! SHACMAN brand 6*4 LHD 340hp diesel 20cbm garbage compactor truck, adopts SHACMAN H3000 one row and a half driver cab, 6*4 Left hand driving, 4375+1400mm wheelbase, 7.5TMAN front axle/13T MAN double rear axles, RTD-11509C+QH50 9 speed manual gearbox, 12.00R20 rail tires, 300L aluminum alloy oil tanker, etc.
The volume of this SHACMAN brand H3000 6*4 LHD garbage compactor truck is 20cbm-22cbm. That is the volume is about 26cubic yards-29cubic yards. The overall dimension(L*W*H) of SHACMAN brand 6*4 LHD garbage compactor truck is 10350×2550×3450(mm).
He wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Main technical parameters of SHACMAN brand 6*4 LHD 26 yards-29yards compacted garbage truck is as below.
| 1 | Product name | SHACMAN brand 8*4 LHD 20m3-22m3 garbage compactor truck for sale (26 cubic yards-29 cubic yards) |
| 2 | Truck chassis model | SX |
| 3 | Overall dimension(L*W*H) | 10350×2550×3450(mm). |
| 4 | Total mass(kgs) | 25000 |
| 5 | Curb mass(kgs) | 15850 |
| 6 | Driver cab person | 3 included the driver |
| 7 | Volume | 20-22cbm |
| 8 | Real loading capacity | About 15-16tons |
| 9 | Max speed | 85kw/h |
| 10 | Wheelbase | 4375+1400MM |
| 11 | Axle nos. | 3 |
| 12 | Driver cab | SHACMAN H3000 one row and a half driver cab |
| 13 | Approach/departure angle(°) | 23/10 |
| 14 | Front/rear suspension (mm) | 1525/2850(mm) |
| 15 | Front/rear tread(mm) | 2036; 1860/1860 |
| 16 | Tire specification | 12.00R20 |
| 17 | Spring | 10/12 |
| 18 | Engine model | WP10.340E22 |
| 19 | Rated power | 250KW/340hp |
| 20 | Displacement(ml) | 9726ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 2 |
| 23 | Gearbox | 9 speed gearbox, manual RTD-11509C+QH50 |
| 24 | Front/rear axle | 7.5TMAN front axle/13T MAN double rear axles |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |

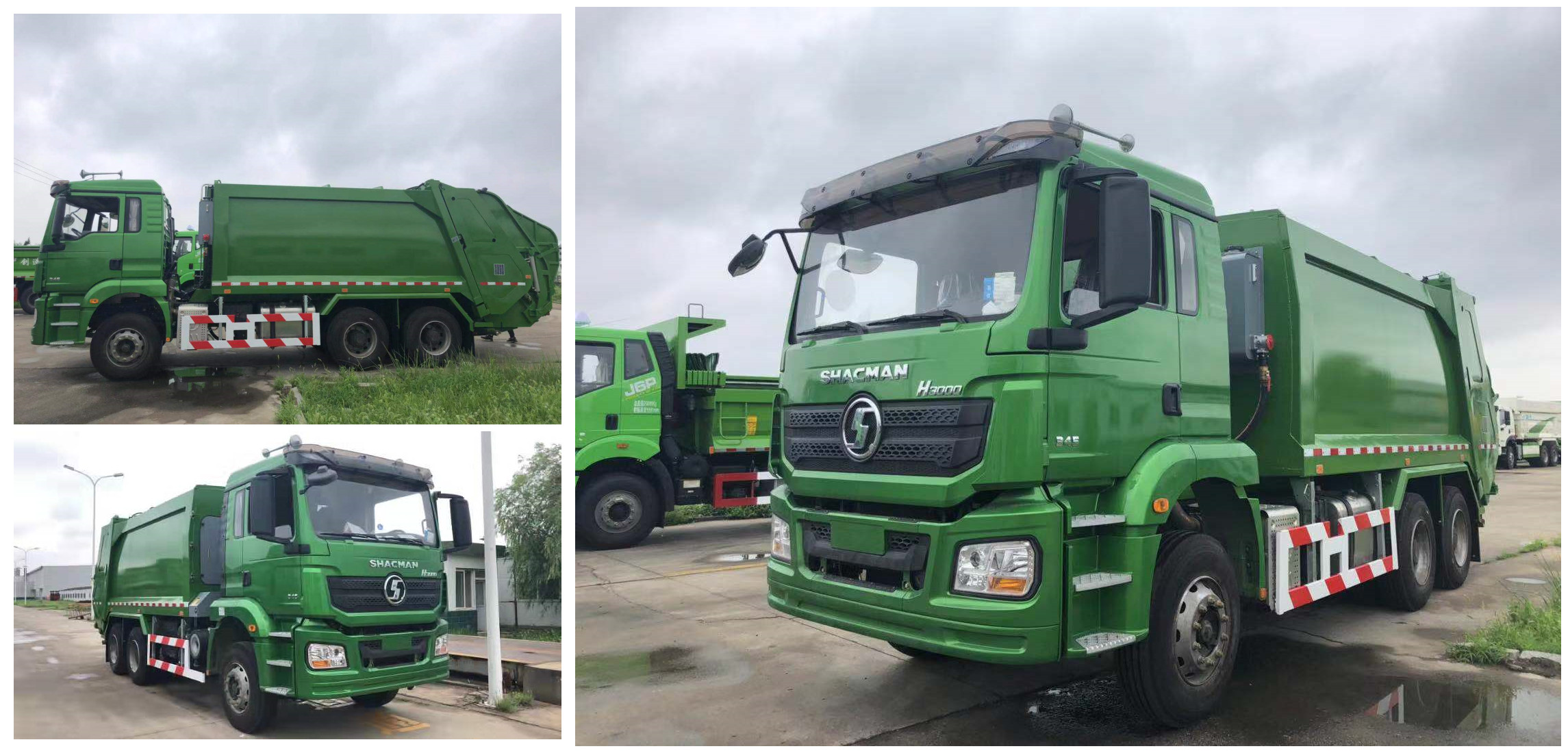

More pictures of SHACMAN brand 6*4 LHD 340hp DIESEL 26yards garbage compactor truck is as below.
customized SHACMAN brand 26 yards compression garbage truck for Central America
Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs. It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
We Chengli Special Automobile Co., Ltd. can produce many kinds of garbage trucks, including compactor garbage truck, garbge collection truck, garbage transportion truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, skip garbage truck, arm-roll rubbish truck, hanging bin garbage truck, dump garbage truck, hermetic garbage truck, sealed garbage trucks for sale, arm shaking garbage truck, and so on. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
