HOT SALE!FOTON AUMARK 4*2 LHD 4T knuckle crane boom mounted on cargo truck
Customized FOTON AUMARK knuckle crane boom mounted on cargo truck, adopts FOTON AUMARK S 2060mm single row driver cab, 3800mm wheelbase, F3.8S3141 141hp Euro 3 diesel engine 6 speed manual gearbox, 3.6T front axle/6.5T rear axle, 8.25R20 rail tires, air cut braking, etc.
The dimension(L*W*H) of FOTON AUMARK 4T knuckle crane boom is 4400×2100×550(mm); while the overall dimension(L*W*H) of FOTON AUMARK 4T cargo truck with crane is 6995×2270×3100(mm). Clients choose to install XCMG brand 4T knuckle crane boom. (Crane boom model: SQ4ZK2, 3 sections knuckle crane boom， lifting height: 10.2m; working radius: 7.6m).

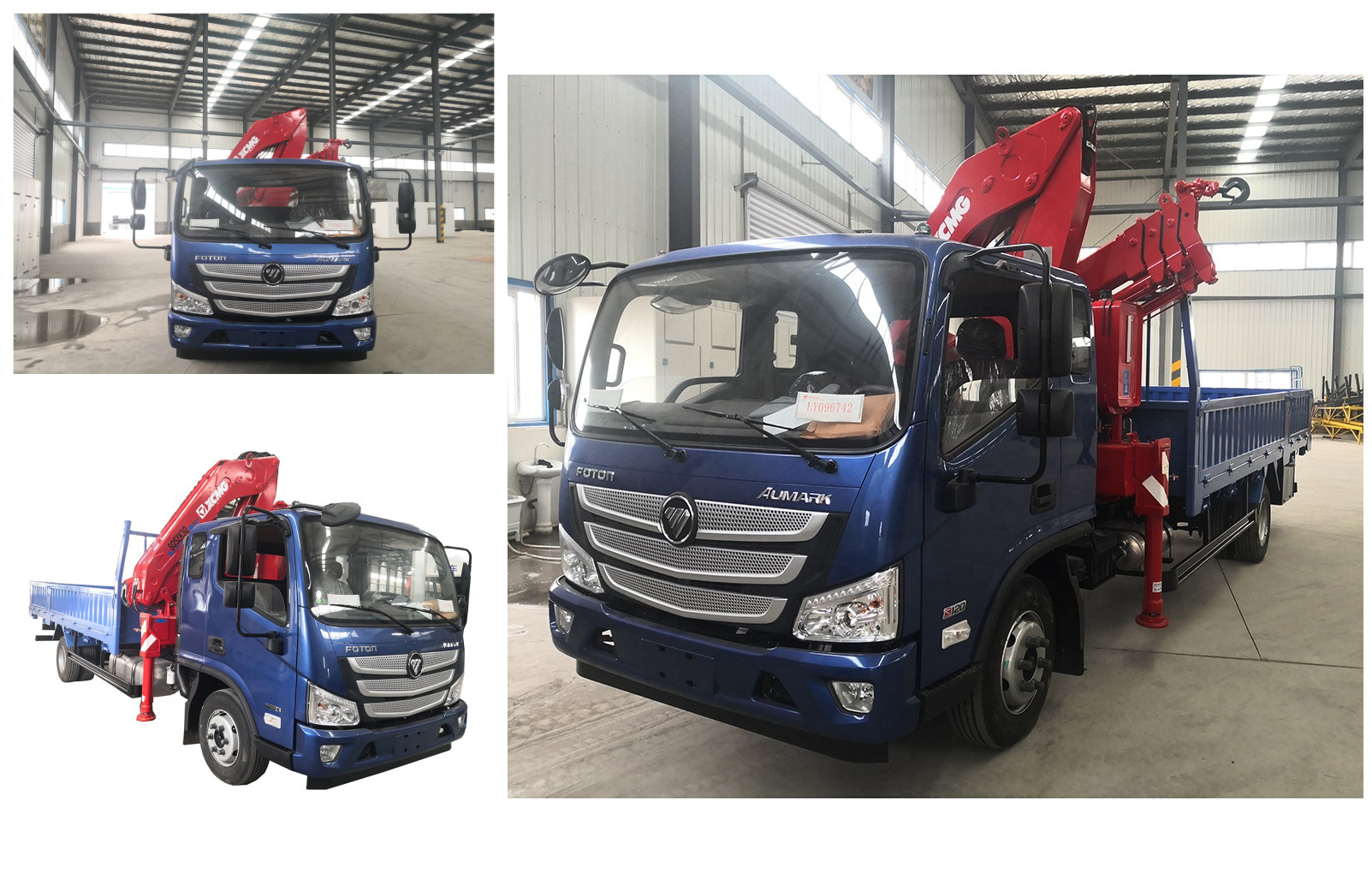

More picutres of FOTON AUMARK 4T knuckle crane boom mounted on cargo truck is as below.
HOT SALE! FOTON AUMARK 4T knuckle crane boom mounted on cargo truck for sale
Main technical parameters of FOTON AUMARK 4T knuckle crane boom mounted on cargo truck is as below.
| Product name | FOTON AUMARK 4T knuckle crane boom mounted on cargo truck for sale | |
| Chassis type | BJ1083 | |
| Parameters | Overall dimension length/width/height (mm) | 6995×2270×3100 |
| Cargo body dimension (L*W*H)(mm) | 4400×2100×550 | |
| GVW(kg) | 8495(Kg) | |
| Kerb Mass(kg) | 5410(Kg) | |
| Rated mass(kg) | 2890(Kg) | |
| Approach angle/ Departure angle(mm) | 21/20 (°) | |
| Front /rear suspension(mm) | 1120/2075 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | F3.8S3141 |
| Displacement/Power(kw) | 3760ml/105KW/141hp | |
| Manufacturer | FOTON CUMMINS | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3800 | |
| Tread(front/rear) | 1688/1630(mm) | |
| Transmission | 6S558 6 speed manual gearbox | |
| Braking system | Air cut braking | |
| Cab | FOTON AUMARK S 2060mm single row driver cab | |
| Number of spring axle(front/rear) | 9/11+7 | |
| Tire Type | 8.25R20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4400×2100×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 4T 3 sections knuckle crane boom | |
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
