Customized ISUZU Brand 600P day old chicks transported truck for Republic of Congo
Customized ISUZU brand 600P 4*2 LHD day old chicks transported vehicle for 30,000 day old chicks transportation.
Customized ISUZU brand 130hp diesel day old chick transported vehicle, adopts ISUZU 600P 4*2 LHD single row driver cab, ISUZU MSB 5 speed manual gearbox, 2-2.5tons front axle/4.8tons rear axle, 7.00R16 rail tires, original air conditioner and power steering, etc.
The dimension(L*W*H) of ISUZU 600P 130hp Euro 5 diesel day old chicks transported truck is 5000×1900×1800(mm), while the overall dimension(L*W*H) of ISUZU 600P day old chicks truck is 7000*2130*3000(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit( the lowest temperature is up to -15 degree.)
Details of ISUZU 600P day old chicks transported truck is as below.
1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,4-5 sets of blind windows with sliding doors for the left and right van sides
4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top
5, Top mounted sky window* 3 sets
6, two line of air duct installed on the floor air flow
7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.
Main technical parameters of ISUZU Brand 600P day old chicks transported truck is as below.
| Overview | |
| Product name | Isuzu Brand 4*2 LHD day old chick transported truck(5tons) |
| Dimension(L*W*H)(mm) | 7000*2130*3000 |
| Total mass(kgs) | 6795 |
| Rated payload(kgs) | 3310 |
| Kerb weight(kgs) | 3470 |
| Driver cab seats | 3(driver included) |
| Approach/departure angle(°) | 19/13 |
| The parameters of chassis | |
| Truck chassis manufacturer | ISUZU |
| Driving type | 4*2 LHD(Left hand drive) |
| Wheelbase(mm) | 3815 |
| Gearbox | ISUZU MSB 5 speed manual gearbox |
| Front/rear track(mm) | 1685/1520 |
| Tyre specification | 7.50R16*6+1(spare) |
| Front/rear suspension(mm) | 1110/2015 |
| Leaf Spring number | 3/3+2 |
| Driver cab A/C | Equipped |
| The parameters of engine | |
| Engine manufactuer/model | ISUZU 4KH1CN5HS |
| Engine rated power | 130hp/96KW |
| Fuel type | Diesel/oil |
| Displacement/capacity(ml) | 2999 |
| Emission standard | Euro 5 |
| Cylinders | 4 cylinder in line |
| Max .torque | 290N.m |
| Velocity | 1500rpm |
| The parameters of van body | |
| Van box body dimension(L*W*H)(mm) | 5000*1800*1900 |
| Material | 2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS |
| Rubber sealing | Equipped |
| Van body skeleton rim | Aluminum |
| Doorframe and locks | Stainless steel material |
| Lighting | LED lights |
| Cooling system | CARRIER reefer unit(model: C-500) |
| Ventilations | Both van body sides total with 8 windows(4*2), ceiling 3 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents |
| Shelves | Two sides and tiltable |

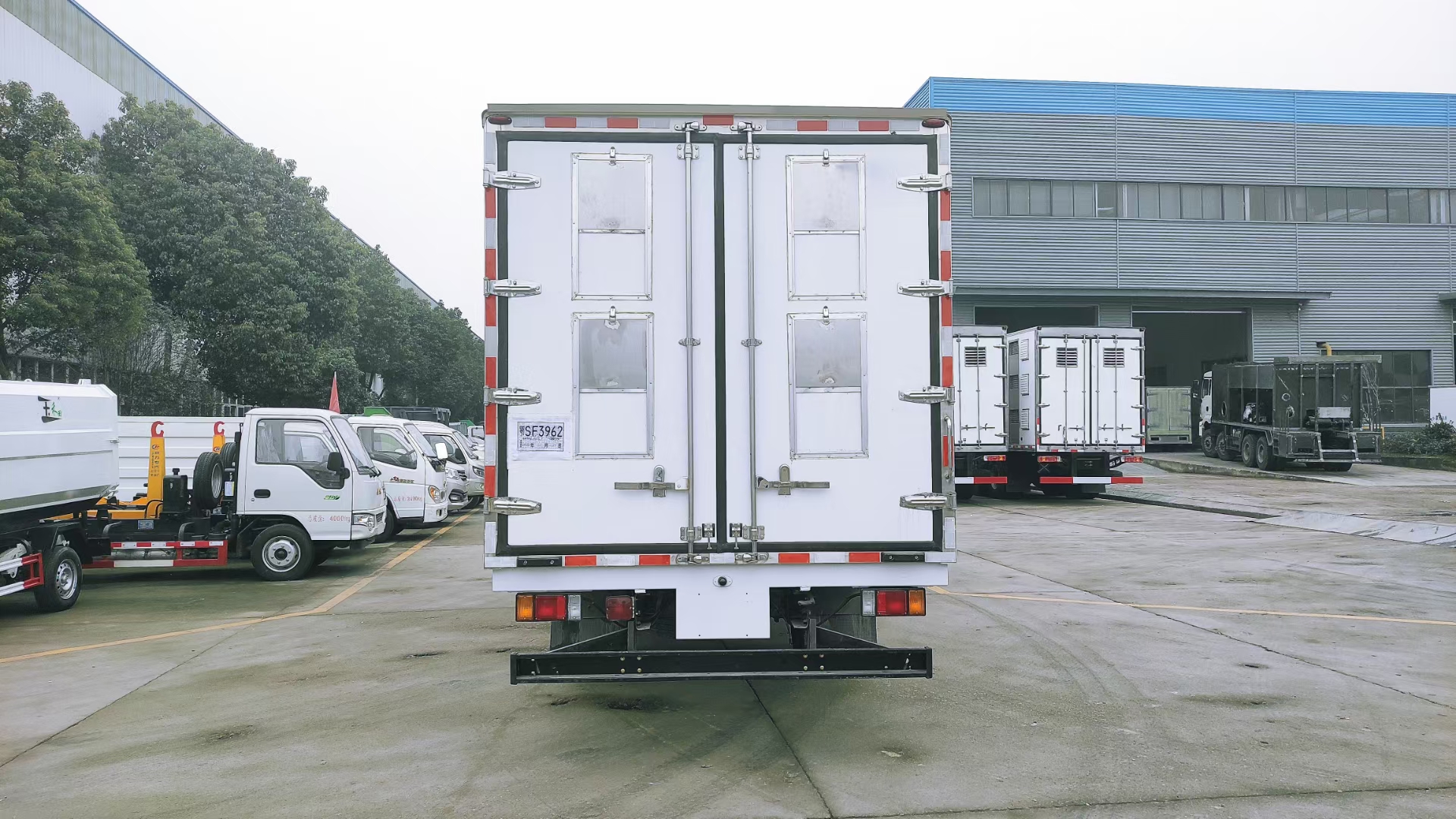

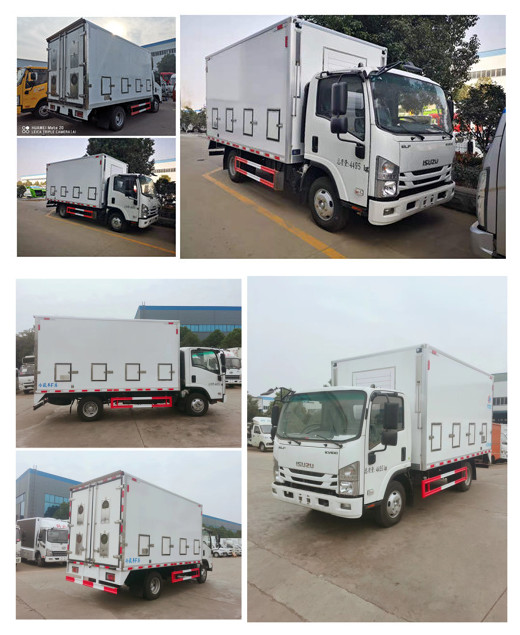

More pictures of ISUZU brand 600P day old chicks transported truck is as below.
HOT SALE! Customized ISUZU 600P babychicks transported van turck for sale
Day old chicks vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
