Customized FOTON 4*2 6.6m length refrigerated truck for PER
2023-11-23 21:41:57   source:www.trucksinchina.com     clicks :



Customized FOTON AUMARK 4*2 35cbm length refrigerated truck for PERU

Customized FOTON AUMARK 4*2 LHD 6.6m length refrigerated truck, adopts FOTON AUMARK EST-M 2020mm width LHD one row and a half driver cab, 5150mm wheelbase, ISB220 40 Euro 4 diesel engine, fastgear 8 speed manual gearbox, 5.5T front axle/10T rear axle, 10.00R20 rail tires, air cut braking, manual air conditioner, etc.

The dimension(L*W*H) of refrigerated van box is 6600*2300*2300(mm)’ while the overall dimension(L*W*H) of FOTON AUMARK 220hp diesel refrigerated truck is 9110,9410×2470,2520×3830(mm), Clients choose to install USA CARRIER brand or THERMO KING brand refrigerated truck, the lowest temperature is up to -15 degree.

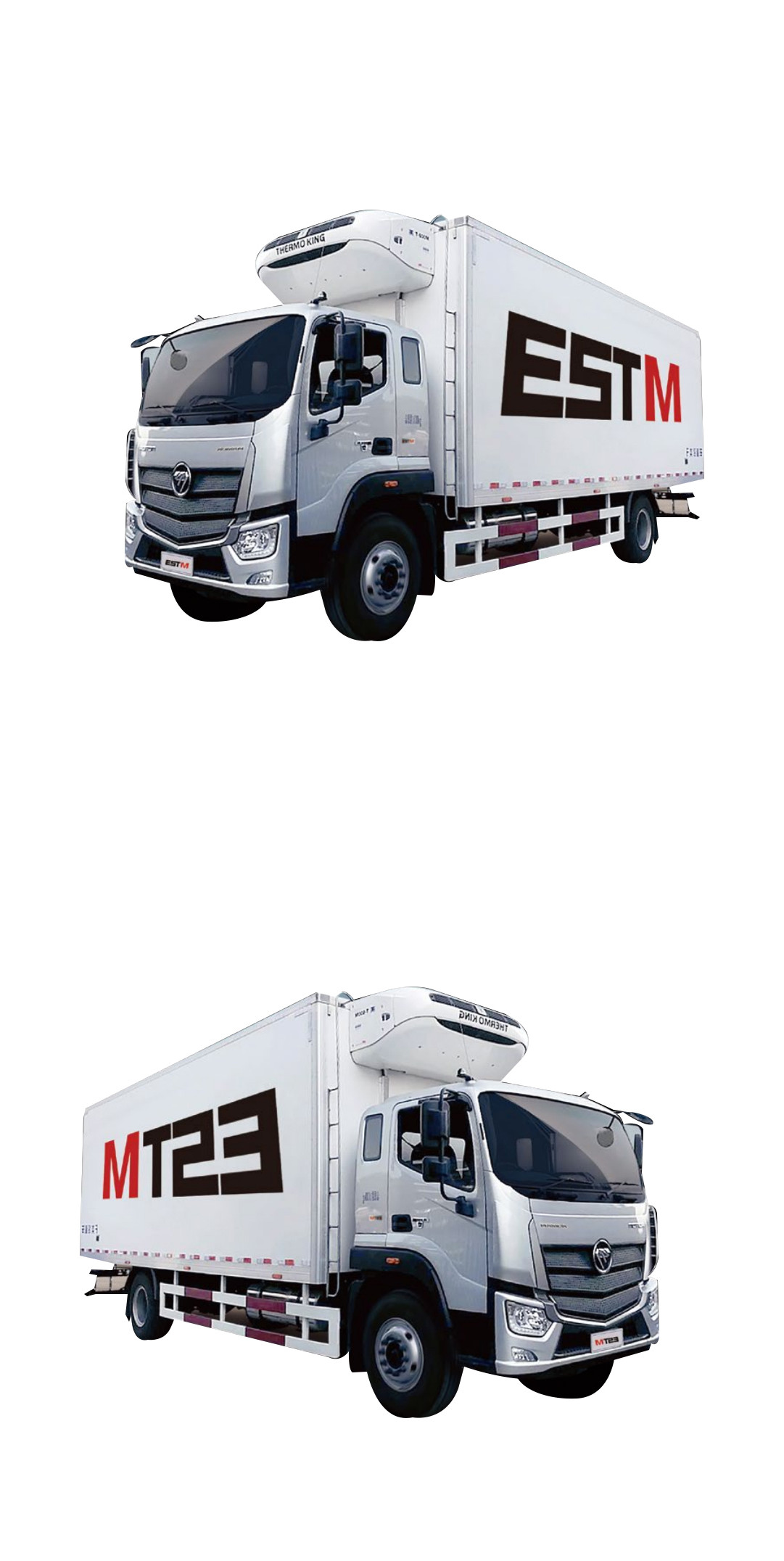

More pictures of FOTON AUMARK 35cbm 45yards refrigerated truck is as below.

HOT SALE! FOTON 35CBM cold van box for sale

Main technical parameters of FOTON AUMARK 4*2 LHD 6T refrigerated truck is as below.

ItemsDescriptionsSpecifications and Types
General Truck Name FOTON AUMARK 4*2 LHD diesel refrigerated truck for sale
Drive Type 4*2 LHD
Total mass(kgs)15795
Curb mass(kgs)7995
Rated mass(kgs)7605
Real Loading capacity(kgs)10T-15T
Overall Dimensions (mm)9410×2470,2520×3830(mm) (mm)
Driver cabFOTON AUMARK 2020mm width one row and a half driver cab with 3 seats(driver cab included)
EngineEngine Model ISB 220 40
Engine Brand DONGFENG CUMMINS
Fuel Type Diesel
Rated power(KW/hp)162KW/220hp
Cylinders nos.6 cylinders
Maximum rotational speed(r/min)2500
Emission Standard Euro 4
Capacity (cc) 5900
Chassis Chassis BrandFOTON
Tire Specification 10.00R20 (RADIAL)
Wheelbase (mm) 5150
Axle No. 2
Front/Rear axle5.5ton front axle/10ton rear axle
Steering WheelLeft hand drive
Gear Box Fastgear 8 speed gearbox, manual
Brake Air brake with power steering
Air-conditionerManual air conditioner
Cold RoomBox inner dimension(mm)6600*2300*2300
Box SideExterior and interior with FRP(fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
Box FloorBaseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
DoorsFrame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
Refrigerator UnitRefrigeration unitChoose high quality USA Carrier brand/THERMO KING vehicle-powered reefer unit (reefer unit model: C-700), the lowest temperature up to -15 degree, adjusted at the driver cab).


Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years' experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
