Customized HOWO 266hp diesel 10cbm mobile asphalt tanker vehicle for sale
SINO TRUK HOWO 4*2 LHD 266hp diesel asphalt tanker truck for sale, Customized SINO TRUK HOWO 4*2 LHD 266hp diesel 10cbm asphalt tanker truck, adopts HW76 new face driver cab, 4600mm wheelbase, HW13710 manual gearbox, HF7 7tons front axle/ST16 16tons rear axle, 295/80R22.5 tires, etc.
The devices of SINO TRUK HOWO 4*2 LHD 226hp diesel intelligent type 10cbm asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).
2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.
3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 36 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, spreading amount: 0.25-3.5L/㎡;
7, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.
Main technical parameters of SINO TRUK HOWO 4*2 LHD intelligent type asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main technical parameters | |||
| Product name | CLW5160GLQZ5 asphalt spreading truck for sale | ||
| Total mass(Kg) | 16000 | Tanker volume(m3) | 6.65 |
| Rated mass(Kg) | 5710,5645 | Overall dimension(L*W*H)(mm) | 8335×2480×3050 |
| Curb mass(Kg) | 10160 | Driver seated person | 2,3 |
| Approach/departure angle(°) | 19/13 | Front/rear suspension(mm) | 1430/2405 |
| Axle nos. | 2 | Wheelbase(mm) | 4500 |
| Axle load(Kg) | 5600/10400 | Max speed(Km/h) | 101 |
| Chassis main parameters | |||
| Chassis model | ZZ1167 | Manufacturer | SINO TRUK COMPANY |
| Approach/departure angle(°) | 19/16 | Tires specification | 295/80R22.5 tires |
| Steel spring | 11/9+8,3/9+8,3/3+2,3/- | Front tread(mm) | 1930,1960,2045 |
| Fuel type | diesel | Rear tread(mm) | 1800,1860,1860 |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | displacement(ml) | Rated power(Kw) |
| WD615.62 | SINO TRUK | 9726 | 196 |
Performance parameter of SINO TRUK HOWO 10cbm asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
- Truck model: CLW5185GLQZ3
- Total mass: 18000kg
- Curb mass: 9180kg
- Overall dimension(L*W*H):8160×2500×3060mm
- Spreading width: 4500mm
- Distance between nozzles: 125mm
- Asphalt spreading amount: 0.2～3.5L/m2
- Working speed:1.5--20km/h
- Heating way: Italian imported burner heating G20(200,000 Kilocalorie/hour)
- Spreading medium: emulsified asphalt, hot asphalt, SBS BS modified pitch, modified emulsified asphalt
- Spreading inaccuracy：±2%

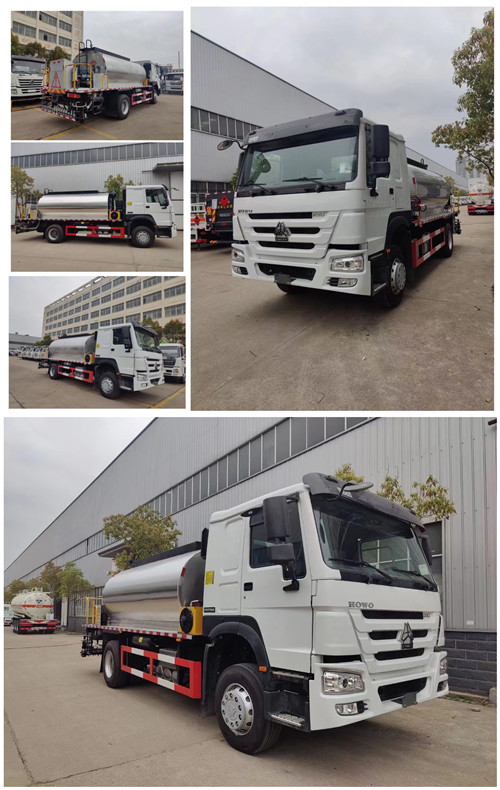

More pictures of SINO TRUK HOWO 4*2 LHD 10,000Liters asphalt tanker truck is as below.
HOT SALE! HOWO brand 4*2 10cbm asphalt tanker truck for sale
The emulsified asphalt distributor truck is also called asphalt paver, asphalt sprayer truck, bitumen sprayer truck, asphalt distributor truck, asphalt bitumen tank truck, road sealer truck, asphalt truck, etc. The liquid bitumen sprayer truck is mainly used to transport asphalt and distribut it for sealing the road.
The asphalt distributor trucks manufactured by Chengli Special Automobile Co., Ltd. adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.Our asphalt sparyer truck for sale adopt special chassis and Italy imported burner. It has many advantages.
