customized HOWO 6*4 LHD 340hp Euro 4 20cbm dump tipper truck for Philippines
Customized SINO TRUK HOWO 6*4 LHD 340hp dump tipper truck, adopts SINO TRUK HOWO HW76 new face 6*4 LHD driver cab, 3825+1350mm wheelbase, D10.34-40 340hp diesel Euro 4 engine, HW19710 10 speed manual gearbox, HW50 PTO, HF9 9T Front axle/HC16 16T double rear axles, high bumper(metal material), 12.00R20 rail tires, 400L oil tanker, etc.
The tipper box body dimension(L*W*H): 5800,5600×2300×1500(mm); 6mm thickness for side steel plate and 8mm thickness for bottom plate. The volume is 20cbm.
main technical parameters of SINO TRUK HOWO 6*4 LHD dump tipper truck is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | SINO TRUK HOWO 6*4 LHD dump truck for sale |
| Drive Type | 6*4, LHD | |
| Loading capacity | 20,000KGS-25,000KGS | |
| Gross Vehicle Weight(kg) | 25000 | |
| Rated weight(kgs) | 12430 | |
| CurbWeight (kg) | 12440 | |
| Overall Dimensions L*W*H(mm) | 8545×2496×3280,3450 (mm) | |
| Dump tipper box dimension(L*W*H) | 5400×2300×1000(mm) | |
| Engine | Engine Model | D10.34-40 |
| Fuel Type | Diesel | |
| Power | 249KW/340HP | |
| Emission Standard | Euro Ⅳ | |
| Displacement(ml) | 9726 | |
| Chassis | Chassis Brand | SINO TRUK HOWO |
| Drive type | 6*4 LHD | |
| Front/Rear Axle Load(KG) | 7000/18000(double axles) | |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 rail tires | |
| Wheelbase (mm) | 3825+1350mm | |
| Axle No. loading capacity | Front HF9 9T /Rear HC16 16T double axles | |
| Gear Box | HW19710 10 speed gearbox, manual | |
| PTO | HW50 PTO | |
| Steering Gear | ZF8118 | |
| Air Conditional | Yes, original air conditioner, | |
| Front/rear suspension(mm) | 1500/1870(mm) | |
| Leaf Spring No. | 10/12 | |
| Driver cab | SINO TRUK HOWO HW76 new face head | |
| Tipping system | Box inner dimension(mm) | 5600/5800*2300*1500(mm) |
| Box material | Q345 Carbon steel,side 6mm,bottom 8mm | |
| Dump box body shape | Rectangular box shape | |
| Hydraulic cylinder no.(set) | Single one | |
| Hydraulic cylinder position | Front installed hydraulic cylinder #137 | |
| Discharge type | Rear tipping | |
| Remark | Clients choose to install top mounted hydraulic environmental protection cover. | |

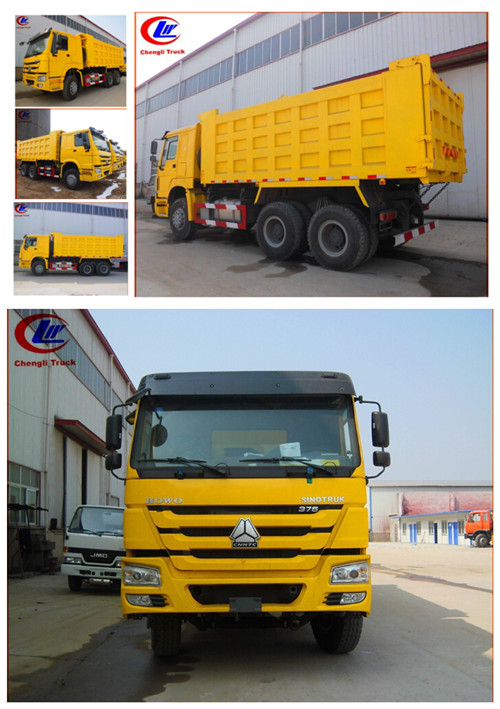

More pictures of SINO TRUK HOWO 20CBM dump tipper truck for Philippines is as below.
HOT SALE! SINO TRUK HOWO 6*4 LHD 340hp diesel Euro 4 20cbm DUMP TRUCK for Philippines
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
