customized Dongfeng 5T XCMG telescopic crane mounted on cargo truck for Nigeria
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
Customzied Dongfeng 4*2 LHD 190hp diesel mobile cargo truck with crane for Nigerian clients is as below.
Dongfeng 153 4*2 LHD cargo truck with crane, adopts DOngfeng 153 one row and a half driver cab, B190 33 190hp diesel engine, 4700mm wheelbase, little 8 speed manual gearbox, 5T front axle/10T rear axle, 10.00R20 rail tires, power steering+ air cut braking, etc.
The overall dimension (L*W*H) of dongfeng 153 truck with crane is 9000*2490*3600(mm), while the cargo body box dimension(L*W*H) is 5800*2300*600(mm). Clients choose to install XCMG brand 5T 3 sections telescopic crane boom.( lifting height: 10.5m; working radius: 8.7m).

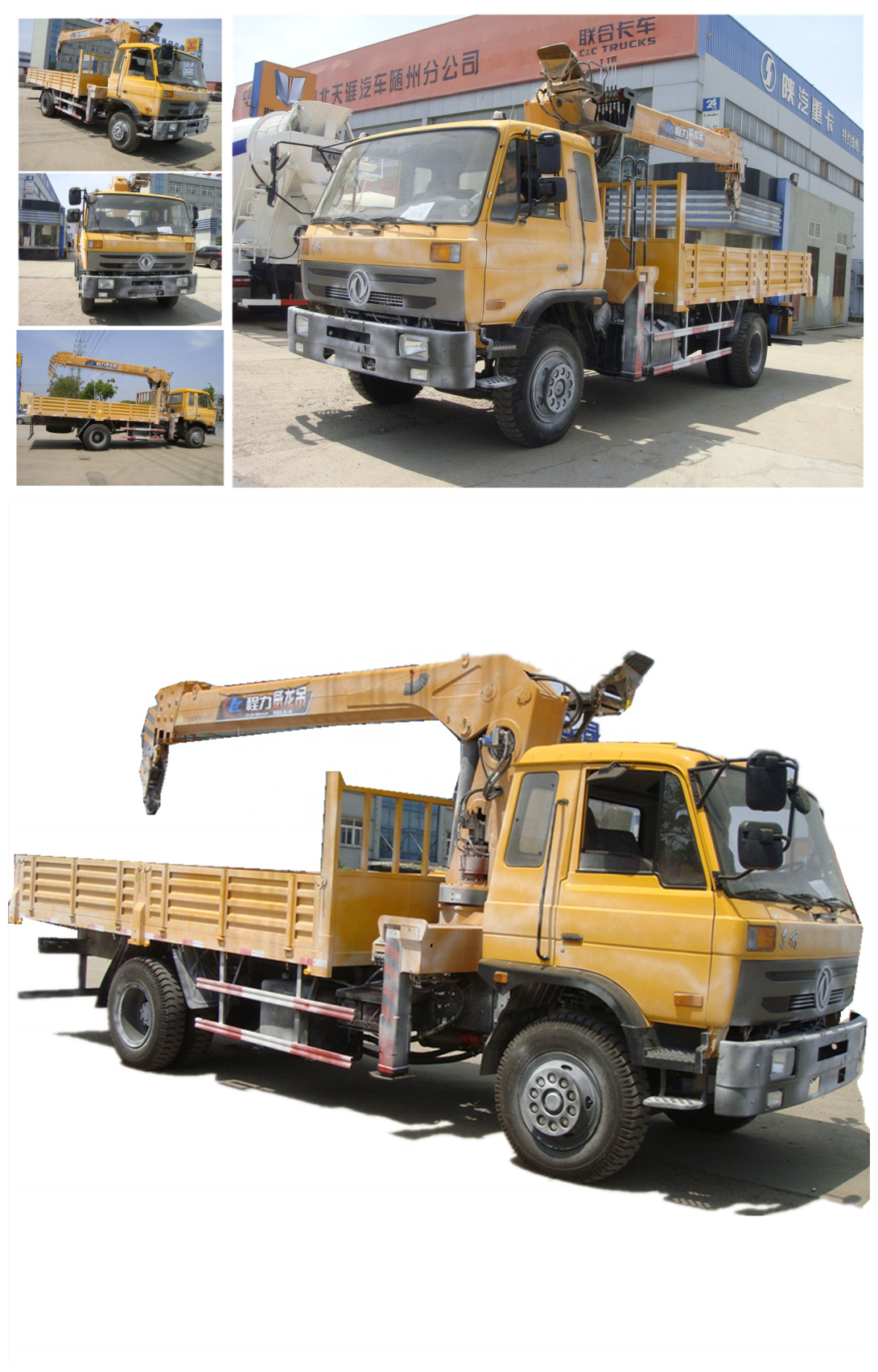

More pictures of Dongfeng 4*2 LHD 5T cargo truck with crane is as below.
HOT SALE! dongfeng 4*2 LHD 5T cargo truck with crane boom for sale
Main technical parameters of dongfeng 5tons XCMG crane boom on cargo truck is as below.
| Product name | Dongfeng 153 LHD 5T telescopic crane mounted on truck for sale (CLW5161JSQT3) | |
| Chassis type | EQ5160 | |
| Parameters | Overall dimension length/width/height (mm) | 9000*2490*3600 |
| Cargo body dimension (L*W*H)(mm) | 5800*2300*600 | |
| GVW(kg) | 15800 (Kg) | |
| Kerb Mass(kg) | 8105 (Kg) | |
| Rated mass(kg) | 7500(Kg) | |
| Approach angle/ Departure angle(mm) | 32/18 (°) | |
| Front suspension/rear suspension(mm) | 1250/2650 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | B190 33 |
| Displacement/Power(kw) | 5900ml/140KW/190hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 6-in-line inter-cooling; | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4700 | |
| Tread(front/rear) | 1940/1860 (mm) | |
| Transmission | Little 8 speed manual gearbox, | |
| Braking system | Air braking | |
| Cab | Dongfeng 153 one row and a half driver cab | |
| Number of spring axle(front/rear) | 9/10+8 | |
| Tire Type | 10.00R20 tires | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5800*2300*600 |
| Material | Carbon steel | |
| Side sheet thickness | 1.5mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG 5tons 3sections telescopic crane boom | |
| Lifting height | 10.5m | |
| Working radius | 8.7m | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
