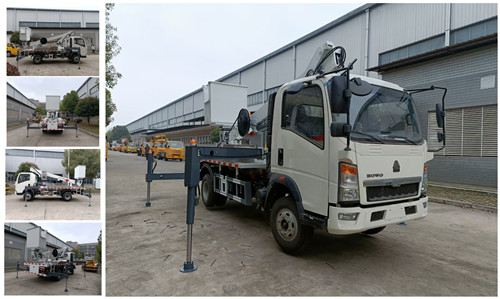

Good price HOWO 4*2 LHD 16M telescopic aerial working platform truck
Customized SINO TRUK HOWO 4*2 LHD 16M telescopic aerial working platform truck for sale, adopts SINO TRUK HOWO 1880mm4*2 LHD single row driver cab, 3360mm wheelbase, YN4102QBZL 116hp diesel engine, 2.4T front axle/4.2T rear axle, WLY646 6 speed gearbox, 7.00R16 rail tires,
The devices of the HOWO brand telescopic aerial working platform truck adopts 3 sections quadrilateral telescopic crane boom, the max working range is 9.1m, the max working height is 16m; the working range is 4.4m at the max working height, 360°full rotation; front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm.the rated loading capacity of the high altitude bucket ≤200㎏; while the dimension of the bucket is 1100X650X1150 (mm). Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit.
HOT SALE! HOWO 16m aerial working platform truck for sale
main technical parameters of HOWO brand 4*2 LHD 16m hydraulic bucket trck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Whole Truck Main Technical Parameter ( CLW5040JGKZ3) | |||
| Product Name | SINO TRUK HOWO brand 4*2 LHD telescopic overhead working truck for sale(16m) | ||
| Curb Weight (kg) | 4300 (Kg) | ||
| Working Height(m) | 16m | ||
| Axle No. | 2 | ||
| Chassis Technical Parameter | |||
| Chassis Model | ZZ1047 | ||
| Chassis Brand | SINO TRUK HOWO brand | ||
| App./ Dep. Angle(º) | 18/15(°) | ||
| Leaf Spring No. | ,11/9+7 | ||
| Fuel Type | Diesel | ||
| Drive Type | 4x2 | ||
| Steering Type | Power steering | ||
| Brake | Air cut brake | ||
| Max speed(km/h) | 95km | ||
| Engine Technical Parameter | |||
| Engine Model | YN4102QBZL | ||
| Displacement ( ml ) | 3760 ml | ||
| Work platform parameter | 1. the rated loading capacity of the high altitude bucket ≤200㎏, while the dimension of the bucket is 1100X650X1150 (mm). | ||
| 2, 3 sections quadrilateral telescopic crane boom | |||
| 3, max working range is 9.1m. | |||
| 4, max working height is 16m | |||
| 5, working range is 4.4m at the max working height | |||
| 6, 360°full rotation. | |||
| 7, front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm | |||
| 8, Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit. | |||
| 9 the truck color upon request, free to paint company logo | |||
We are a professional manufacturer of aerial platform trucks in china, and we can provide our customers various configuration trucks with different prices. Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window and other high aerial works.
Working height : 6m,8m,10m,12m,14m,16m,18m,20m,22m,24m.
Aerial platform truck also called articulated boom lift,truck mounted aerial platform, aerial work platform,hydraulic beam lifter, bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift, telescopic platform truck , aerial working platform , truck mounted aerial working platform.
Aerial platform truck superstructured by Chengli Special Automobile Co., Ltd. is as below.
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level
and the other at the level of the basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
