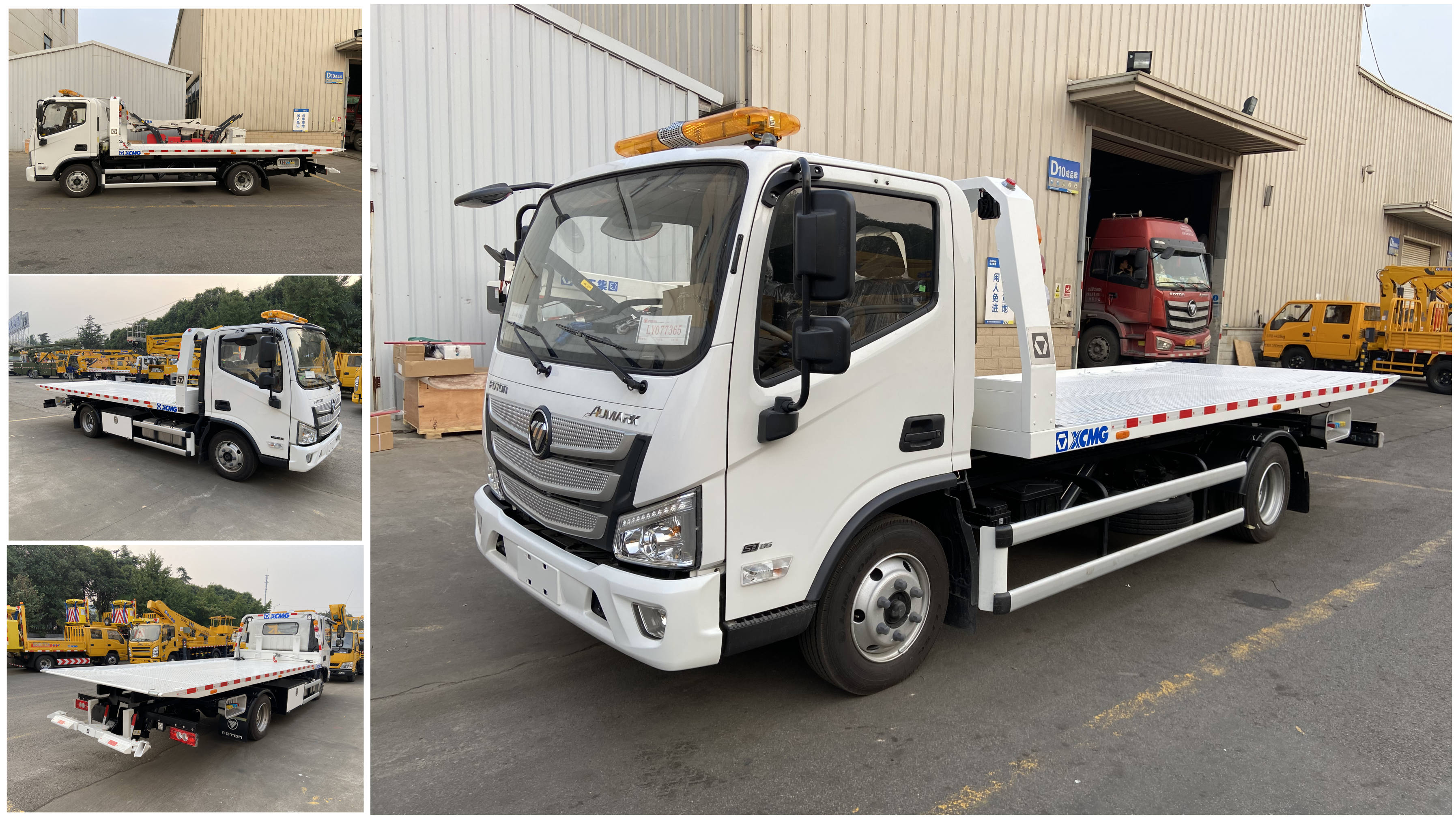

FOTON AUMARK CUMMINS flatbed road recovery breakdown towing truck 4T loading capacity for sale
HOT SALE! FOTON AUMARK 4*2 LHD flatbed type wrecker towing truck is as below.
HOT SALE! FOTON AUMARK 4*2 LHD cummins diesel engine 4T loading capacity flatbed wrecker towing vehicle
flatbed tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch,tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The rollback tow truck can hoist, lift, draw and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
As a china tow truck manufacturers , our rescue vehicle can meet all your demand. Right hand rollback tow truck, left hand drive rollback tow truck, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker types, we produce plat form tow truck, under lift wrecker truck, rotator tow truck, full landing rollback tow truck, double flatbed wrecker truck, etc.
the technical advantages of CLW Brand wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1. small angle of flatbed to ground, easy for broken car to be on it.
2. Thick good quality checker plate platform, long service time, skid-proof
3. Adpot Italy imported special balance valve.
4. Operate on both sides of the truck and remote is available.
main technical parameters of FOTON AUMARK 4*2 LHD 141hp diesel 4T wrecker towing vehicle is as below.
| Vehicle model | AUMARK-S38 | |
| Cabin | Single row/W2060/left rudder | |
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6730×2138×2440 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3528 |
| Gross vehicle weight（kg） | 11995 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 105 |
ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6.5T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 8.25R20 14PR) | |
| Upload parameters | Lifting system | Maximum lifting weight（kg） | 1800 | |
| Maximum lifting capacity at full extension（kg） | 1330 | |||
| After Joe distance (mm) | 2540 | |||
| Effective length of bracket (mm) | 1640 | |||
| Support arm telescopic stroke | 1340 | |||
| Telescopic stroke of bracket (mm) | 7 | |||
| The lower Angle of the bracket | -9.5 | |||
| The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm) | 550 | |||
| platform | Inner Length (mm) | 5550 | ||
| Inner Width (mm) | 2220 | |||
| Minimum inclination Angle of platform | 8 | |||
| Platform working stroke (mm) | 2700 | |||
| Platform height above ground (mm) | 1070 | |||
| Maximum bearing capacity of plate mechanism (kg) | 4000 | |||
| winch | Quantity | 1 | ||
| Rated traction per unit (kN) | 40 | |||
| Diameter of wire rope (mm) | φ11 | |||
| Length of wire rope (m) | 25 | |||
| Capstan Diameter (mm) | φ110 | |||
| Minimum linear speed of wire rope (m/min) | 5 | |||
| Basaic configuration | Hydraulic winch | Hydraulic control system | ||
| L-shaped tow arm | Hydraulic lock | |||
| High strength side panels | Alarm light (mounted on the gantry frame, removable | |||
| Lighting alarm light system | Lashing rope: 4 pieces | |||
| Training wheels | Take power. | |||
