customized FOTON AUMARK 5,000Liters water tanker transported vehicle for sale

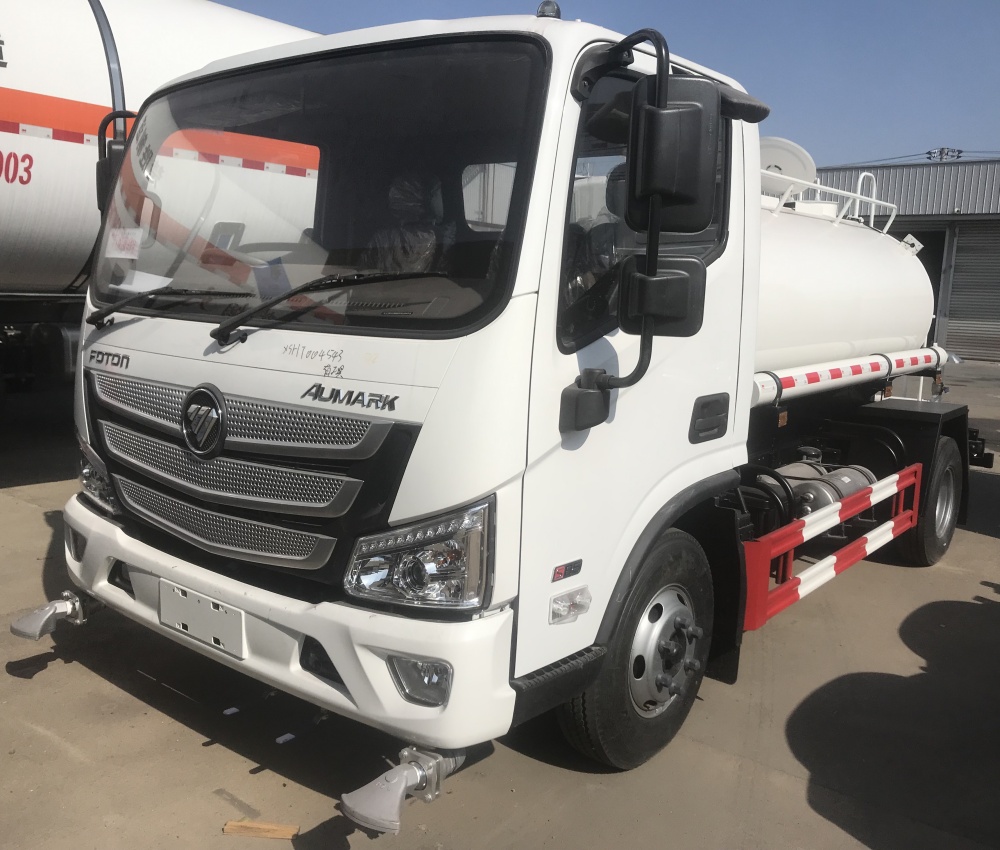

More pictures of FOTON AUMARK 4*2 LHD water tanker transported truck is as below.
HOT SALE! FOTON 5,000L water tanker truck
The water truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water carrier truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
1.Tank material of water tanker:
Carbon steel or stainless steel,4mm/5mm/6mm thick for choose.
2. Water pump:
The water truck is installed CLW Famous Brand water pump(suction lift range bigger than 6m).
3. Kind of the sprayer:
Including Front flush, Rear Sprinklers, Side Spray, water monitor install rear working platform.
(water monitor can be adjust to Heavy rain, moderate rain, light rain, mist)
4. Options: Fog connon to spray pesticides and disinfectants.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water truck, water tank, water sprinkling truck and portable water truck, etc. in China since 2004s. With many years' experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply 4*2 water truck, 4*4 water tank, 6*4 water truck, 8*4 water tank, 6*6 water tank, etc. And the water trucks brands includes dongfeng water truck, ISUZU water truck, FAW water tank, Foton water truck, Forland mini water truck, Yuejin water truck, HOWO water truck, North Benz water truck, etc. More information, please feel free to contact with Ms. Anita Deng. And the hot sale line is 0086 13329899995.
main technical parameters of FOTON AUMARK 4*2 LHD water tanker truck is as below
| Vehicle model | AUMARK-T33 | |
| Cabin | Single row/W1800/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×1915×2230 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2100 |
| Gross vehicle weight（kg） | 4485 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 |
| ENGINE | Model | BJ493ZLQV1 |
| Emissions standards | EuroⅢ | |
| Displacement（L） | 2.771 | |
| Rated Power（kw/rpm） | 80 | |
| Max torque （N.m/rpm） | 280 | |
| Gearbox | Model | JC5-28 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.0T/6.142 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 7.00R16) | |
| tank | volume | 5m³ |
| Dimensions | Sectional shape: oval | |
| Tank material and thickness | Material and thickness of tank body: Q235B carbon steel, 4mm | |
| Wave breaker | Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm | |
| Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | |
| Discharge port | 1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; | |
| Climb the ladder | Install independent climbing ladder at the end of the tank | |
| Top guard | Install hand guards on both sides of the tank top | |
| Level gauge | The front part of the tank, plexiglass | |
| Tube box | Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints | |
| Water pump | model | Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
| Limited Date | 40m³/h | |
| lift | 45m | |
| Water absorption depth | 6.5m | |
| Spraying device | control method | manual |
| Spray type | Front flush, side spray, back spray | |
| Sprinkler width | not lower than 14m | |
| Spray gun range | not lower than 28m | |
| Work platform | position | Rear of the tank |
