HOT SALE!FOTON AUMARK 12m 14m 16m hydraulic aerial working platform vehicle
2023-11-23 21:41:57   source:www.trucksinchina.com     clicks :


main technical parameters of FOTON AUMARK 4*2 12m 14m 16m high altitude operation vehicle is as below.

Vehicle modelAUMARK-C33
CabinSingle row/W1995/right rudder
Whole vehicle main dimensionsOverall dimensions (LxWxH)mm5875×2030×2230
Wheel base(mm)3360
Weight dataCurb weight(kg)2600
Gross vehicle weight(kg)6495
Persons in cab   3
Whole vehicle main performanceMax. speed(km/h)95
ENGINEModelF3.8s3141
Emissions standardsEuroⅢ
Displacement(L)3.76
Rated Power(kw/rpm)105
Max torque (N.m/rpm)450
GearboxModel6TS55
Front axleType/Mainreducetion ratio2.2T
Rear axleType/Mainreducetion ratio5.5T/4.11
SuspensionFront suspension/Leaf spring number3+1
Rear suspension/Leaf spring number6+7
Brake systemService brakeDrum pneumatic braking
Parking brakeCentral drum brake
Auxiliary brakeEngine exhaust brake
Wheels and tyre size6+1(7.00R16)
Power take-off systemPower is taken by the gearbox and operated in the cab
Work bucketSize 1150×650×1150mm  Rated load  200kg
BoomTwo-section folding arm
Swivel deviceTwo-way 360° continuous rotation
operating systemTwo operating systems of working bucket and turntable
Hydraulic systemElectro-hydraulic control, stepless speed regulation, equipped with emergency pump
Go platformSteel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform
safety devicesInterlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device
Leveling systemBuilt-in combined automatic leveling system
Main operating technical parametersWorking height of bucket12.3m
Maximum working range of working bucket6m
Rated load of working bucket200Kg
Rotation angle±360° continuous
Working range at maximum working height of working bucket3m
Working height when working bucket maximum working range7.3m
Lifting time of working platform80~130s
Swing speed0~2 r/min

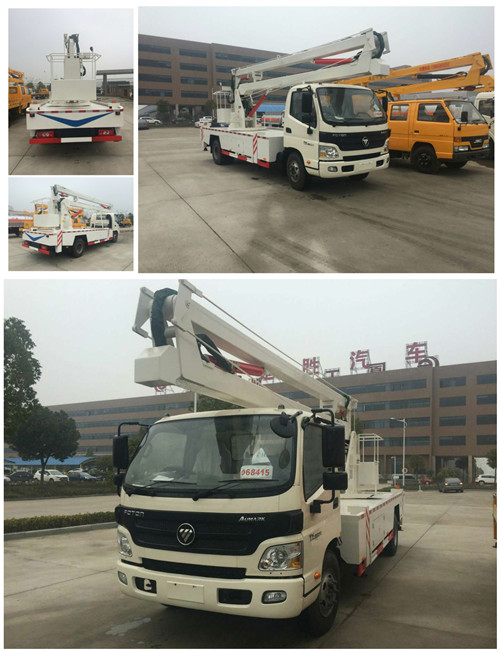

More pictures of FOTON AUMARK 4*2 LHD 12m hydraulic aerial working platform truck is as below.

HOT SALE! FOTON AUMARK 4*2 12m aerial working platform truck
As a professional truck lifting nacelle manufacturer in China, besides veritical aerial platform truck, we also have 360 degree rotate aerial working truck, which include knuckle boom platform truck and telescopic aerial truck.



The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.



Chengli Special Automobile Co.,Ltd as a professional aerial working platform truck supplier in China, the aerial working truck height is from 10 meter to 32 meter. It is mainly used for building construction,  street lamp maintain, plant pruning, power grid maintenance etc. More information, please call 0086 13329899995.
