Customized SINO TRUK HOWO 6*4 LHD dump tipper truck with knuckle crane boom for sale,
HOT SALE! customized SINO TRUK HOWO 6*4 LHD dump truck with knuckle crane adopts SINO TRUK HOWO HW76 new face one row and and a half driver cab, 4325+1350mm wheelbase, WD615.69 336hp/WD615.47 371hp diesel Euro 2 engine, HW19710 10 speed manual gearbox, HF9 9T front axle/HC16 16T 16T rear axles, ZF8118 steering wheel, 12.00R20 rail tires, 300L oil tanker, with air conditioner, etc.
The overall dimension of SINO TRUK HOWO 6*4 LHD dump truck with knuckle crane is 9430×2500×3850(mm); the dump tipper box dimension(L*W*H): 5300×2300×1500(mm). Client chooses to install CLW brand 6.3T knuckle crane boom (4 sections, lifting height: 12.9m; the working radius: 10m).

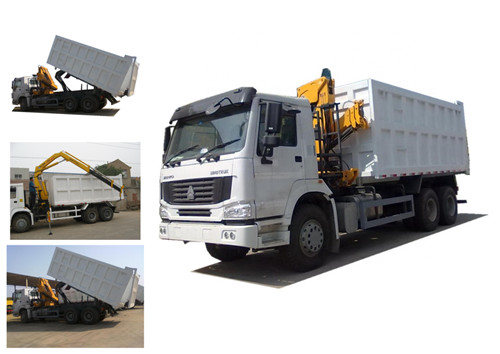

More pictures of SINO TRUK HOWO 6*4 LHD dump truck with knuckle crane boom manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! SINO TRUK HOWO 6*4 LHD dump truck with knuckle crane boom for sale
Main technical parameters of SINO TRUK HOWO 6*4 LHD dump tipper truck with knuckle crane boom is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | SINO TRUK HOWO 6*4 LHD diesel dump tipper truck with knuckle crane boom for sale |
| Drive Type | 6*4 , LHD | |
| Gross Vehicle Weight(kg) | 24700kgs | |
| Curb Weight (kg) | 14200kgs | |
| Overall Dimensions L*W*H(mm) | 9430×2500×3850 | |
| Engine | Engine Model | WD615.69/WD615.47 |
| Fuel Type | Diesel | |
| Power | 336hp/371hp | |
| Emission Standard | Euro Ⅲ | |
| Displacement(ml) | 9726 | |
| Chassis | Chassis Brand | SINO TRUK HOWO |
| Front/Rear Axle Load(KG) | 6800/17900 (double axles) | |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 | |
| Wheelbase (mm) | 4325+1350mm | |
| Axle No. | 3 | |
| Gear Box | HW19710 10 speed manual gearbox | |
| Front/rear suspension(mm) | 1500/2070 | |
| Front/rear tread(mm) | 2022; 1830/1830 | |
| Leaf Spring No. | 4/-, | |
| Driver cab | s SINO TRUK HOWO HW76 new face one row and and a half driver cab with original air conditioner | |
| Tipping system | Box inner dimension(mm) | 5300×2300×1500 |
| Box material | Carbon steel,side 5mm,bottom 6mm | |
| Hydraulic cylinder no.(set) | 2 | |
| Hydraulic cylinder position | At the center of the front part | |
| Discharge type | Rear tipping | |
| Crane boom | knuckle crane boom | 6.3T loading capacity knuckle crane boom |
| Sections | 4 sections | |
| lifting height | 12.9m | |
| Working radius | 10m | |
| Installation room | 1m | |
| Curb mass | 2030kgs | |
| Rotation | 360°full rotation |
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
