HOT SALE! FOTON AUMARK 4*2 LHD 3.2T knuckle crane boom mounted on cargo truck for sale

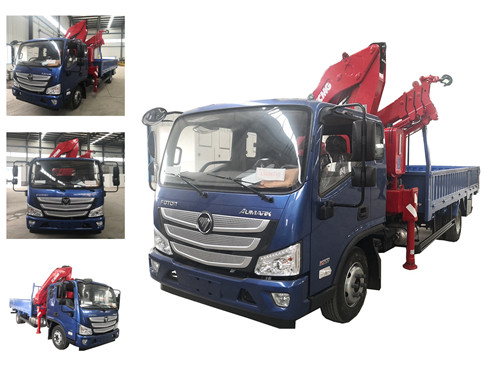

More pictures of FOTON AUMARK 3.2T knuckle crane on cargo truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! FOTON AUMARK 3.2T cargo truck with crane for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
main technical parameters of FOTON AUMARK 4*2 LHD 3.2T knuckle crane boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Vehicle model | AUMARK-S33 | |
| Cabin | Single row/W2060/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5890×2105×2400 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 3210 |
| Gross vehicle weight（kg） | 8275 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 105 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/(L8.25R1614L) | |
| Crane requirements | Type/position | knuckle arm/front |
| Crane | SQ3.2SK2Q | |
| Rotation angle | 360°Full rotation | |
| Sub-frame | Material/plate thickness | Longitudinal beam :Q345/10mm Beam: Q345/8mm |
| Cargo box | size | 4170*2100*400mm |
