Customized ISUZU VC46 6*4 LHD 350hp 10T telescopic crane boom mounted on cargo truck for sale
ISUZU VC46 6*4 LHD 10T telescopic crane boom mounted on cargo truck adopts ISUZU VC46 one row and a half driver cab, 4605+1300mm wheelbase, 6UZ1-TCG40 ISUZU 350hp diesel Euro 4 engine, 9JS150TA-B feastgear 9 speed manual gearbox, 11.00R20 16PR tires, air conditioner, air cut braking, etc.
The overall dimension(L*W*H) of ISUZU VC46 10tons mobile truck with crane is 10135*2465*3550(mm); while the cargo body dimension(L*W*H) of ISUZU 10T cargo truck with crane is 6500*2300*550(mm); Clients choose to install XCMG brand/CLW brand 8tons/10tons telescopic/knuckle crane boom.
The specification of ISUZU VC46 6*4 LHD 350hp diesel 10T mobile truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Product name | ISUZU 6*4 10tons telescopic crane boom mounted on cargo truck for sale | |
| Chassis type | QL1250 | |
| Parameters | Overall dimension length/width/height (mm) | 10135*2465*3550 |
| Cargo body dimension (L*W*H)(mm) | 6500*2300*550 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 13900 (Kg) | |
| Approach angle/ Departure angle(mm) | 17/12 (°) | |
| Front suspension/rear suspension(mm) | 1370/2210 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | 6UZ1-TCG40 |
| Displacement/Power(kw) | 9839ml/350hp | |
| Manufacturer | ISUZU | |
| Chassis | Drive Type | 6*4 LHD |
| Wheelbase(mm) | 4605+1300mm | |
| Tread(front/rear) | 2060; 1855/1855 (mm) | |
| Transmission | 9JS150TA-B FASTGEAR 9 speed manualgearbox | |
| Braking system | Air braking | |
| Cab | ISUZU VC46 | |
| Number of spring axle(front/rear) | 7/11 | |
| Tire Type | 11.00R20 16PR rail tires | |
| Air-condition | Yes | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body box dimension | 6500*2300*550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 10T 4sections knuckle crane boom | |
| Lifting mass(kgs) | 10,000kgs | |
| Lifting height(m) | 15.6m | |
| Working radius | 13.5m | |
| Remark | Full hydraulic and full rotational | |
| The color of the whole truck is upon request. | ||

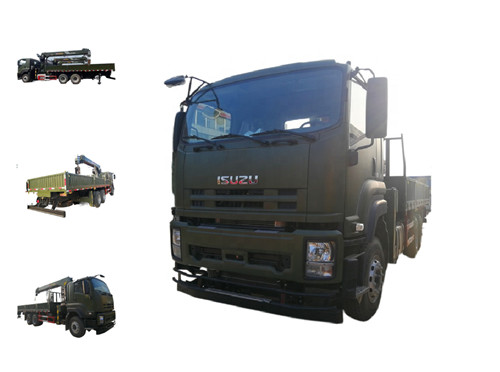

More pictures of ISUZU VC46 10T telescopic crane boom mounted on cargo truck is as below.
HOT SALE!10T ISUZU 6*4 LHD 350hp diesel cargo truck with crane for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
