Chengli Special Automobile Co., Ltd. could supply LPG gas trailers at home and all over the world. We can also supply ASME LPG gas truck, LPG gas trailer, LPG gas storage tank, etc.
Our company is specialized in produce LPG trailer for several years, we can produce the size of semi trailer as customs’ require. if you want to know more about our cargo semi trailer please do not hesitate to contact me. any questions about semi trailer will be highly appreciated.
We can provide other tanker trailers, like 2 axles or 3 axles, carbon steel, aluminum alloy, stainless steel material liquid tanker trailer, bulk cement tanker trailer, full trailer, tank container etc.
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% deposit T/T
Our company offer Transportation insurance for customer. To ensure customer’s prdocts arrival at the destination new and safe.
| Item | Unit | Main parameters |

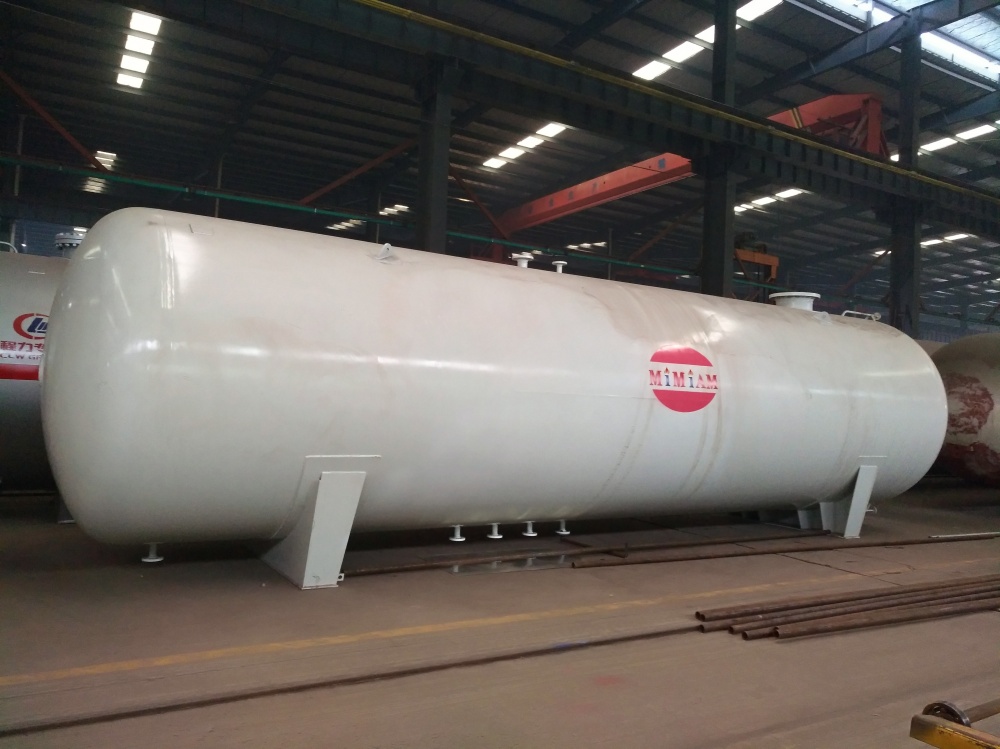

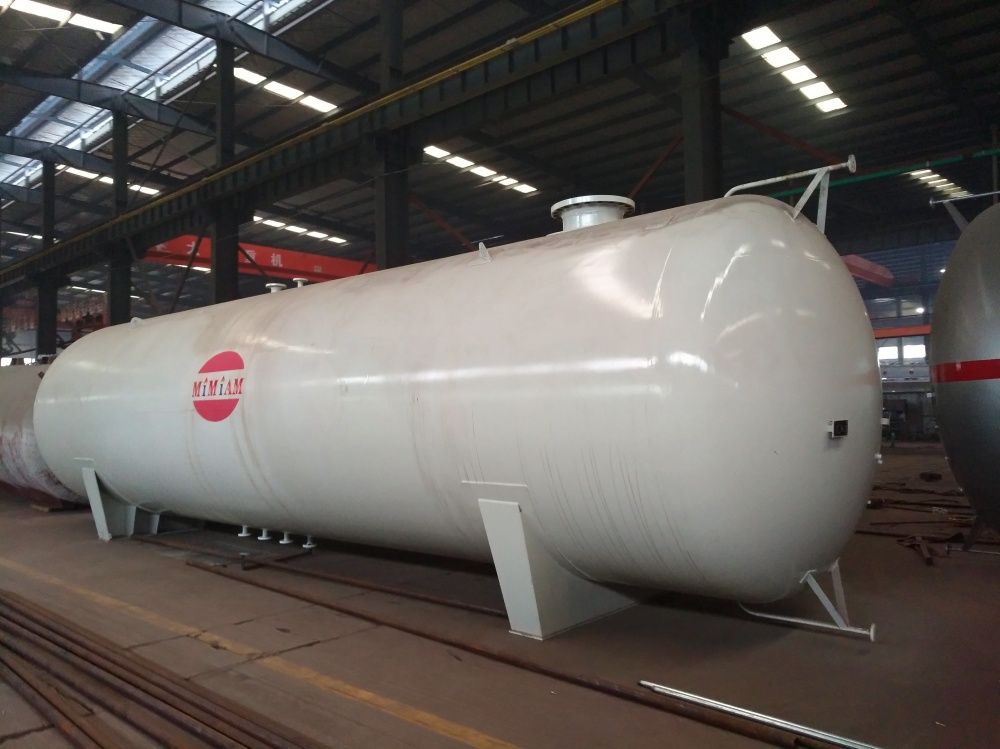

| Product name | LPG gas storage tank（60000L） | |
| Product model | CLG2700-60 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 10962*2728*3318 |
| Tank dimension(inner diameter*thickness*length) | mm | DN2700*14*10962 |
| Tank volume | m3 | 60 |
| Tank thickness | mm | 14 |
| End heads thickness | mm | 16 |
| Curb mass | kg | 12750 |
| Loading capacity | Kg | 23940 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R、16Mnlll | |
| Standard |
<
|
|
| Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG gas trailer, LPG gas truck, LPG gas storage tank, etc. in China. With many years’ experience in supplying, Chengli Special Automobile Co., Ltd. could supply 2 axles LPG gas trailers, 3 axles bulk LPG gas trailers, LPG gas storage tanks from 5000L to 120000L, LPG gas delivery trucks, LPG gas dispenser truck, etc.More information, please feel free to contact with Ms. Anita Deng. And the hot sale line is 0086 13886878855.
