HOWO 4*2 RHD 14cbm garbage compactor truck for Mozambique
2023-11-23 21:41:57   source:www.trucksinchina.com     clicks :



Customized HOWO 4*2 RHD 14cbm garbage compactor truck for Mozambique

CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.

Chengli brand Garbage compactor truck advantage as below.

1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control

2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety

3 Cheap price , one year warranty

4 Garbage bin lifting system could design as customer’s requirement .

5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

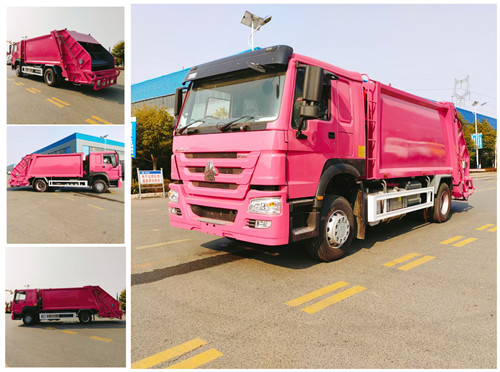

One unit of SINO TRUK HOWO 4*2 RHD 266hp diesel 14cbm compacted garbage truck customized for client from Africa. Look at the finished pictures of finished customized HOWO RHD 14cbm compacted garbage truck is as below.

HOT SALE!  SINO TRUK HOWO RHD 14CBM garbage compactor truck for sale
SINO TRUK HOWO 4*2 LHD 4*2 RHD 266hp diesel 14cbm garbage compactor truck adopts SINO TRUK HOWO HW76 new face truck head, 4*2 LHD driving, 4600mm wheelbase, WD615.92 196KW/266hp Euro 2 diesel engine, HW13710 10 manual gearbox,  HF7 7T front axle/ST16 16T rear axle, 295/80R22.5 tires, etc.

The volume of SINO TRUK HOWO RHD 266hp diesel garbage compactor truck is about 14cbm. and with the wastes loading capacity of about 10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.

Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

Main technical parameters of SINO TRUK HOWO 4*2 RHD 14cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. is as below.

1Truck modelSINO TRUK HOWO 4*2 LHD garbage compactor truck
2Truck chassis modelZZZ1167
 3Engine modelWD615.92
4Engine power196KW/266hp
5Engine displacement9726
6Engine brandCummins
7Engine emission standardEuro Ⅲ
8Oil consumption(L/100km)22L
9Max speed90kw/h
10mini turning diameter18m
11Max Gradability25﹪
12Truck wheelbase4600(mm)
13Wastes van volume12-14m3
14Fuel typeDiesel
15Wastes hopper lifting angle≥45°
16Loading and discharging wayOverturning hopper/wastes bins mechanism
17compacting wayBi-directional compression; wastes compacting density≥0.8T/m³
18one working circle time for loading (s)≤22
19one working circle time for discharging (s)≤30
20Overall dimension(L*W*H) (mm) 8765×2500×3300 (mm)
21Curb mass(kgs)8870
22max compressing force≥150KN,
23ColorDifferent color upon request
