| Main parameters | |||

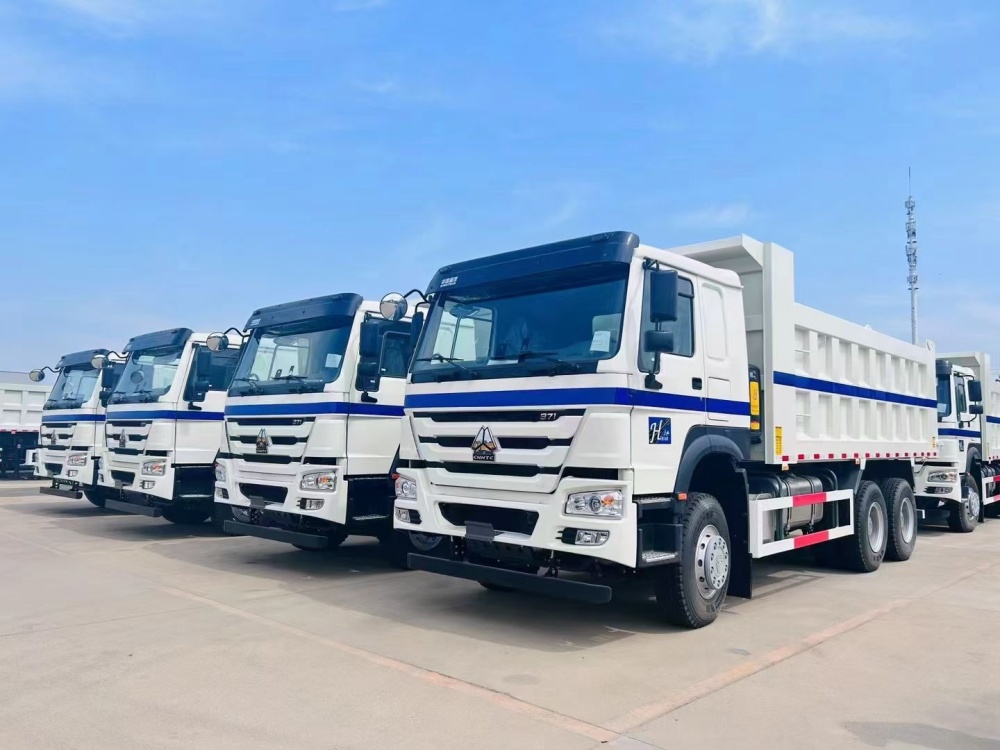

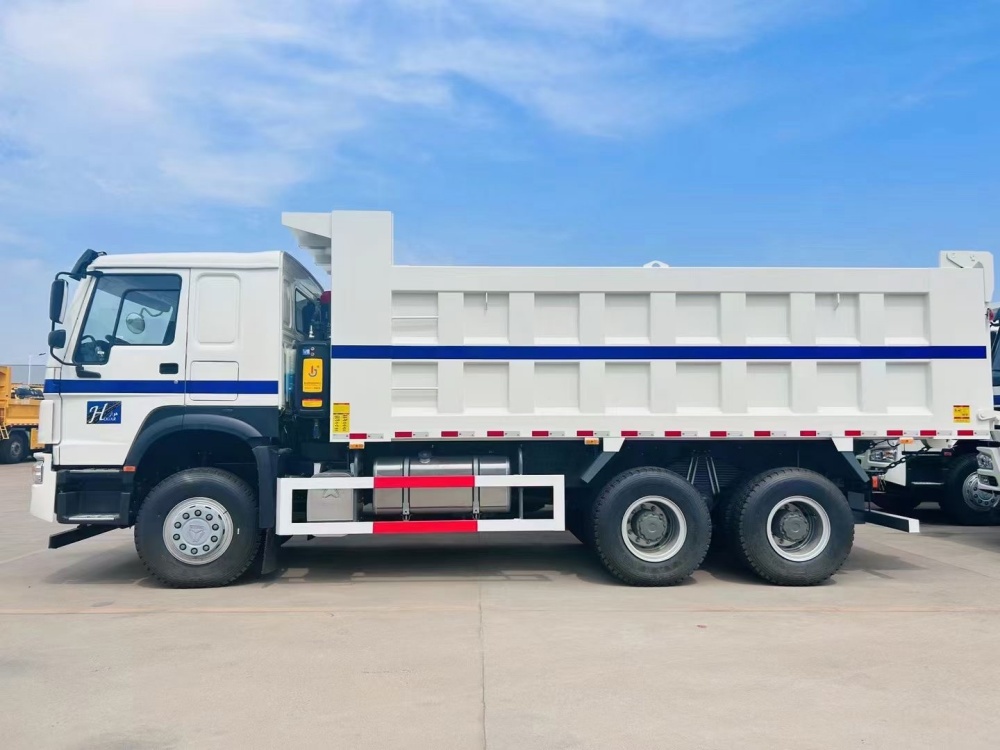

| HOWO 6*4 Euro 2 25ton tipper truck | |||
| Overall dimension | 7835×2496×3170(mm) | Cargo body dimension | 5200×2300×1200(mm) |
| Total mass | 25000(Kg) | Rated mass | 12650,12480(Kg) |
| Curb mass | 12220,12390(Kg) | Seating person | 2(人) |
| Driver cab | HOWO driver cab | Front/rear suspens | 1500/1560(mm) |
| Approach/departure angle | 19/30(°) | Wheelbase(mm) | 3425+1350(mm) |
| Axle load(kg) | 7000/18000(double axles) | Max speed(km/h) | 75(km/h) |
| Axle nos. | 3 | Steel spring | 10/12 |
| Tyre nos. | 10 | Tyre | 12.00R20 |
| Front tread | 2022,2041 | Rear tread： | 1830/1830 |
| Steering | Power steering | Gearbox | HOWO 10 speed transmission |
| Front Axle | 9ton | Rear axle | 10ton wheel reducer rear axles |
| Engine | |||
| Engine model | Manufacturer | Displacement (ml) | Power (kw) |
| WD615.69 | SINO TRUK | 9726 | 247 |
| Engine type | 4 strokes in line, 6 cylinders, inter-cooling, direct injection | ||
| Fuel type | Diesel | Emission standard | Euro 2 |
| Cargo body van main parameters | |||
| Cargo body dimension(L*W*H)(mm) | 5200×2300×1200(mm) | ||
| Material | High quality carbon steel | ||
| Thickness (mm) | 6mm thickness for side sheet and 8mm thickness for bottom sheet | ||
| Cylinders | High quality Double middle cylinders for middle lifting | ||
| Door | Rear door tipping | ||
CLW Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck, tipper, and tipper trailer in China since 2004s. With many years' developing, Chengli Special Automobile Co., Ltd. could supply HOWO dump truck, dongfeng dump truck, FAW dump truck, Forland tipper, ISUZU dump truck, Foton Auman dump truck, tipper trailer, mining dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. And the hot sale line of the dump truck is 0086 13329899995.
