Forland RHD double rows 11m high altitude operation truck is ready for exporting to South America.
This forland RHD double rows 11m bucket truck is designed for the clients from South America. Forland aerial working truck adotps Forland D1695 double rows RHD driver cab, BJ493Q 77hp diesel engine, 3360mm wheebase, Euro 1 emission standard, 5 speed transmission, BJ130 rear axle, 6.50-16 tyre, power steering and original air-conditioner, etc.

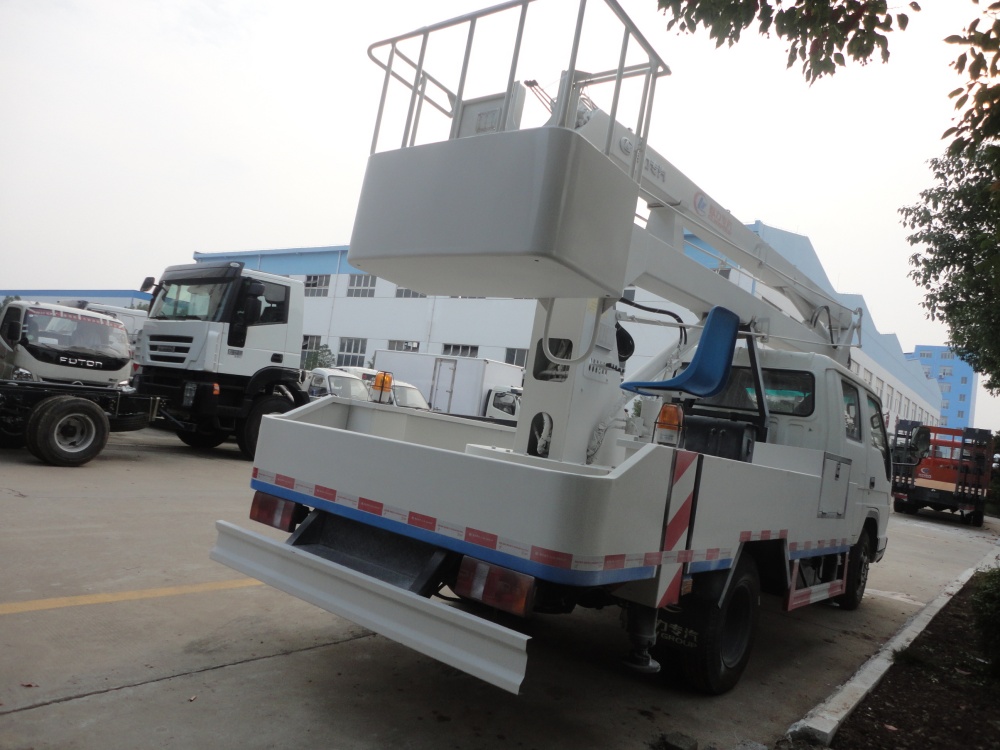

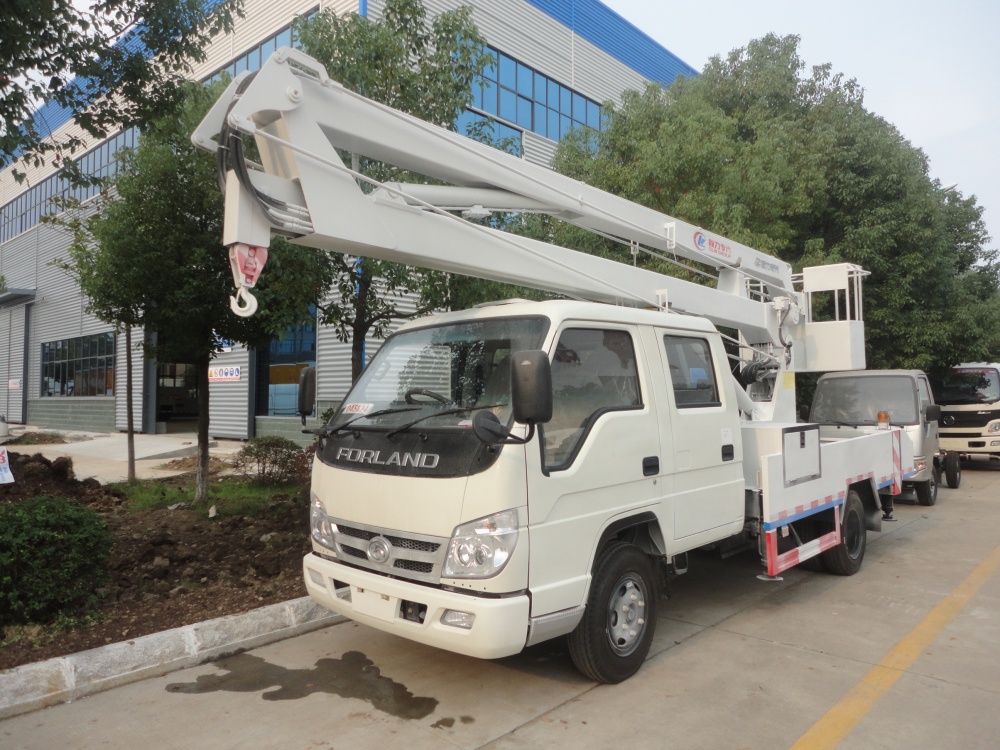

More pictures of forland RHD 11m hydraulic bucket truck as below.
| Whole Truck Main Technical Parameter | ||||
| Product Name | Forland RHD double rows 11m high altitude operation truck for sale | Gross Vehicle Weight (kg) | Approx 4325 | |
| Curb Weight (kg) | 4000 | Overall Dimension(mm) | 7400x1980x3100 | |
| Working Height(m) | 11m/12m | Cab Allowed Persons | 2 | |
| Axle No. | 2 | Wheelbase (mm) | 3360 | |
| Chassis Technical Parameter | ||||
| Chassis Model | BJ1059 | Chassis Name | Truck Chassis | |
| Chassis Brand | Forland | Manufacturer | Forland company | |
| App./ Dep. Angle(º) | 23/14 | Tire Spec. | 6.50-16*6 with 1 spare tire | |
| Leaf Spring No. | 8/9+5 | Front suspension (mm) | 1090 | |
| Fuel Type | Diesel | Rear suspension (mm) | 1545 | |
| Drive Type | 4x2 | Driver cab | Forland double rows D1695 driver cab | |
| Steering Type | Power steering | Gear Box | 5 speed forward and 1 reverse | |
| Emission standard | Euro 1 | Air-conditioner | Yes | |
| Engine Technical Parameter | ||||
| Engine Model | BJ493Q | Emission Standard | Euro 1 | |
| Displacement ( ml ) | 2771 | Power (KW) | 77hp | |
| Cylinder No. | 4 in line | Engine Type | Water cooling, four stroke, inter-cooling charged | |
| Work platform parameter | 1. Working platform rating load 200kg; | |||
| 2. Max operation height: 11m; | ||||
| 3. Max working platform height: 12m | ||||
| 5. Max rotation angle:360° | ||||
| Superstructure parameter: 1. Rotational alert lamp on the top of the cabin. 2. Four hydraulic outriggers which can be operated independently or simultaneously. 3. Insulated bucket for worker to operation. 4. Imported electro-hydraulic ratio control valve. 5.Working height: 11m; working arms: 3 folded telescopic arm, 360° continuous rotation, 6. Equipped with auxiliary lifting hanger loading 1 ton. | ||||
More pictures of hydraulic aerial working platform vehicle, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
