Recently, one client from Nigeria place an order of 2 units of 40cbm lpg skid-mounted filling stations for his LPG gas station career.

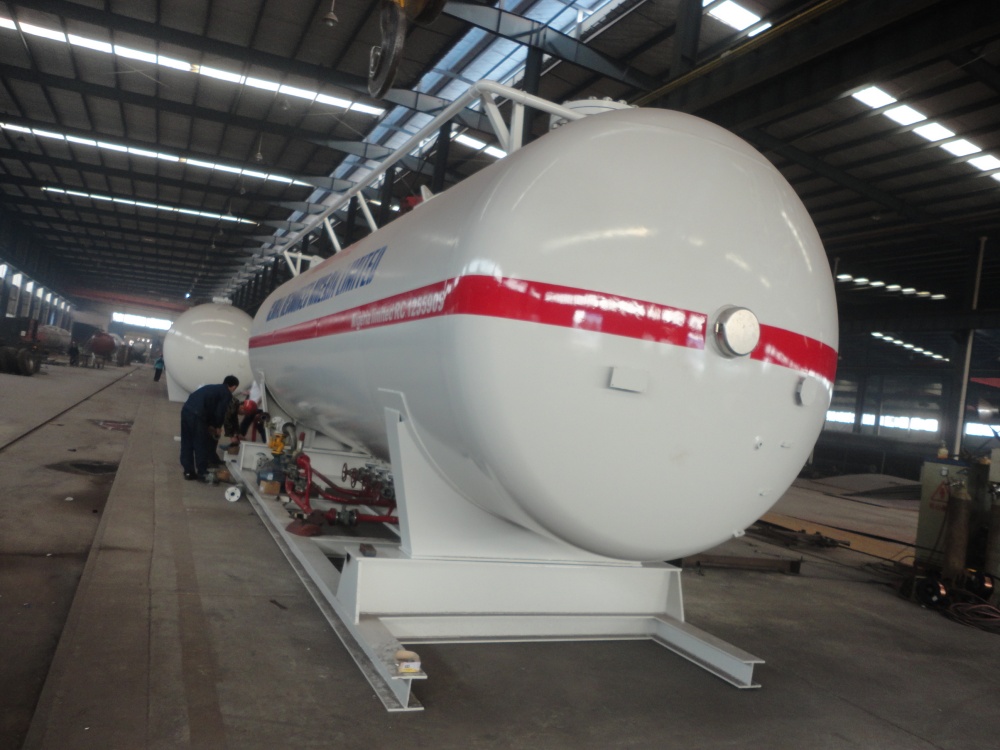

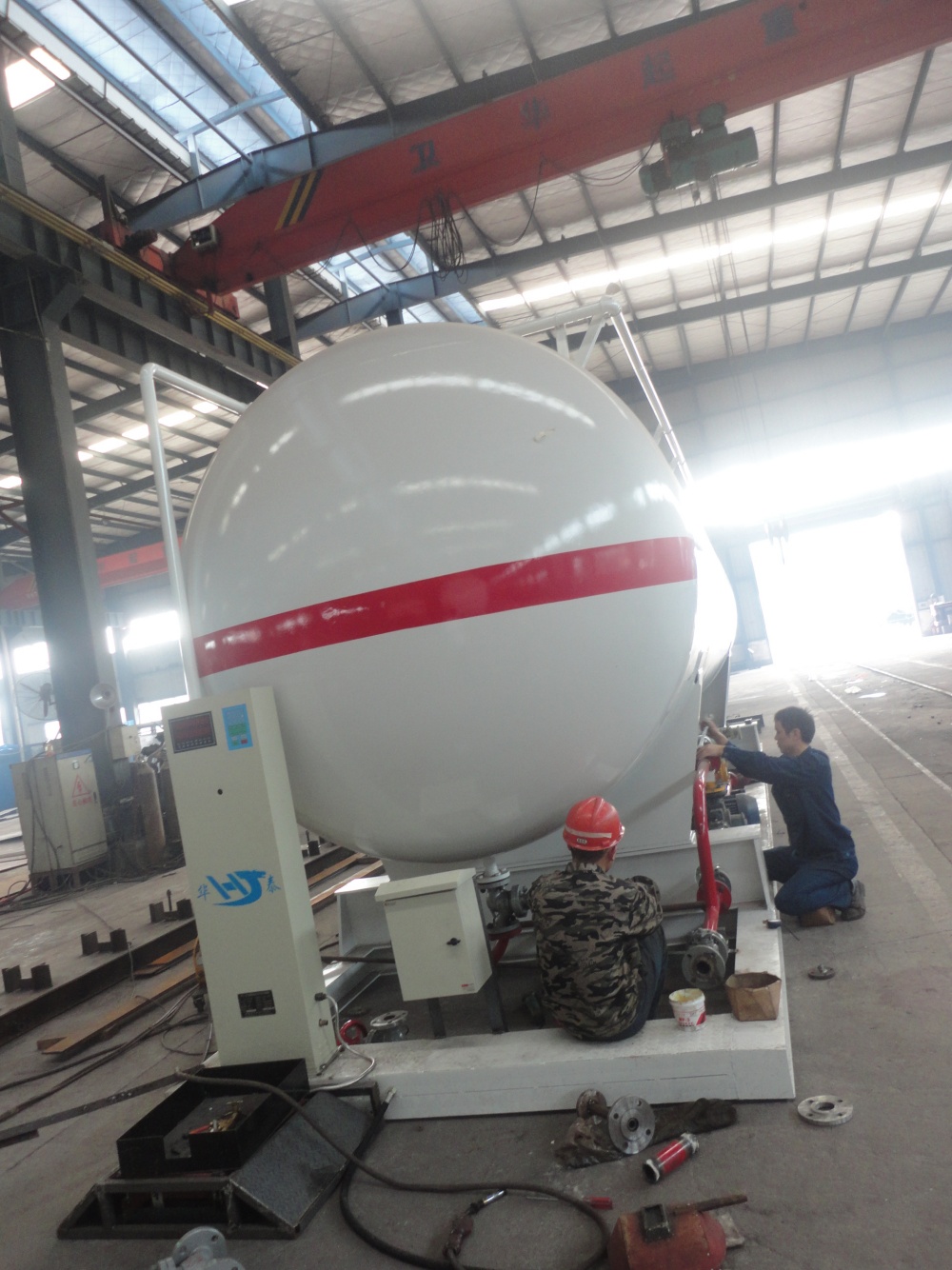

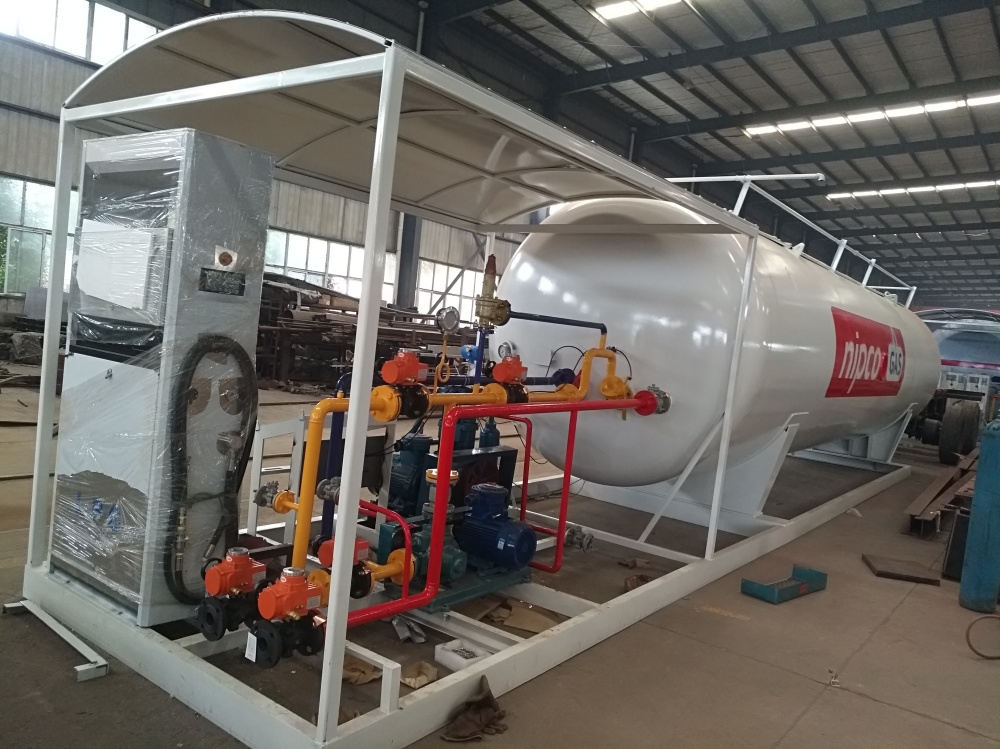

Look at the pictures of CLW 40cbm LPG skid station gas station as below.
Skid lpg gas station is also called lpg skid-mounted filling station LPG GAS dispenser, Mobile Skid LPG Gas Station,]lpg mounted skid refilling station, LPG FILLING SKID STATION, lpg filling station skid-mounted moving, lpg propane skid station, LPG skid station gas station, lpg skid-mounted filling station, LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.
| Item | Unit | Specification | |
| Loading object | CLW40-2300 | ||
| Material | Propane Gas | ||
| Designed loading Parameter | Option | Q345R, 16MnIII, Q370R | |
| Kg/m3 | 420~ 500 | ||
| Dimension | mm | 10040*2324*2914 | |
| Net Weight | Kg | 15960 | |
| Designed Pressure | Mpa | 1.77 | |
| Max Working Pressure | Mpa | <=1.6 | |
| Designed Temperature | C | -20~50 | |
| Volume | m3 | 40 | |
| Body thick | mm | 12 | |
| End head | mm | 14 | |
| Man Hole | mm | 450 | |
| Top Safety Valve Port | mm | 80 | |
| Life Year | Year | 10 | |
| Input and output | |||
| Liquid input Port | mm | DN50 ( 2 Inch) | 2.5Mpa |
| Liquid Output Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Bottom Air gas input Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Waste Liquid Output Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Top Gas Let Out Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Liquid Level Indicator Port | mm | DN20 | 2.5Mpa |
| Essential Device for option | |||
| Safety Valve, Temperature Gague, Pressure Gauge | |||
| Option~ flange | |||
| Production Standard | |||
| China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard | |||
| Designed Valid Year, at least 10 year | |||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of pressure vessels in China. With many years’ experience in developing, Chengli Special Automobile Co., Ltd. could supply lpg gas tank, lpg gas trailer, bulk lpg gas delivery truck, skid lpg gas station, lpg gas dispenser truck, etc. More information, please feel free to contact with Ms. Anita Deng. And please feel free to dial 0086 13329899995.
