| Dongfeng 8,000L milk delivery truck | ||||
| Main parameters | ||||
| Total mass | 11495 | Tank volume | 8,000L | |
| Rated mass | 6000 | Overall dimension | 7000*2300*2650(mm) | |
| Curb mass | 5300 | Cargo body dimension | ×× | |
| Driver cab person | 2,3 | Max speed(km/h) | 90 | |
| Approach/departure angle | 22/13 | Front/rear suspension(mm) | 1180/1715 | |
| Axle nos. | 2 | wheelbase | 3800 | |
| Axle load(kg) | 4595/6900 | Driver cab | Dongfeng new model driver cab without air-conditioner | |
| Chassis main parameters | ||||
| Chassis model | EQ1070/EQ1090 | Manufacturer | Dongfeng | |
| Tyre specification | 7.50-16, | Tyre nos. | 6 | |
| Transmission | 5 speed manual transmission | Brake | Air | |
| Power steering | Yes | Air-conditioner | Selective | |
| Front bridge | 2.4ton | Rear bridge | 4.2ton | |
| Steel spring | 8/9+5 | Front tread(mm) | 1506 | |
| Fuel type | Diesel | Rear tread | 1466 | |
| Emission standard | Euro 3 | |||
| Engine main parameters | ||||
| Engine model | Manufacturer | Displacement | Power | |
| CY4102-E3C | 3856 | 88KW | ||
| Engine type | 4 strokes vertical in line, 4 cylinders water cooling inter-cooling EGR diesel engine | |||
| Milk tank main parameters | ||||
| 1 | Tank volume: 8,000L, and with two compartments; adopts high quality food grade stainless steel material. The outer layer is with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP (cleaning device) installed. | |||
| 2 | There are three layers of the milk tank, the inner tanker is manufactured by 3mm thick 304/2B food grade stainless steel; the middle is 100mm PU foam insulation layer, and 80mm PU foam of the manhole part, the temperature will be changed less than 1 degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel. | |||
| 3 | There is cleaning equipment inside the tank, cleaning rod (cleaning ball), cleaning pipe (with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source. | |||

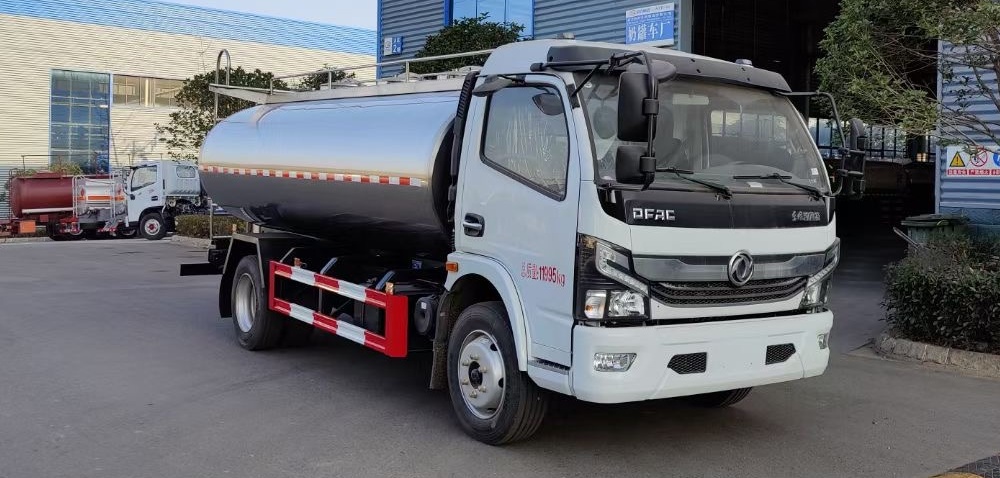

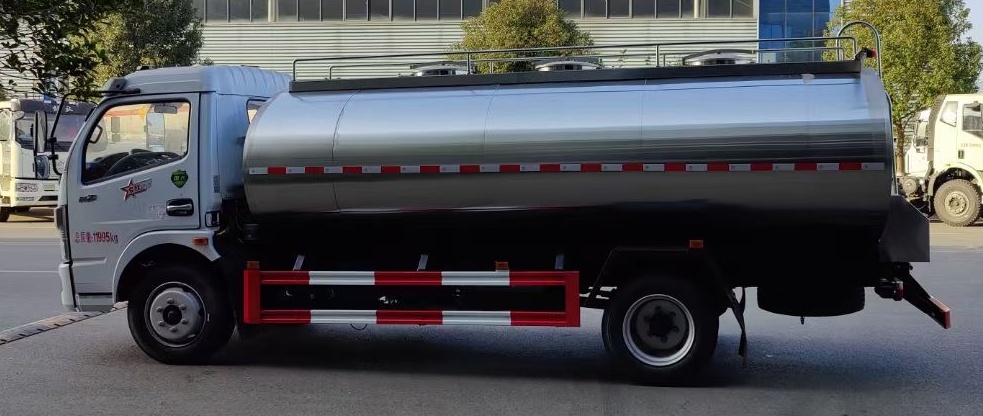

More pictures of dongfeng duolika 8,000L milk truck manufactured by Chengli Special Automobile Co., Ltd.
