GOOD PRICE SINOTRUK HOWO 4*2 LHD garbage compactor truck 9cbm
2023-11-23 21:41:57   source:www.trucksinchina.com    clicks :


GOOD PRICE SINOTRUK HOWO 4*2 LHD garbage compactor truck 9cbm

Good quality SINOTRUK HOWO 4*2 compacted garbage truck customized for South American Island countries.

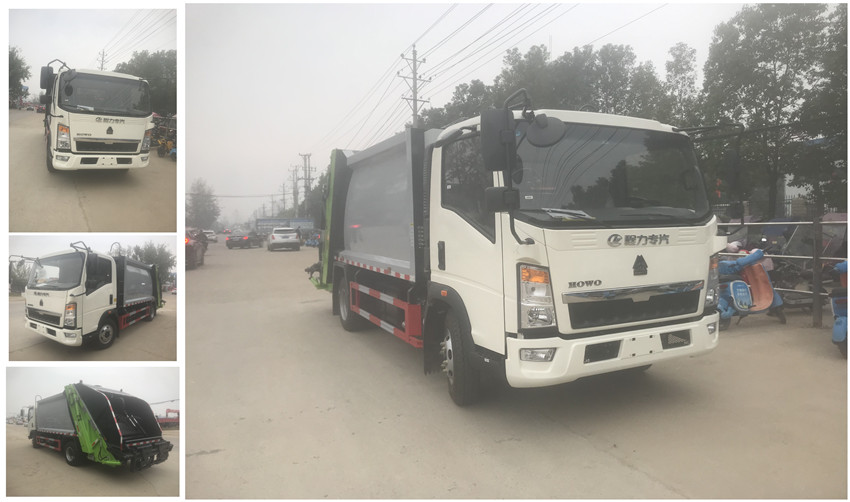

More pictures of SINOTRUK HOWO 9CBM compacted garbage truck manufactured by Chengli Special Automobile Co., Ltd. are as below.

Good quality and best price HOWO compressed garbage truck 9cbm for sale

SINOTRUK HOWO 2080mm single row driver cab
4*2 LHD, RHD optional
ISF3.8s5154 Cummins 154hp diesel engine, Euro 3 emission standard
3800mm wheelbase
WLY 6+1 gears, manual type
2.7T front axle/7.2T rear axle
8.25R16 tires*6+1 spare
Air conditioner, power steering, electric heating, clutch assist,central lock, electric doors and windows,remote key, etc.

The volume of the HOWO compression garbage truck is 9cbm,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.

Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

The specification of SINO TRUK HOWO 8CBM garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.

1Product nameSINO TRUK HOWO 4*2 LHD 8m3 garbage compactor truck
2Truck chassis modelZZ
3Overall dimension(L*W*H)7900×2300×3250
4Total mass(kgs)9990
5Curb mass(kgs)7000
6Driver cab person3 included the driver
7Volume9m3
8Real loading capacityAbout 6-7tons
9Max speed95kw/h
10Wheelbase3800
11Axle nos.2
12Driver cabSINO TRUK HOWO L3W series 2080mm single row drivercab
13Approach/departure angle(°)18/15
14Front/rear suspension (mm)1240/2320
15Front/rear tread(mm)1585/1796
16Tire specification8.25R16
17Spring11/11+7
18Engine modelISF3.8s5154
19Rated power154hp/115KW
20Displacement(ml)3856ml
21Fuel typeDiesel
22Emission standardEuro 3
23Gearbox6 speed gearbox, manual
24Front/rear axle2.7tons/7.2tons
25ColorDifferent color upon request
26Wastes vanSolid arc-shape box body of strength beam and steel plate welded
27Wastes van materialHigh quality China standard light duty steel
28Operation wayPLC control way
29Loading and discharging wayRear overturning mechanism
30Compacted wayBi-directional compression
31Wastes compacting density≥0.8tons/m3
32One working circle time for loading and discharging≤30s
33Max compressing force≥150KN
34Max passing force≥180KN

CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
