Wrecker towing truck is used for pulling the broken car,truck, bus or trailer, etc on highway and city road, suburb way ,airport, etc.It is made of chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes. It combine the hoisting, lifting, towing functionm, etc. More information, please feel free to contact with Ms. Anita.
CLW brand wrekcer towing truck consists of the truck chassis, hoistiWrecker towing truck is used for pulling the broken car,truck, bus or trailer, etc on highway and city road, suburb way ,airport, etc. ng equipment, truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes. The tow truck can hoist, lift, draw, and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
As a professional road rescue truck supplier in China, we Chengli tow trucks can meet all your demand. Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 4x4 wrecker truck, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc. More information, please call +86 13329899995.

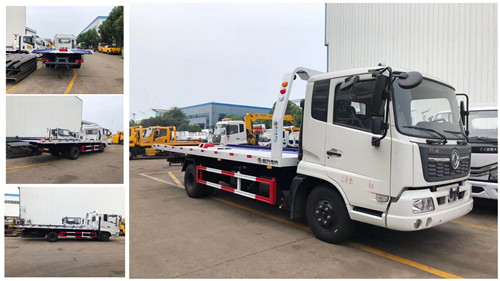

More pictures of Dongfeng tianjin 4*2 8T flatbed road wrecker car vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE!DONGFENG 4*2 LHD 8T flatbed road breakdown recovery vehicle for sale
main technical parameters of Dongfeng tianjin 4*2 8T flatbed road wrecker car vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
Overall parameters | Product name | Dongfeng Tinajin 8tons flatbed wrecker tow truck for sale |
Manufacturer | Chengli Special Automobile Co., Ltd. | |
Total mass(kgs) | 18000 | |
Curb mass(kgs) | 10420 | |
Overall dimension (L*W*H)(mm) | 9650×2550×2830 | |
Chassis parameters | Driver cab | dongfeng 4*2 LHD single row driver cab with 3 seats |
Approach/departure angle(°) | 17/13 | |
Front/rear suspension(mm) | 1400/3400 | |
Axles nos. | 2 | |
Wheelbase(mm) | 5000 | |
Axle load(kgs) | 6500/11500 | |
Max speed(km/h) | 89 | |
Tire specification | 10.00R20*6+1 | |
Steel spring | 8/9+6 | |
Front/rear tread(mm) | 1980/1860 | |
Engine model | B6.2NS6B210 | |
Fuel type | Diesel | |
Emission standard | Euro Ⅲ | |
Gearbox | Fastgear 8 speed gearbox, manual | |
Upper part parameters | Flatbed dimension(L*W)(mm) | 7200*2550 |
Hydraulic winch loading capacity | 8tons | |
Operation way | Bilateral linkage operation | |
Rear towing arm | 8tons loading capacity of the rear towing arm | |
Loading capacity of the flatbed plate | 8tons | |
Wire rope | 45m length wire rope | |
Special binding belts | 6 sets | |
Caller with alarm light(yellow color) | Yes | |
fixation forks | 2 sets | |
Supporting forks seat | 1 set | |
fixation forks | 2 sets |
This dongfeng brand TIANJIN 4*2 LHD 8tons flatbed wrecker towing truck adopts dongfeng TIANJIN 4*2 LHD one row and a half luxurious driver cab, 5000mm wheelbase, Fastgear 8 speed manual gearbox, B6.2NS6B210 Cummins 210hp Euro 6 diesel engine, air cut brake, 10.00R20 rail tires, 4.5tons front axle/9tons rear axle, original air conditioner, 280L steel oil tanker, etc.
The length of the flatbed for the dongfeng KR wrecker tow truck is 7200mm; while the width of the flatbed is 2550mm,
The standard devices of dongfeng tianjin 4*2 LHD 8tons road wrecker tow truck as below
1, 6 tons loading capacity for the upper part/flatbed
2, 6T hydraulic winch and 45m length wire rope
3, 5tons loading capacity of rear towing arm(choose to install)
4, auxiliary wheels*2 sets
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, caller with alarm light
8, 6* special binding belts
