Smallest and mini 2tons cargo truck with XCMG knuckle crane boom for sale
Customized DONGFNEG 4*2 RHD 2T knuckle crane boom mounted on cargo truck for sale, adopts Dongfeng duolika 1730mm RHD single row driver cab, CY4100Q 90Hp diesel Euro 2 engine, 3300mm wheelbase, 7.00R16 rail tires, power steering and air cut braking, etc,
The overall dimension(L*W*H) of dongfeng 4*2 RLHD 2tons knuckle truck with crane is 5995×1980×29509(mm); while the cargo body dimension(L*W*H) is 3500×1880×400(mm). Clients choose to install XCMG brand 2tons 3 sections knuckle crane boom(crane boom model: SQS42, lifting height: 9m; Working radius: 8m.

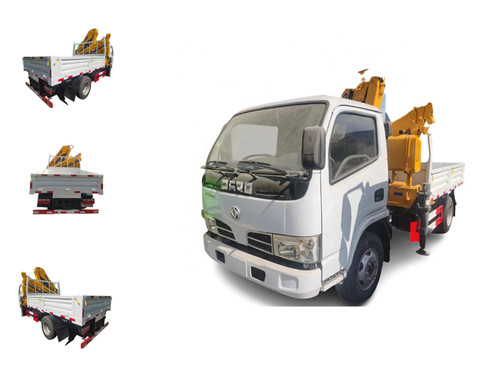

More pictures of Dongfeng 4*2 RHD 2T knuckle crane boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE!Dongfeng 4*2 RHD 2T knuckle crane boom mounted on cargo truck for sale
Main technical parameters of Dongfeng 4*2 RHD 2T knuckle crane boom mounted on cargo truck is as below.
| Product name | Dongfeng RHD 2 tons knuckle crane boom mounted on truck for sale (CLW5060JSQ3) | |
| Chassis type | EQ1060 | |
| Parameters | Overall dimension length/width/height (mm) | 5995×1980×2950 |
| Cargo body dimension (L*W*H)(mm) | 3500×1880×400 | |
| GVW(kg) | 6495(Kg) | |
| Kerb Mass(kg) | 3865 (Kg) | |
| Rated mass(kg) | 2500(Kg) | |
| Approach angle/ Departure angle(mm) | 19/15(°) | |
| Front /rear suspension(mm) | 1032/1663 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | CY4100Q |
| Displacement/Power(kw) | 3707ml/66KW/90hp | |
| Manufacturer | Chaochai | |
| Type | 4-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3300 | |
| Tread(front/rear) | 1506/1466(mm) | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng 1730mm LHD single row driver cab | |
| Number of spring axle(front/rear) | 8/9+5 | |
| Tire Type | 7.00R16 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 3500×1880×400 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG brand 2TONS 3 sections knuckle crane boom | |
| Lifting height | 9m | |
| Working radius | 8m | |
| The color of the whole truck is upon request. | ||
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
