Hot sale!SINO TRUK HOWO 6*4 LHD 371hp diesel 23cbm garbage compactor truck for South America
Customized SINO TRUK HOWO 6*4 LHD 23CBM garbage compactor truck, adopts HW76 new face LHD driver cab, 4325+1350mm wheelbase, HW13710 10 speed manual gearbox, HW70 PTO, HF7 7tons front axle/ ST16 16tons rear axles, ZF8198 steering gear, 295/80R22.5 tires, weichai 371hp Euro 2 diesel engine, etc.
The volume of SINO TRUK HOWO 6*4 371hp diesel garbage compactor truck is 23cbm.Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Our CLW brand compactor garbage truck is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
The waste compression truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

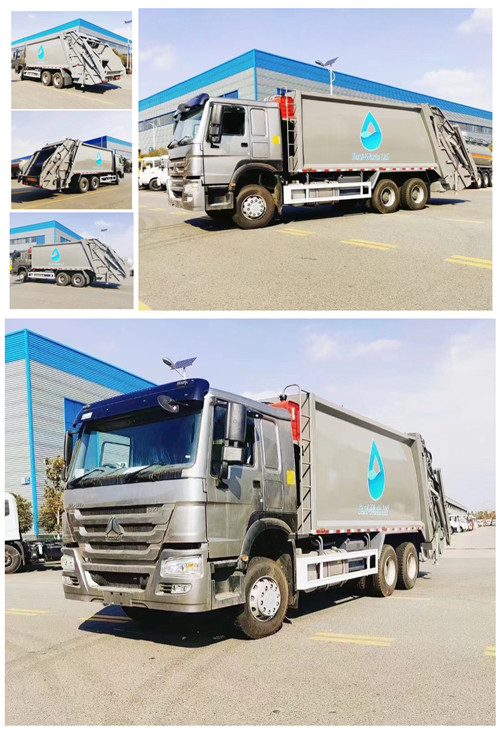

More pictures of SINO TRUK HOWO 6*4 LHD 23CBM garbage compactor truck customized for South America manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! HOWO 23cbm refuse garbage compactor truck for sale
Main technical parameters of SINO TRUK HOWO 6*4 LHD 23cbm garbage compactor truck is as below.
| 1 | Product name | SINO TRUK HOWO 6*4 LHD 23m3 garbage compactor truck for sale |
| 2 | Truck chassis model | ZZ1257 |
| 3 | Overall dimension(L*W*H) | 10025×2496×3400 |
| 4 | Total mass(kgs) | 25000 |
| 5 | Curb mass(kgs) | 16050 |
| 6 | Rated mass(kgs) | 8820 |
| 7 | Volume | 16m3 |
| 8 | Max speed | 90kw/h |
| 9 | Wheelbase | 4325+1350 |
| 10 | Axle nos. | 3 |
| 11 | Driver cab | HW76 new face LHD driver cab |
| 12 | Approach/departure angle(°) | 16/11 |
| 13 | Front/rear suspension (mm) | 1500/2850 |
| 14 | Front/rear tread(mm) | 2022; 1830/1830 |
| 15 | Tire specification | 295/80R22.5 |
| 16 | Steel Spring | 9/12 |
| 17 | Engine model | WD615.47 |
| 18 | Rated power | 273KW/371hp |
| 19 | Displacement(ml) | 9726ml |
| 20 | Fuel type | Diesel |
| 21 | Emission standard | Euro 2 |
| 22 | Gearbox | HW13710 10 speed manual gearbox |
| 23 | Front/rear axle | HF7 7tons front axle/ ST16 16tons rear axles |
| 24 | Color | Different color upon request |
| 25 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 26 | Wastes van material | High quality China standard light duty steel |
| 27 | Operation way | PLC control way |
| 28 | Loading and discharging way | Rear overturning mechanism |
| 29 | Compacted way | Bi-directional compression |
| 30 | Wastes compacting density | ≥0.8tons/m3 |
| 31 | One working circle time for loading and discharging | ≤30s |
| 32 | Color | White color upon request |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
