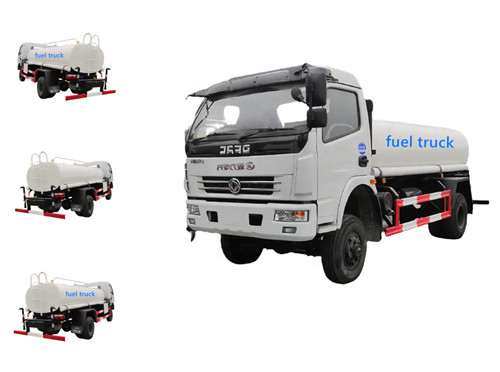

HOT SALE! Dongfeng 7500L oil dispensing tanker truck for sale
customized Dongfeng duolika 7500Liters refueler truck for sale
| Main technical parameters | |||
| Dongfeng 4*2 LHD/RHD 7500Liters oil bowser for sale （CLW5090GJY3） | |||
| Total mass(Kg) | 9400 | Tank volume(Liters) | 7500 |
| Rated mass(Kg) | 4990 | Overall dimension(mm) | 7000×2285×2700 (mm) |
| Curb mass(Kg) | 4215(Kg) | Driver cab person | 2-3 |
| Approach/departure angle(°) | 18/12(°) | Front/rear suspension(mm) | 1180/2020 (mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3800 |
| axle load (Kg) | 3560/5840 | Max speed (Km/h) | 80 |
| Chassis main parameters | |||
| Chassis model | EQ1090 | Chassis manufacturer | Dongfeng |
| Tyre specification | 7.50R16 rail tires | Tyre nos. | 6+1 |
| Steel spring | 11/9+7 | Front tread(mm) | 1831(mm) |
| Fuel type | Diesel | Rear tread(mm) | 1640 (mm) |
| Transmission | 5 speed transmission | Air-conditioner | No, choose to install |
| Power steering | Yes | Front/rear bridge | 2.4tons/4.2tons |
| Electronic line | 24V | Exhaust braking | Yes |
| brake | Air brake | Driver cab | Dongfeng single row driver cab |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| CY4102BZQ | DONGFENG CHAOCHAI | 3856 | 88 |
| Engine type | 4cylinders in line, Turbocharged and intercooled diesel engine | ||
| other Equipment or performances | 1. The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, with single one compartment and several anti-wave sheets. And the oil tanker volume is 7500Liters. | ||
| 2. Equipped with special carbon steel oil pump, one Euro standard manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit elevating guardrail; one unit of China-made English words small flow refueling dispenser of 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc. | |||
| 3, The truck is painted metallic coating. And the fuel dispenser is installed at the side under part as the picture show. | |||
Product Notes of CLW Brand fuel tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1.We can supply fuel truck, refueling truck from 4000L to 40000L.
2. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
3. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
4.Optional Chassis Brand: Dongfeng, Fonton, WUSHILIN, JMC,JAC, Chang'an,Sinotruk,Steyr,Shacman,FAW, Iveco, Auman and North BENCHI etc.
5. Factory direct sale, high quality and good price.
The fuel trucks is also called refuel truck, fuel dispenser truck, refuel tanker truck, oil dispensing truck, oil tanker truck, oil delivery truck, etc. The oil tanker truck is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped fuel dispenser and fuel pump to refuel for other automobile. The shape of the fuel tanker is elliptical or rectangular and the material can be high quality carbon steel plate Q235 , stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
In order to prevent corrosion, the surface of the tank was printed anticorrosive paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil. As a professional mobile oil tank trucks manufacturer, the mobile refueling trucks for sale is from 5000 liters to 45000 liters. They are from 4*2 fuel trucks to 6x4 fuel tank trucks. Besides oil tanker truck, our factory also produce fuel tanker trailer and the fuel tank capacity is from 30000 liters to 60000 liters.
If you're interested in our fuel tanker vehicle, please call us by 0086 13329899995.
