factory direct sale dongfeng 15cubic meters 6*4 dump truck for sale
| CLW3200 dump truck Main parameters | |||
| Product name | Dump truck | Overall dimension(L*W*H) | 7900×2500×3100(mm) |
| Chassis model | EQ3208VPJ3 | Cargo body dimension | 5400×2300×1200(mm) |
| Total mass | 20490(Kg) | Approach/departure angle | 32/18(°) |
| Rated mass | 10500(Kg) | Front/rear suspension | 1245/1655,1245/1755(mm) |
| Curb mass | 9795(Kg) | Max speed | 80(km/h) |
| Engine main parameters | |||
| Engine model | Manufacturer | Displacemewnt(ml) | Power (kw) |
| ISDe210 30 | Cummins | 6700 | 155 |
| Emission standard | Euro 3 | ||
| Axle nos. | 3 | Front tread | 1940/1860/1860(mm) |
| Wheelbase | 3600+1300 | Rear tread | 1860/1860(mm) |
| Tyre nos. | 10 | Tyre specification | 10.00-20, 0 |
| Fuel type | Diesel | Steel spring | 8/13 |
| Axle load(kg) | 5600/14890(double axles) | Driver cab person | 3 |
| Remark | Dongfeng 153 one row and a half driver cab, Cummins 210hp engine, Fastgear 8 speed transmission, 10.00-20 nylon tyre, etc. Dump truck cargo van dimension (L*W*H) 5400*2300*1200(mm), 6mm thickness for side sheet and 8mm thickness for bottom sheet. | ||
CL3200 dongfeng 15cubic meters 6*4 dump truck adopts LHD or RHD Dongfeng 153 one row and a half driver cab, Cummins 210hp engine, Fastgear 8 speed transmission, 10.00-20 nylon tyre, etc. Dump truck cargo van dimension (L*W*H) 5400*2300*1200(mm), 6mm thickness for side sheet and 8mm thickness for bottom sheet.

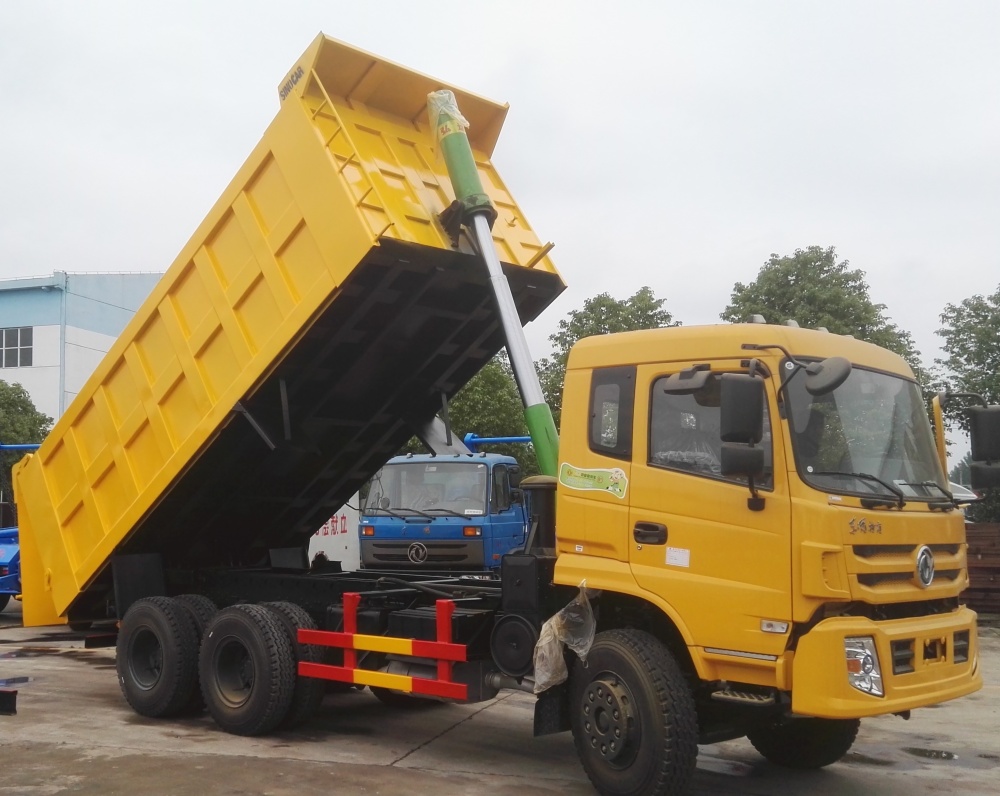

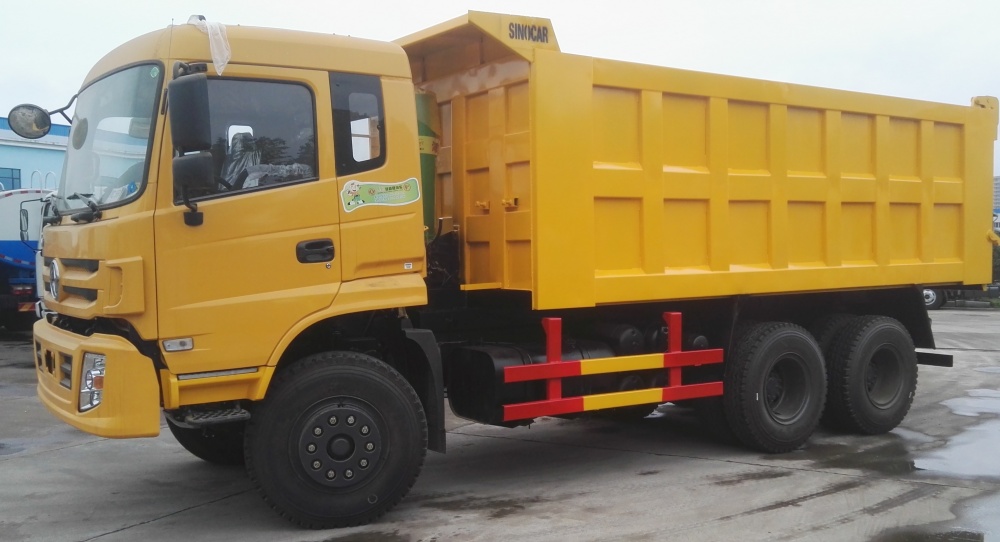

More pictures of hot sale dongfeng 15cbm dump truck manufactured by Chengli Special Automobile Co., Ltd.
high quality and best price dongfeng dump tipper vehicle 15cubic meters for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck and tipper, etc. in China since 2004s. With many years’ experience in selling, Chengli Special Autombile Co., Ltd. could supply dongfeng brand dump truck, ISUZU dump truck, FAW tipper, North Benz dump truck, Shacman dump truck, forland RHD dump truck, Foton Auman dump truck, tipper semitrailer, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
