Product introduction
Usage
Product classification
Operation Procedure
Precautions when using
Common trouble shooting
1, Product introduction

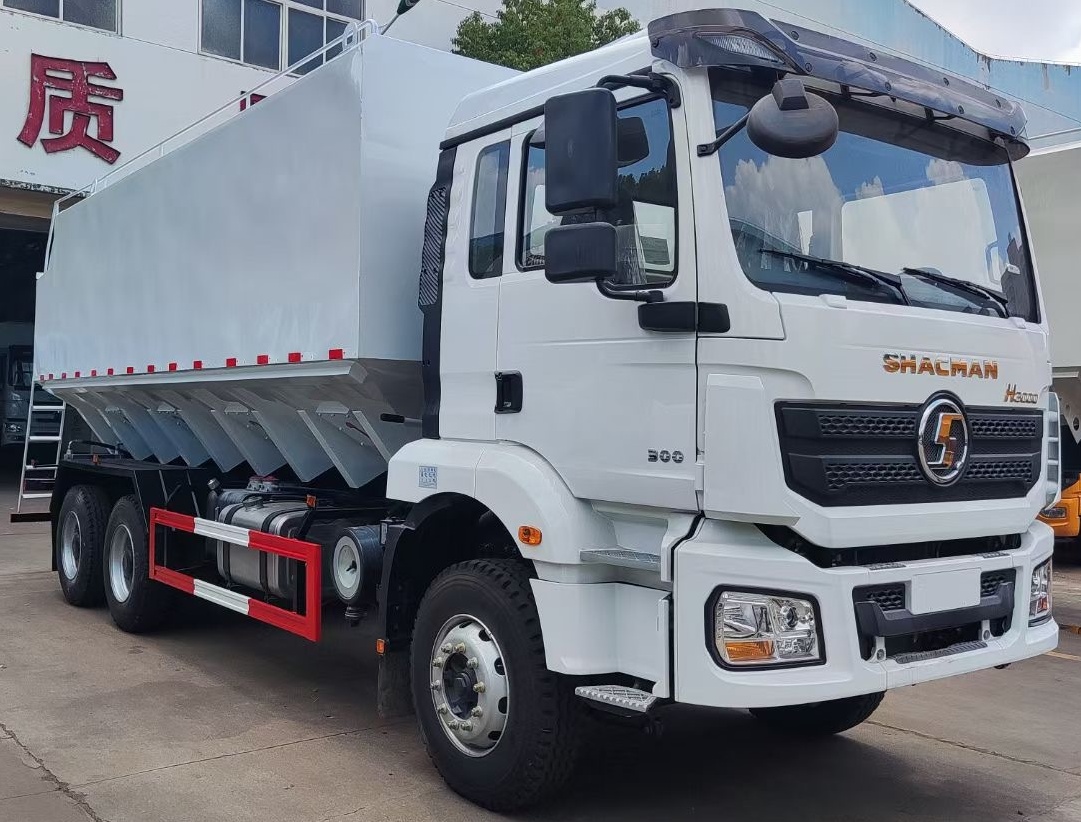

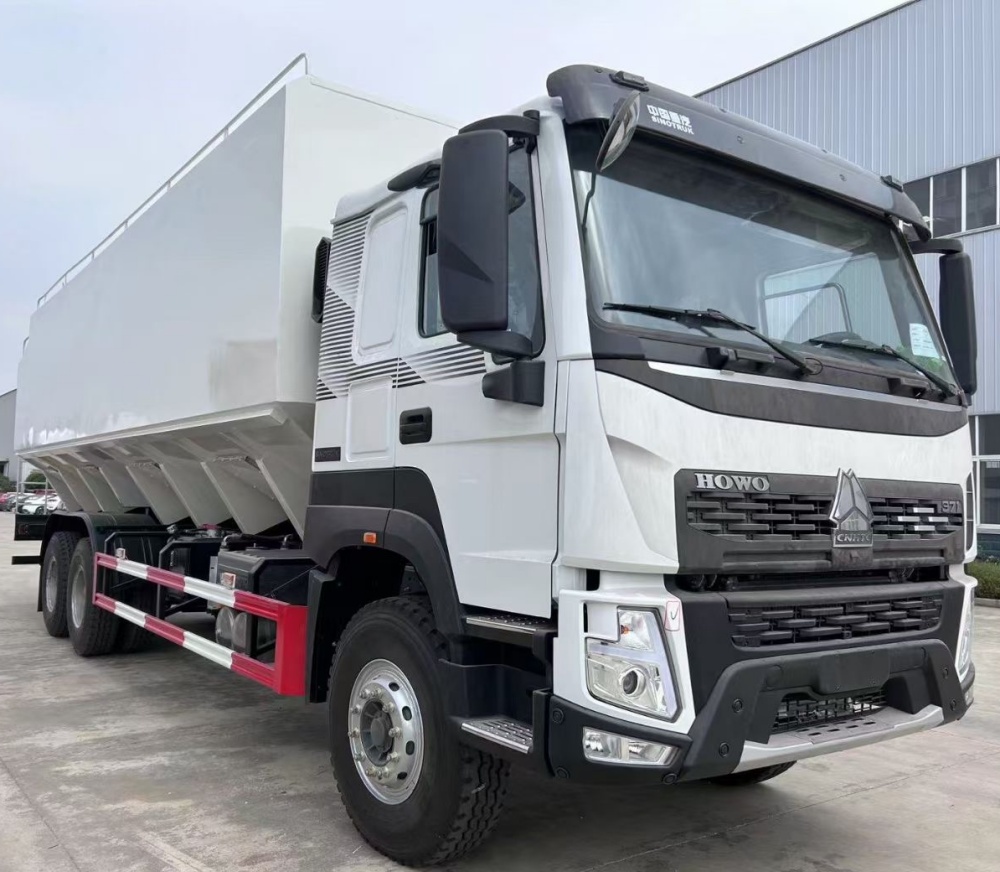

The bulk feed delivery truck manufactured by our company is a kind of special transportation vehicle refitted on the second type chassis or the cargo trucks clients offered, then choosing the high quality and high strength carbon steel, welded the tank; equipped with electronic auger discharging system. Bulk feed tank is made up of chassis, loading feed pellet tank, discharging auger system and electro hydraulic operation system, etc.
The advantages of the bulk feed tank truck manufactured by our company are as below
a, the feed tank adopts high quality carbon steel, automatically welded.
b, with different compartments to loading and discharging different kinds of feed.
c, electro hydraulic auger discharging system saving manpower and time
d, easy to loading and discharging
e, fewer residue with beautiful overlooking.
f,our feed truck always hold the lead in the similar products.
2, Usage
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
3, Product classification
The classification of bulk feed delivery trucks (according to the discharging driving way)
a, electronic auger type: suitable for discharging and transporting from the places with three-phase electric power (without the three-phase electric power, choosing to install truck mounted generator)
b, hydraulic auger type: suitable for discharging and transporting without electric power
Remark：at present, our feed trucks adopts electronic auger type for the high productiveness, easy maintenance and fewer breakdowns of electronic auger.
4, Operation way
a, for the electronic auger type feed truck, first connect the external power- 380Volts correctly. Then check whether the direction of rotation accordance with the Rotary marking, if not, turn the reversing knob on the Control panel to change; if the direction is wrong, cannot operate discharging.
Remark: when maintain or change the electronic motor, check the direction of rotation, assuring the auger direction of rotation is line with marking.
b, before discharging, adjust the auger pipe of the outlet port to the correct position. And the upper auger pipe can be adjusted to the suitable height by the two buttons “ start up” and “start down”, then adjust the direction by” left-right Rotary: button. Before adjusting, press the button” start hydraulic”, then control up-down and left-right rotary. Before adjusting, first press the button” start hydraulic” to start the hydraulic motor. After finished, remember to press” stop hydraulic” stop the hydraulic motor.
Remark: cannot start the “left-right rotary” button if the discharging auger haven’t been lifting, otherwise maybe destroy the rotary system.
c, start the discharging motor as step 4, when starting all the motors, pull manual valve operation arm of the discharging compartment; control the valve opening properly, making sure discharging smoothly; finish the discharging feed works of different compartments in turn.
d, discharging operation procedure
① first press “ start output” button, let the auger at the front of outlet pipe work
② press” start lifting” button, to lift feed to the height of the auger outlet port
③press “start feeding” button, discharging the feed of the compartment
After the series of operation, the feed of the compartment is conveying
Remark: if don’t operate as the procedures above, otherwise block the feeding line, destroy the electronic motor.
e, the procedure to stop the discharging is to press the suitable buttons reversely, that is to say “ stop feeding” →”stop lifting” → “stop outputting”. Then adjust the output auger to reset, at last press the button “ stop hydraulic”.
Instrument Panel Function
V refers to line voltmeter;
A refers to discharging electronic motor ammeter, we can estimate the working condition of the electronic motor and the surplus of the compartments according to the indicator of the ammeter.
5, Precautions
- Please using the truck according to the using procedures, people unfamiliar with the operation regulations cannot operate the truck without authorization.
- Adding some grease to grease mouth, rotating gear and the place to fixing lifting auger periodically, let the operating units in lubricating condition.
- After discharging, let he outlet pipe to the original place, avoiding crashing or shifting weight when transporting.
- The electronic motors and the generator on the feed truck are not waterproof equipments, cannot wash by water and also pay attention to waterproof.
- Check the bolts fasten beam and other fasten units frequently. If there is any loosening, please fasten.
6, Common breakdowns and removals of feed delivery truck
| breakdown | Removals |
| Electronic motor doesn’t work |
Check three-phrase connected, and reach to 380Volts electronic pressure; Check Whether the electronic motor ok; Check whether the control buttons and AC (alternating current) contactor ok or bad contact; |
| Electronic motor get stuck |
auger inner blocked, open the accessing opening, clean out the feeds blocked the auger; there is object inside the auger, open the accessing opening to clean out objects. Auger bearing burn, change burn bearing and assure in normal lubrication. |
| Auger blocked |
Discharging not in turn or large opening of discharging port, adjust the opening degree of discharging port appropriately to discharge the feed of different compartments in turn; Wrong auger rotation direction, adjust exchange-phase knob or the connecting line order of the electronic motor to make sure the auger rotation direction is the outlet direction; The loading feed is unsuitable for auger outlet |
|
Lower voltage; Voltage lack of phase AC contactor bad contact Electronic damage |
|
| Outlet auger cannot lift |
Hydraulic motor without start; The direction of the hydraulic motor is opposed; The output pressure of the hydraulic pump not enough, then adjust pressure knob at the hydraulic valve to enlarge the output pressure; Electronic units bad contact or damaged, Hydraulic valve stuck, clean the hydraulic valve and change the hydraulic oil. |
