Customized new good price dongfeng 5T cargo truck with crane
2023-11-23 21:41:57   source:www.trucksinchina.com     clicks :


Customized new good price dongfeng 5T cargo truck with crane for sale,

DONGFENG TIANJIN 4*2 LHD 5T cargo truck with crane for sale, adopts dongfeng Tianjin one row and a half driver cab, 4700mm wheelbase, Cummins B190 33 190hp diesel engine, 8 speed manual gearbox, power steering and air cut braking, 10.00R20 rail tires, 4700mm wheelbase.

And the overall dimension of Dongfeng Tianjin 4*2 LHD 5T truck with crane is 8600×2500×3790(mm), and the cargo body dimension of dongfeng Tianjin 5T cargo truck with crane is 5300×2294×550(mm).Clients choose high quality CLW Brand 5tons/6.3tons telescopic crane boom.

This dongfeng tianjin 4*2 LHD 5T cargo truck with telescopic crane boom is with double rear hydraulic ladders.
 mmexport1634783512945_副本Main technical parameters of Dongfeng Tianjin 4*2 lHD cargo truck with crane as below.

Product nameDongfeng dongfeng Tianjin LHD 5tons/6.3tons telescopic crane boom mounted on truck for sale
Chassis type DFL1160
ParametersOverall dimension length/width/height (mm)8600×2500×3790
Cargo body dimension (L*W*H)(mm)5300×2294×550
GVW(kg)16000 (Kg)
Kerb Mass(kg)8305,7805 (Kg)
Rated mass(kg)7500,8000 (Kg)
Approach angle/ Departure angle(mm)20/10 (°)
Front suspension/rear suspension(mm)1430/2550
Fuel Type diesel
Max Speed80
EngineTypeB190 33
Displacement/Power(kw)5900hp/190hp
ManufacturerCUMMINS
ChassisDrive Type 4*2
Wheelbase(mm)4700
Tread(front/rear)1880/1860 (mm)
Transmission 8 speed gearbox, manual
Braking systemAir braking
CabDongfeng Tianjin one row and a half luxurious driver cab
Number of spring axle(front/rear)8/10+8
Tire Type10.00R20
Air-conditionChoose to fix
Upper part(cargo van and crane boom) main parameters
Upper bodyCargo body dimension5300×2294×550
MaterialCarbon steel
Side sheet thickness2mm thickness
Bottom sheet thickness2mm thickness
PaintingUpon request
Crane boom main parameters
Crane boomChoose to install CLW brand 5ton 3 sections or 6.3tons 3 sections telescopic crane boom
The rear hydraulic ladders are selective like the picture shows

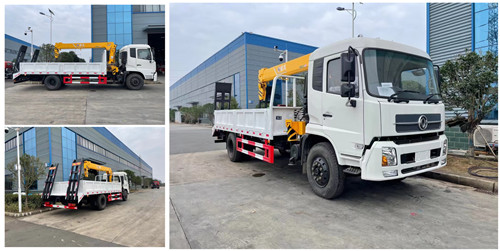

More pictures of dongfeng 4*2 LHD 5T cargo truck with crane manufactured by CHENGLI SPECIAL AUTOMOBILE CO., LTD.

Customized dongfeng tianjin 4*2 LHD 5T cargo truck with crane boom for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc



As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc.  The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be  crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
