Hot sale dongfeng 5,000L water tank

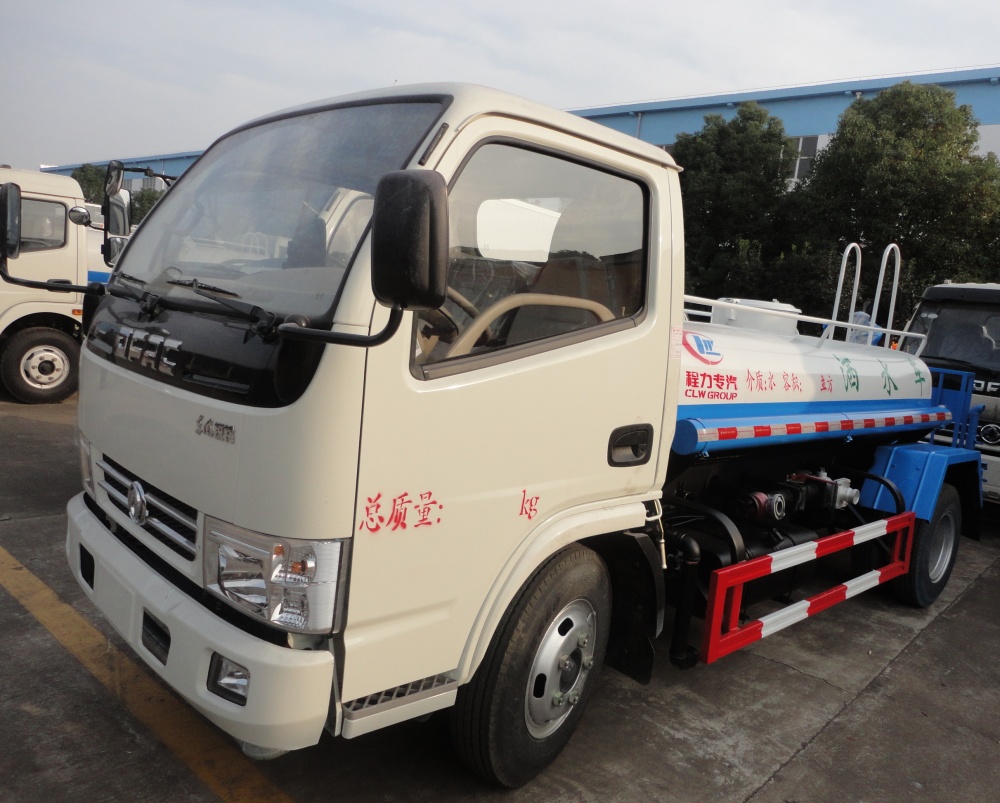

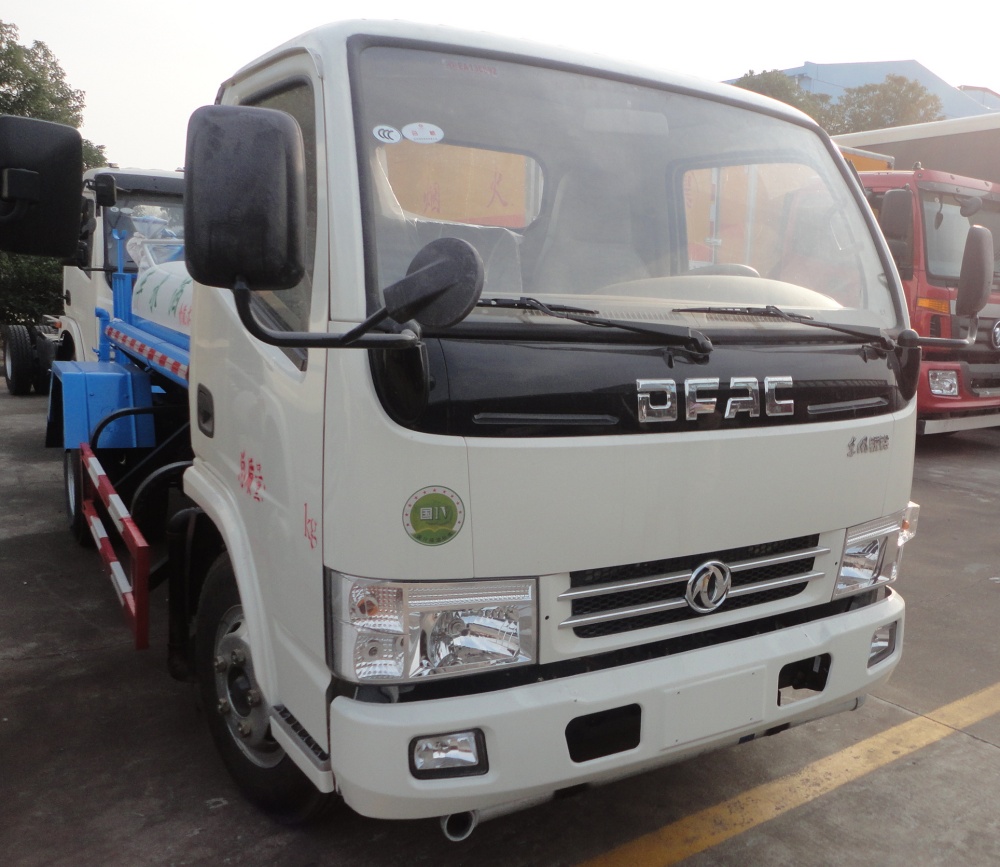

More pictures of dongfeng water truck as below
| Truck introduction |
Dongfneg furuika water tank, adopts dongfeng EQ1060Tj20D3 chassis, 3300mm wheelbase, comfortable seating, wide view, flexible operation. This water truck is with multipurposes. Suitable for cleaning road, watering trees, green belts and lawns, etc. dongfeng water tank is also with water sprinkling, dust suppression, high-low position sprying, pesticide spraying, guard-rail cleaning, water deliverying, fighting fires in emergency, etc. |
|||||||
| Truck model | Dongfeng furuika water truck | Chassis model | EQ1060TJ20D3 | |||||
| mass | Rated mass | 3350,3415 | Overall dimension | 5980×1980×2180 | ||||
| Mass | Curb mass | 2950 | Cargo body dimension | |||||
| Total mass | 6495 | Wheelbase | 3300 | |||||
| Engine | Model | CY4100 | Manufacturer | Chaochai | ||||
| Power | 95hp | Displacement | 3856ml | |||||
| Emission standard | Euro 3 | |||||||
| Driver cab | Flathead full metal sealed driver cab, single row, Panoramic curved windshield | |||||||
| Tank | Adopts high quality wugang 4mm thickness carbon steel; there are two sets of anti-wave sheets inside the tank. | |||||||
| Pumping system | Chosen to install high quality special water pump, equipped with PTO, alumninum alloy ball valve. And the pipeline choose the high quality galvanized pipes, etc. | |||||||
| Front washing | The width of the washing is up to 14m, used for washing and cleaning ground surface, water sprinkling,watering, dust suppression, etc. | |||||||
| Rear sprinkling | ||||||||
| Side spraying | ||||||||
| High spraying | ||||||||
| Painting | ||||||||
| Filter device | ||||||||
| Other devices | ||||||||
| Seated person | 2-3 | Max speed | 95 km/h | Steel spring | 8/9+5,6/8+4 | |||
| Tyre spefication | 7.00-16 | Rear suspension | 1032 | Rear suspension | 1488 | |||
| Axle load(kg) | 2600/3895 | Front tread | 1506 | Rear tread | 1466 | |||
| Special function | Tank volume | 3-5cbm | Tank dimension | 3800×1620×1100 | ||||
| Rated speed | 1450r/min | Flow | 60m³/h | |||||
| Sucking height | 7 m | Sprinkling width | ≥14m | |||||
| medicameat tray（chosen） | 20m | Water cannon | Column ≥30m，mist≥15m | |||||
