ISUZU double rows refrigerated trucks adopts ISUZU 98hp Euro 4 diesel engine, 7.00-15 tyre, 3360mm wheelbase, ISUZU MSB 5 speed transmission, etc. And the insulation body van volume of 9.5cbm, overall dimension of the ISUZU refrigerated truck is 5995X1930X2870(mm), and the insulation body dimension is 3150X1750X1750(mm).

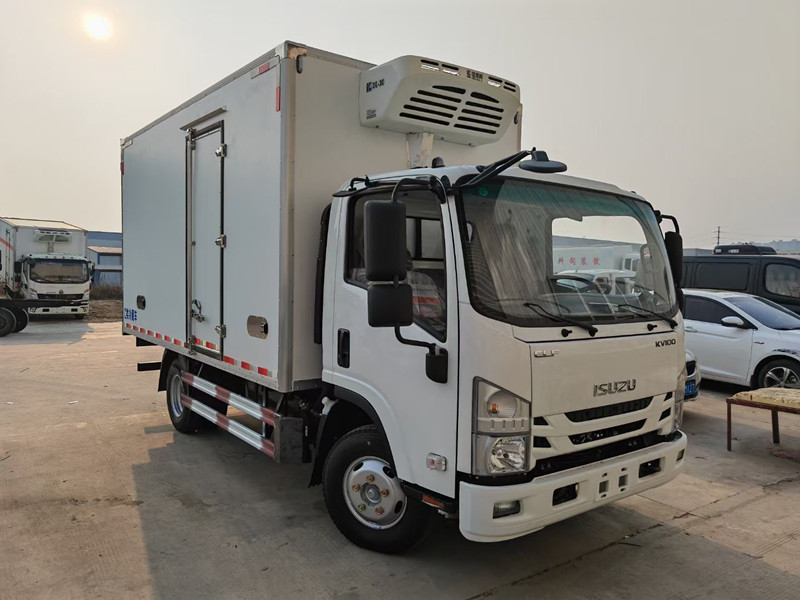

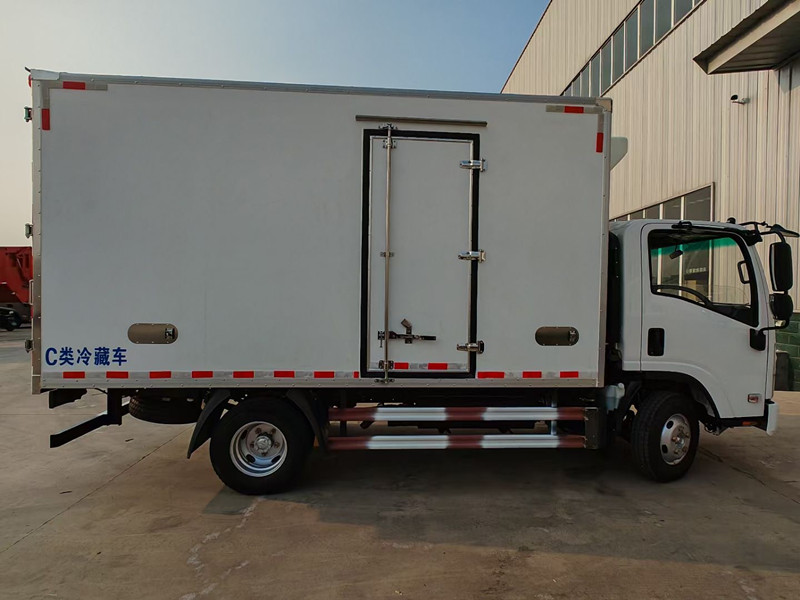

More pictures of ISUZU 3-5ton refrigerated truck manufactured by Chengli Special Automobile Co., Ltd.
HOT SALE! 3T ISUZU 100P cold van box truck
ISUZU refrigerated truck 3tons for sale
| Products Technical Specification | |
| Brand & Series | ISUZU double row 4*2 3ton Refrigerated truck for sale |
| Fuel type | Diesel |
| Emission Standard | Euro 4 |
| Cabin | double rows, Radio, cassette |
| Overall dimensions (L×W×H) | 5995X1930X2870(mm) |
| G.V.W | 4480kg |
| Curb weight (chassis) | 2660kg |
| Loading capacity | 1495 |
| Engine & Chassis | |
| Engine model | QL10403HWRY |
| Maximum power | 72kw/98hp |
| Displacement | 2771 |
| Number of cylinders | 4 |
| Engine Manufacturer | ISUZU |
| Wheel base | 3360mm |
| Gear box | 5 forward gears & 1 reverse |
| Drive Axle | 2T/4T |
| Brake system | Oil braking |
| Steering wheel | Left hand drive |
| Electric device | 24V |
| Tyres & Quantity | Factory Standard 7.00R16LT & 6+1(Spare tire) |
| 7.00-16 | |
| Cooling box Description | |
| Cooling box dimensions (L×W×H) | 3150X1750X1750(mm) |
| Cooling box Volume | 9.6 square meters |
| Cooling box material | FRP inside & outside of the van, |
| polyurethane as the insulation | |
| Cooling box thickness | 800 mm Optional 100mm |
| Back Door | Hinged door |
| Side door | Optional |
| Refrigeration systems | Equipped with DT-230,South korean Hanya Brand |
| Temperature Range | Normal temperature 35°C |
| ,refrigeration temperature reached -18°C to 0°C | |
| Optional -10°C to 0°C,-18°C to 5°C ,-20to 30°C,etc | |
| Others | Stainless Steel door frame,Stainless steel corrugated |
| floor, Mark lamp at the four (4) corners f the | |
| body,Room lamp will be provided inside the cabin. | |
| Optional Configuration (√:Standard Equipment o:Optional ×:Not Available) | |
| A/C | v |
| Power Steering | v |
| Side bumper | √ |
| Rear bumpe | √ |
| Wind deflector | X |
Chengli Special Automobile Co., Ltd.is the leading manufacturer and supplier of refrigerated trucks in China since 2004s. With many years'experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply ISUZU refrigerated truck, Dongfeng refrigerated truck, JMC refrigerated truck, Yuejin refrigerated truck, Forland refrigerated truck, JAC refrigerated truck, FAW reefer van truck, refrigerated semitrailer, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
