Two units of HOWO RHD 16CBM garbage compactor trucks for East Africa

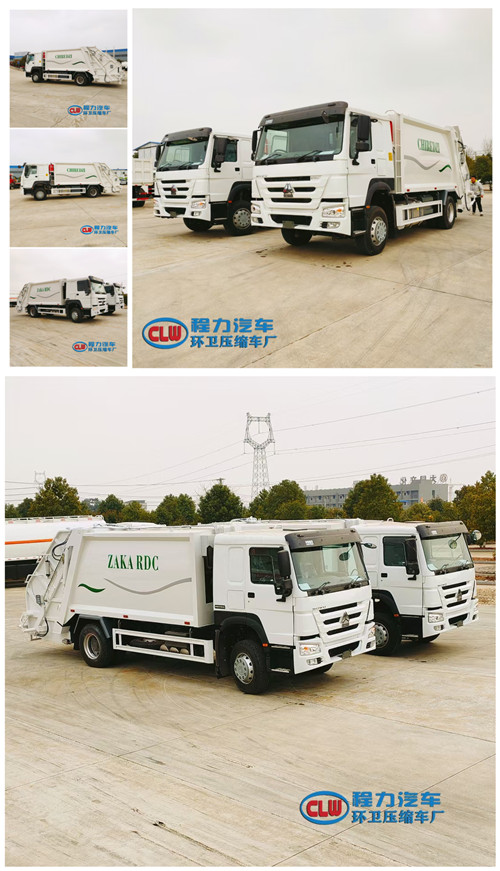

Two units of SINO TRUK HOWO 4*2 RHD 266hp diesel 16cbm compacted garbage trucks customized for client from East Africa. Look at the finished pictures of finished customized HOWO 16cbm compacted garbage truck is as below.
HOT SALE! HOWO 16cbm garbage compactor truck for sale
SINO TRUK HOWO 4*2 LHD 4*2 RHD 266hp diesel 13cbm garbage compactor truck adopts SINO TRUK HOWO HW76 new face truck head, 4*2 LHD driving, 4600mm wheelbase, WD615.92 196KW/266hp Euro 2 diesel engine, HW13710 10 manual gearbox, HF7 7T front axle/ST16 16T rear axle, 295/80R22.5 tires, etc.
The volume of SINO TRUK HOWO 266hp diesel garbage compactor truck is about 13cbm. and with the wastes loading capacity of about 10-12tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Main technical parameters of SINO TRUK HOWO 4*2 RHD 16cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| 1 | Truck model | SINO TRUK HOWO 4*2 RHD garbage compactor truck |
| 2 | Truck chassis model | ZZZ1167 |
| 3 | Engine model | WD615.92 |
| 4 | Engine power | 196KW/266hp |
| 5 | Engine displacement | 9726 |
| 6 | Engine brand | Cummins |
| 7 | Engine emission standard | Euro Ⅲ |
| 8 | Oil consumption(L/100km) | 22L |
| 9 | Max speed | 90kw/h |
| 10 | mini turning diameter | 18m |
| 11 | Max Gradability | 25﹪ |
| 12 | Truck wheelbase | 4600（mm） |
| 13 | Wastes van volume | 16m3 |
| 14 | Fuel type | Diesel |
| 15 | Wastes hopper lifting angle | ≥45° |
| 16 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 17 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
| 18 | one working circle time for loading (s) | ≤22 |
| 19 | one working circle time for discharging (s) | ≤30 |
| 20 | Overall dimension(L*W*H) (mm) | 8765×2500×3300 (mm) |
| 21 | Curb mass（kgs） | 8870 |
| 22 | max compressing force | ≥150KN, |
| 23 | Color | Different color upon request |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
