Dongfeng 5 cubic meters street sweeper truck for sale
Dongfeng duolika 5 cbm sweeper truck, adopts dongfeng duolika B07 single row driver cab, hydraulic power steering, 3800mm wheelbase, 7.50 tyre, air-cut brake, Chaochai 123hp diesel engine/Cummins 125hp diesel engine/Yuchai 140hp diesel engine, 5 speed transmission, etc.
The special functions of dongfeng duolika 5cbm sweeper truck as below
1, the water tank volume is 2cbm, and the wastes van volume is 5cbm.
JMC 77.5hp Auxiliary engine
Maintenance free automatic clutch,
High quality maintenance free fan,
Huade solenoid valve units
Wear-resisted hydraulic cylinders,
Siemens electronic control switch

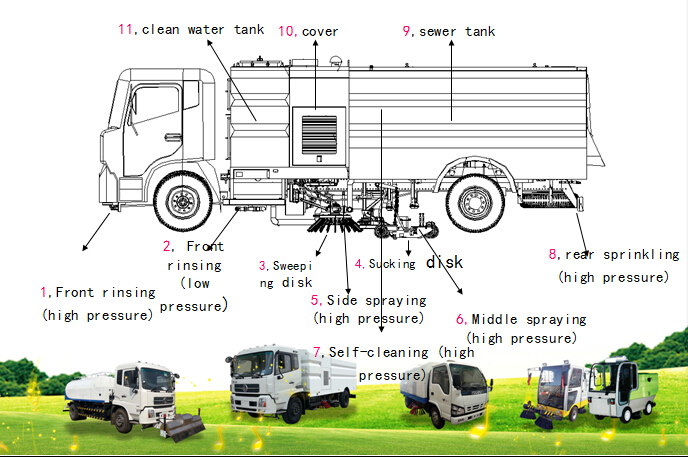

Left and right front sweeping brushes, rear sucking disk and Spraying dust control system
Front sweeping with collision avoidance function automatically
Max sweeping width: 3.2m
Max sucking pellets diameter: 100m
Max working ability: 45,000-90,000 square meters/hour
equips with Bidirectional operation button and high pressure washing function
choose to install front washing spaying function, snow removal, etc.
main technical parameters of dongfeng road sweeping vehicle for sale
| Main parameters of Dongfeng street sweeper truck | |||
| Product name | Dongfeng street sweeper truck | Overall dimension(L*W*H) | 6700X2290X2500(mm) |
| Chassis model | DFA1080SJ12D3 | Cargo body dimension | XX (mm) |
| Total mass | 8275(Kg) | Approach/departure angle | 24/16(°) |
| Rated mass | 2380(Kg) | Front/rear suspension | 1210/1690(mm) |
| Curb mass | 5700(Kg) | Max speed | 99(km/h) |
| Dongfeng sweeper truck for sale | |||
| Chassis model | DFA1080SJ12D3 | Fuel type | Diesel |
| Axle nos. | 2 | Front tread | 1770 (mm) |
| wheelbase | 3800 | Rear tread | 1586, (mm) |
| Driver cab person | 3 | Steel spring | 8/10+7,11/9+7 |
| Tyre nos. | 6 | Axle load(kg) | 3310/4965 |
| Tyre specification | 7.50-16 14PR,7.50R16 14PR, | ||
| Emission standard | Euro 3/Euro 4 | ||
| Dongfeng sweeper truck for sale | |||
| Engine | Manufacturer | displacement(ml)： | Power (kw)： |
| YC4E140-42 ISB3.9-125E40A CY4102-CE4C | Yuchai Cummins Chaochai | 4260 3900 3856 | 103 92 91 |
More pictures of dongfeng 5cbm road cleaning vehicle for sale
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
