| Dongfeng 153 RHD 10cbm sewage suction truck | |||
| Total mass(kg) | 16000 | Curb mass(kg) | 6805 |
| Rated mass(kg) | 9000 | Chassis model | EQ |
| Driver cab person | 3 | Max speed(km/h) | 90 |
| Approach/departure angle(°) | 30/19 | Front/rear suspension(mm) | 1250/1750 |
| Overall dimension(mm) | 7700X2470X3250 | Cargo body dimension | XX |
| Axles | 2 | Axles load(kg) | 6000/10000 |
| Tyre | 10.00-20 16PR,10.00R20 16PR,9.00R20,9.00-20 | Tyre nos. | 6 |
| Front tread(mm) | 1900,1940,1750 | Rear tread(mm) | 1800,1860,1750 |
| Wheelbase(mm) | 4500 | Springs | 9/11+8,8/10+8,8/11+8,9/10+8 |
| Emission standard | Euro 3 | Fuel type | Diesel |
| Engine model | Manufacturer | Displacement | Power |
|
ISDe185 40 |
Dongfeng Cummins |
6700 |
136 |
| Remark | The tanker volume: 10cbm, the transportation medium: sewer, feces, etc. | ||

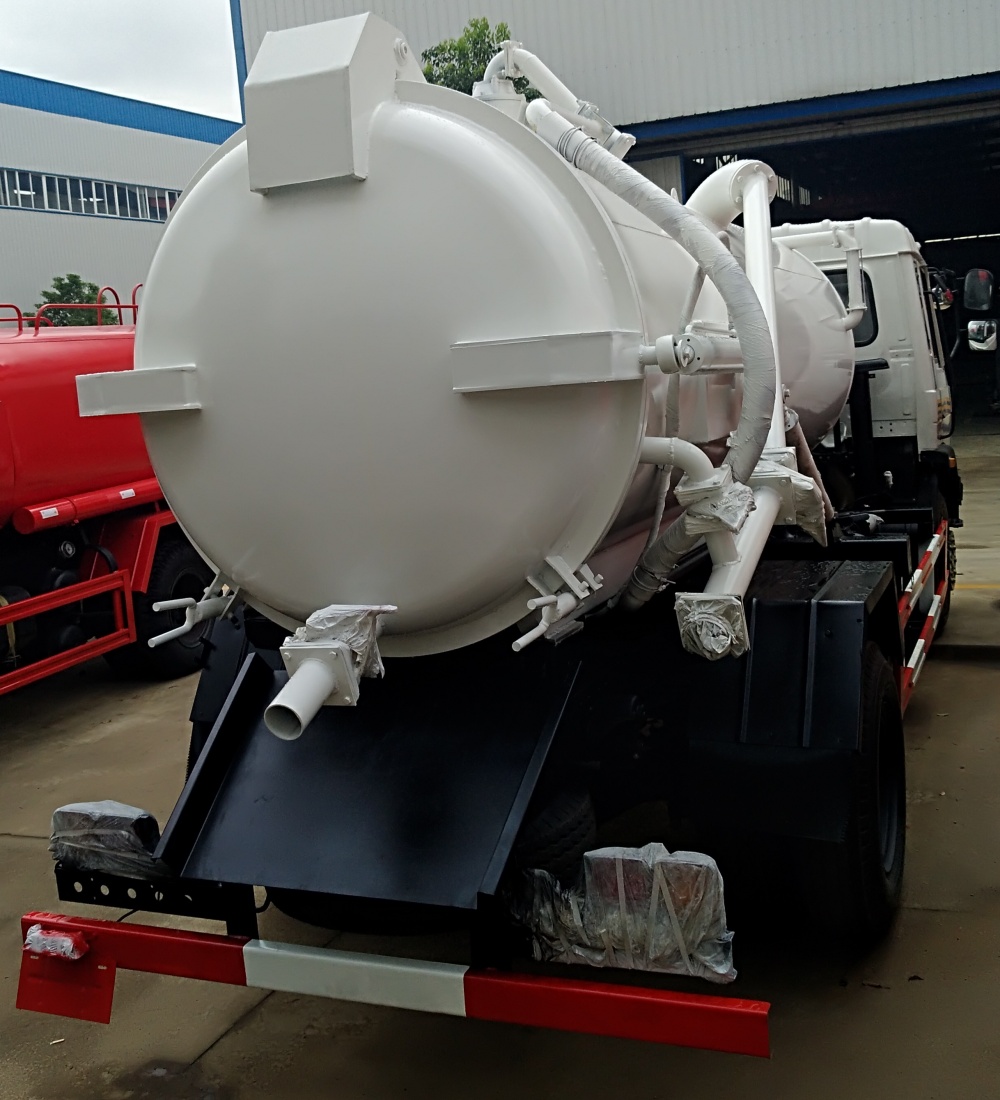

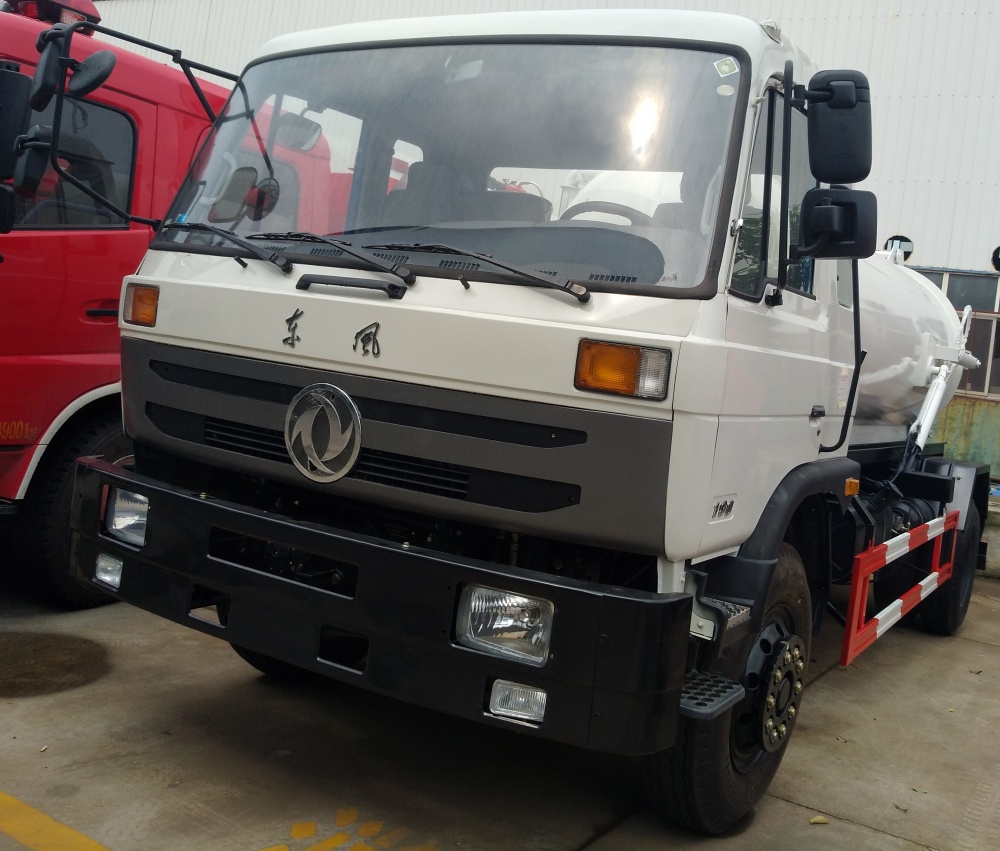

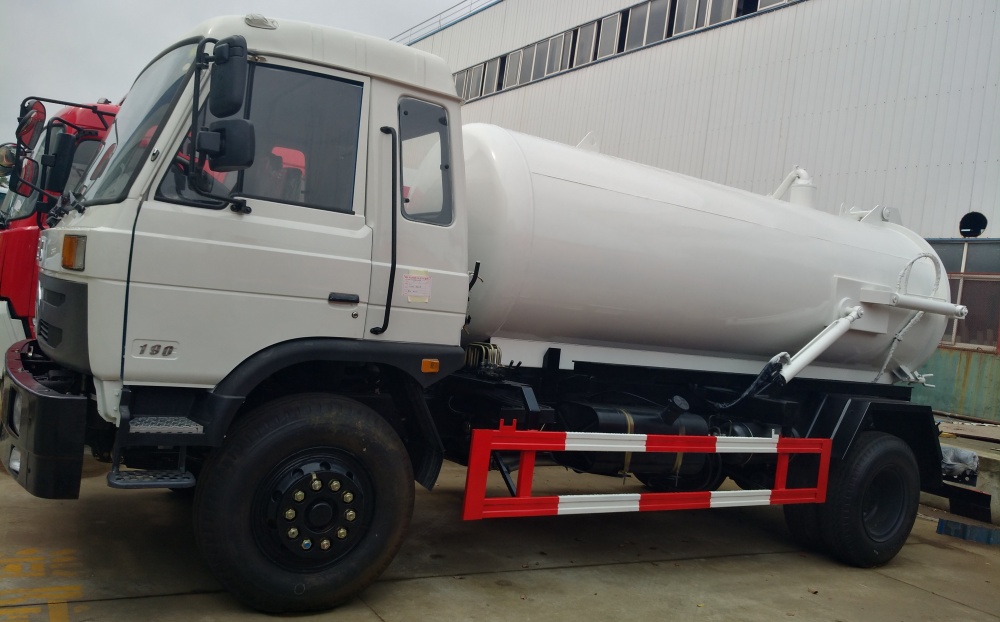

More pictures of dongfeng sludge tank truck for sale
| Vacuum pump model | XD-44（double pump） |
| Vacuum pump blade | Silicium steel centrifugal casting blade |
| Blace thickness | ≥30mm |
| Suitable rotational speed | 500-600 revolutions/min |
| Max vacuum degree | 93-96kilopascal |
| Tanker volume | 10cbm |
| Vertical absorbing height | ≥7m |
|
Horizontal absorbing height |
30m |
| Full absorbing time | ≤5min |
| Alarm type |
Swing rod electronic alarm |
| Tanker lifting time | ≤20s |
|
Remark: this truck just use the double anti-overflow pump, avoiding overflowing better and last the lift time of the pump. |
|
