Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG tank, LPG trailer, LPG truck, etc. in China since 2004s. As the leading manufacturer and supplier of pressure vessels in China, Chengli Special Automobile Co., Ltd. could supply 5 cubic meters to 120 cubic meters LPG tank, 0.2ton-50ton bulk LPG gas tank, etc. More information, please feel free to contact with Ms. Anita Deng.
Today, we will introduce the hot sal 4ton bulk LPG gas tank as below.

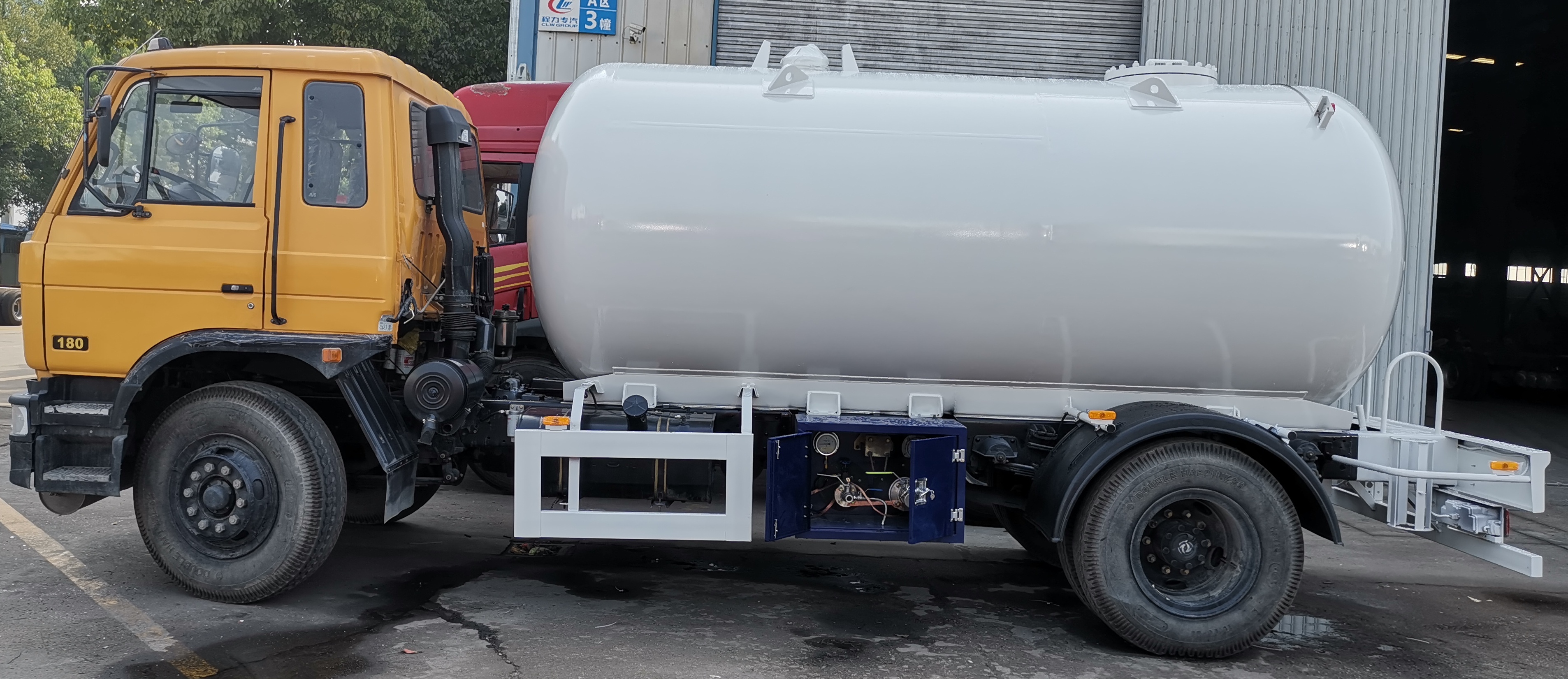

More pictures of the LPG gas tank as below.
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank（15000L） | |
| Product model | CLG1800-15 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 6224*1820*2410 |
| Tank dimension(inner diameter*thickness*length) | mm | DN1800*10*6224 |
| Tank volume | m3 | 15 |
| Tank thickness | mm | 10 |
| End heads thickness | mm | 12 |
| Curb mass | kg | 3920 |
| Rated mass | Kg | 5985 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R、16Mnlll | |
| Standard |
<
|
|
| Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
