Foton Aukarm LED advertising vehicle
2023-11-23 21:42:01 source： clicks ：
Foton Aukarm LED advertising vehicle, aadopt Foton Aumark Euro 4 chassis, 4700mm wheelbase, Cummins 170hp diesel engine, 6 speed transmission, 2050m one row and a half front-reversible driver cab, clutch steering, power steering, 825 tyre, with original air-conditioner.
|
Aumarkhttp://www.truckdf.com mobile LED advertisement vehicle for sale main parameters |
|
Product name |
Foton Aumark Mobile LED advertisement truck for sale |
Overall dimension(mm)： |
8730x2370x3940,3990 |
|
Main screen space(mm)： |
5120×2400=12㎡ |
Rear screen space (mm)： |
1600×1600=2.56㎡ |
|
Total mass ：(kg) |
11695 |
Approach/departure angle(° ) |
23/10 |
|
Rated mass：(kg) |
800 |
Front/rear suspension(mm)： |
1195/2835 |
|
Curb mass：(kg) |
10700 |
Max speed(km/h)： |
99 |
|
Standard device of Foton Aumark LED truck |
-
Left side is with full waterproof outdoor P10 color screen; and the right side is withsidered words screen(2-7 pieces of Light painting switches roller box), 50mm compacted steel frame box; interior with cold-roll steel sheets, interior with aluminum diamond plate, waterproof plastic wood ground. integration of intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system; equips with one piece of Industrial control computer,one set of Broadcast borne power amplifier, one set of control panel, one piece of High performance audio, etc.
|
|
Chosen devices of LED truck |
|
Customers can choose high density screen hydraulic lifting orbit, 4 sets of hydraulic outriggers;.choosing to install double sides or three sides full color screen; choose to install manual or automatic stage device, etc. |
|
Chassis of Foton Aumark LED truck |
|
Chassis model |
BJ5129XXY-FB |
Fuel type |
Diesel |
|
Axle nos. |
2 |
Front tread |
1710,1830 |
|
Wheelbase(mm)： |
4700 |
Rear tread： |
1680,1800 |
|
Rated person |
3(driver included) |
Spring |
8/10+10 |
|
Tyre nos. |
6 |
Tyre specification |
8.25-20 16PR, |
|
Engine of LED truck for sale |
|
Engine model |
Manufacturer |
Displacement（ml） |
power（kw） |
|
ISF3.8s4168 |
Cummins |
3760 |
125 |
|
Emission standard |
Euro 4 |

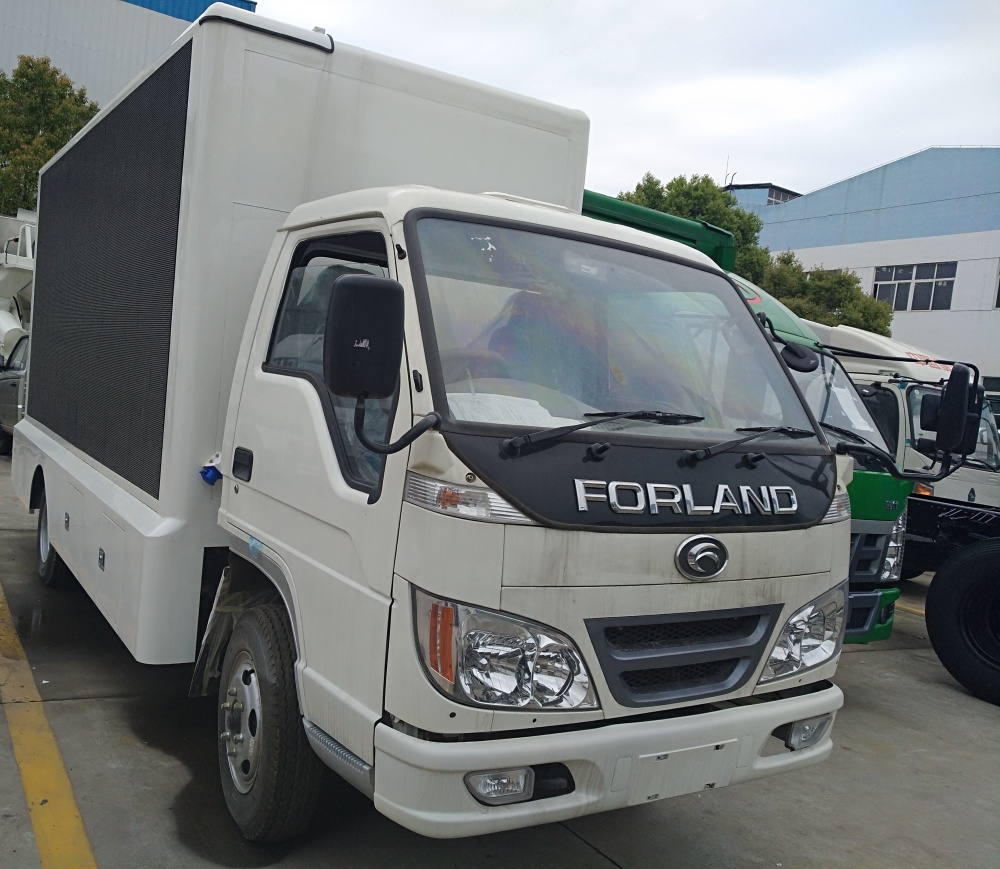

More pictures of Foton Aumark mobile LED advertisement truck for sale
