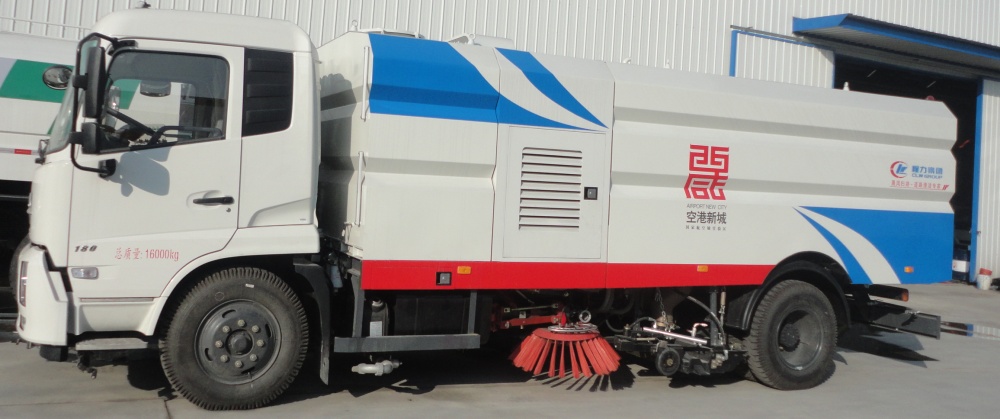

Dongfeng Tianjin sweeping washer vehicle for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck, street sweeper truck, road sweeper truck, sweeper washer vehicle, etc. More information, please feel free to contact with Ms. Anita Deng.
Let me introduce the dongfeng tianjin luxurious sweeper wahser vehicle for your reference.
| Item | Main parameters |
| Overall dimension(L*W*H)（mm） | 8580X2490X3100(mm) |
| Chassis model | Dongfeng Tianjin DFL1160BX5（driver cab with air-conditioner） |
| wheelbase（mm） | 5000 |
| Engine model | ISB180-40 Euro 4 diesel |
| Engine power | 132kw/5900 r/min |
| Deputy engine model | Cummins or JMC Deputy engine |
| Deputy engine power | 118kw/2500r/min |
| Devices | 2 sets of sweepers and wide sucking disk installed at the middle part. |
| Working parameters | 1、there are two sets of sweeping brushes and wide sucking disk installed at the middle part for full sweeping, left sweeping, right sweeping, etc. 2、middle installed wide sucking disk and middle installed V shape high pressure flushing frame for washing sucking; people can choose full cleaning-sucking, left cleaning-sucking and right cleaning-sucking models. 3、middle installed two sets of sweeping brushes, wide sucking disk and high pressure flushing frame for sweeping washer vehicle, with the functions of full sweeping washing, left sweeping washing and right sweeping washing models. |
| Total mass（kg） | 16000 |
| Max speed（km/h） | ≥90 |
| mini turning diameters （m） | ≤19 |
| Sweeping width（m） | ≥3.5 |
| Washing cleaning width（m） | ≥3.5 |
| Working speed（km/h） | 5~20 |
| max working capacity | 70000m2/h |
| Low pressure washing width（m） | ≥24 |
| Low pressure water pump flow | 60m3/h |
| High pressure water pump model | Itian imported HPP-152/10 |
| High pressure water pump flow | 152L/min |
| High pressure water pump pressure | 10MPa |
| Stainless steel clean water volume | 9 cubic meters |
| Stainless steel sewer tank volume | 7.5 cubic meters |
| Wastes discharging way | Lifting the van with the high pressure washing |
