Wrecker tow truck is also called road block removal truck, tow truck, road rescue truck, road breakdown truck, etc. This kind of wrecker tow truck is with the functions of lifting, pulling and lifting-traction, etc. mainly used for road block removal vehicles, illegal vehicles of cities, road rescue, etc.
main technical parameters of Euro 4 ISUZU wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. as below
1. China professional manufacturer of wrecker tow trucks
2. Drive model: 4x2,4x4,6x4,6x6,8x4 wrecker tow trucks for choose
3. So many brands of tow trucks: Dongfeng, QingLing, North Benz,JAC, JMC, FAW, Foton, Sinotruck, etc
4. Engine: Euro 2, Euro3 or Euro 4 or Euro 5 emission standard of wrecker tow trucks for choose
5. Left hand drive / Right hand drive wrecker tow truck with optional
ISUZU Brand 4T wrecker towing truck adopts ISUZU brand truck chassis, ISUZU 600P single row reversible driver cab with power steering and air conditioner, 3815mm wheelbase, ISUZU MSB 5 speed gearbox, 2tons front axle/4.8tons rear axle, ISUZU 4KH1CN5HS 130hp diesel Euro 5 engine, 7.00R16 rail tires, etc.
This ISUZU brand 4*2 road breakdown wrecker towing truck is with the loading capacity of upper part of 4T，imported hydraulic system, Bilateral linkage operation, two sections hexagon shape crane boom, 4tons winch, 21m length wire rope, 2 sections towing arm, auxiliary wheels*1, etc.
main technical parameters of Japan ISUZU 4T Flatbed wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Overall parameters | Product name | ISUZU 4tons wrecker tow truck for sale |
| Manufacturer | Chengli Special Automobile Co., Ltd. | |
| Product model | CLW5070TQZQ5 | |
| Total mass(kgs) | 7300 | |
| Rated mass(kgs) | ||
| Curb mass(kgs) | 4280 | |
| Overall dimension (L*W*H)(mm) | 7460×2350×2400 | |
| Chassis parameters | Driver cab | ISUZU 4*2 LHD 600P single row luxurious driver cab with 2 seats |
| Approach/departure angle(°) | 24/9 | |
| Front/rear suspension(mm) | 1015/2450 | |
| Axles nos. | 2 | |
| Wheelbase(mm) | 3815 | |
| Axle load(kgs) | 2580/4720 | |
| Max speed(km/h) | 110 | |
| Tire specification | 7.00R16 8PR*6 | |
| Steel spring | 8/6+5 | |
| Front/rear tread(mm) | 1504/1425 | |
| Engine model | 4KH1CN5HS | |
| Fuel type | Diesel | |
| Emission standard | EuroⅤ | |
| Gearbox | ISUZU MSB 5 speed gearbox, manual | |
| Upper part parameters | Flatbed dimension(L*W)(mm) | 5600*2300 |
| Rear hydraulic flapping plate Length (mm) | 1000 | |
| Total flatbed length (mm) | 5600+1000 | |
| Hydraulic winch | 4tons | |
| Operation way | Bilateral linkage operation | |
| Rear towing arm | 2.5tons loading capacity for the rear towing arm | |
| Loading capacity of the flatbed | 4tons | |
| Wire rope | 21m length | |
| Auxiliary wheels | 2 sets | |
| Special binding belts | 4 sets | |
| Caller with alarm light | Yes |

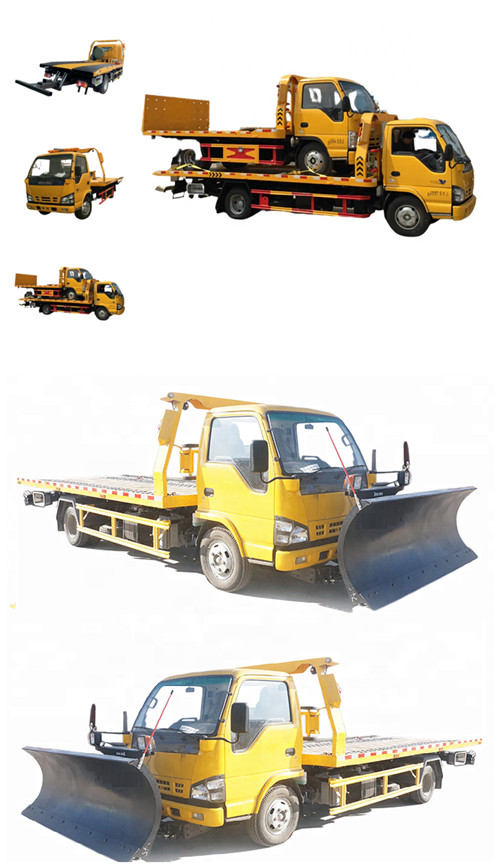

More pictures of ISUZU 4T flatbed wrecker towing truck is as below.
customized Japan ISUZU 4T flatbed wrekcer towing vehicle for sale
The boom section of the boom has six sides, the strength and the stability of the boom are both big and the structure of the four sides.
Towing hook: 4tons
Crane capacity : 4tons
Lifting height :3mm
The maximum lifting height of 1200mm.
Multi valve, balance valve with Italy original import parts; hydraulic cylinder, hydraulic connector using German technology; full import seal.
The vehicle is equipped with 2 150KN (hydraulic hoist winch), 55 meter wire rope, The three section boom, three arm, split carriage, bilateral linkage operation device, the front bumper of the counterweight, After working light 3, 1 hand washing boxes, 1 sets of U type holding device, 5 pairs of bracket, 1 pairs of holder, N. 2, 1 a long row of lights, Auxiliary lamp assembly 1 sets, Auxiliary brake trachea assembly 1 sets.
