Dongfeng Euro 4 small dump truck, adopts dongfeng ruling single row reversible driver cab, 3300mm wheelbase, sida 75KW/102Hp diesel Euro 4 engine, 2.5ton front bridge/3.5ton rear bridge, 7.00R16 12PR tyre,12 volts electronic line, power steering, air-cut braking, clutch steering, 5A92 transmission, etc.
And the overall dimension of the dongfeng small dump truck is 5500×2000×2300(mm), the cargo body dimension is 3600×1750×800. This dongfeng single row dump truck, adopts high quality carbon steel. Rear door tipping.
| Main parameters Dongfeng single row dump garbage truck for sale | |||
| Dongfeng dump garbage truck for sale | |||
| Total mass(Kg) | 7300 | Truck volume(m3) | 5cbm |
| Rated mass(Kg) | 3370,3305 | Overall dimension(mm) | 5500×2000×2300 |
| Curb mass(Kg) | 3800 | Cargo body dimension(mm) | 3600×1750×800 |
| Driver cab person | 2,3 | Max speed(km/h) | 95 |
| Approach/departure angle(°) | 19/12 | Front/rear suspension(mm) | 1032/1168 |
| Axle nos. | 2 | wheelbase(mm) | 3300 |
| Axle load(Kg) | 2920/4380 | Driver cab | Dongfeng ruiling single row reversible driver cab |
| Chassis Main parameters Dongfeng single row dump garbage truck for sale | |||
| Chassis model | DFA1070SJ35D6 | Chassis manufacturer | Dongfeng company |
| Overall dimension (mm) | 5845×1900×2220 | Tyre nos. | 6 |
| Approach/departure angle(°) | 19/16 | Tyre Specification | 7.00R16 14PR |
| Steel spring | 8/9+5, | Front tread(mm) | 1506,1404,1500,1441,1586 |
| Fuel type | Diesel | Rear tread(mm) | 1466,1458,1520,1500,1530 |
| Emission standard | Euro 4 | ||
| Engine | Manufacturer | Displacement (ml) | Power (Kw) |
| SD4BW754U | Sida engine | 2834 | 70 |

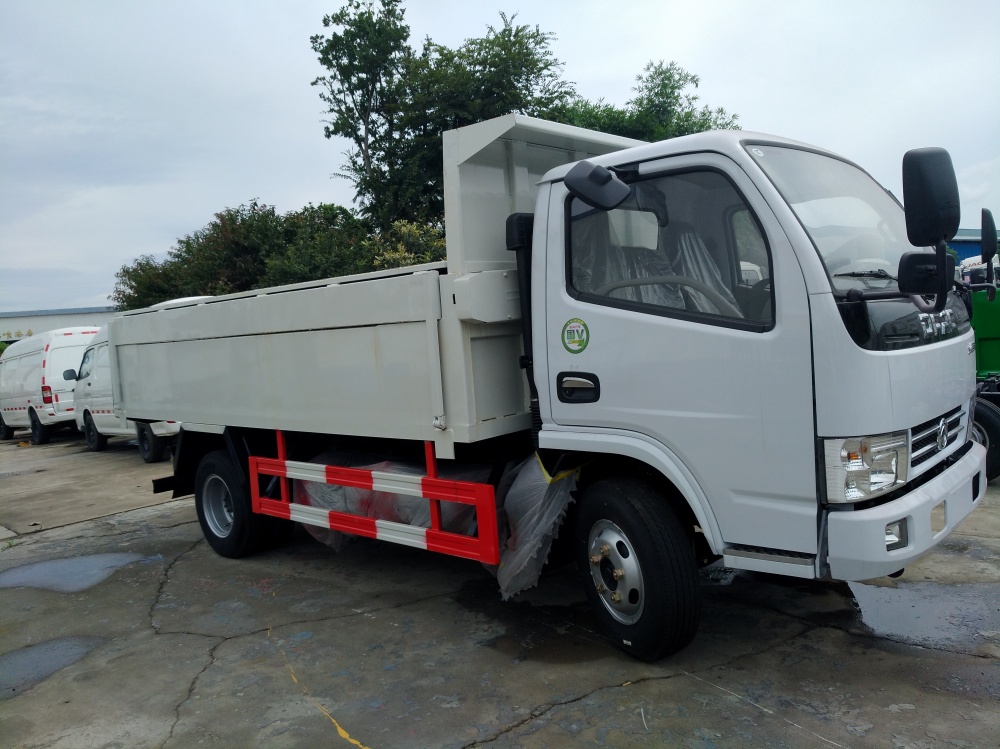

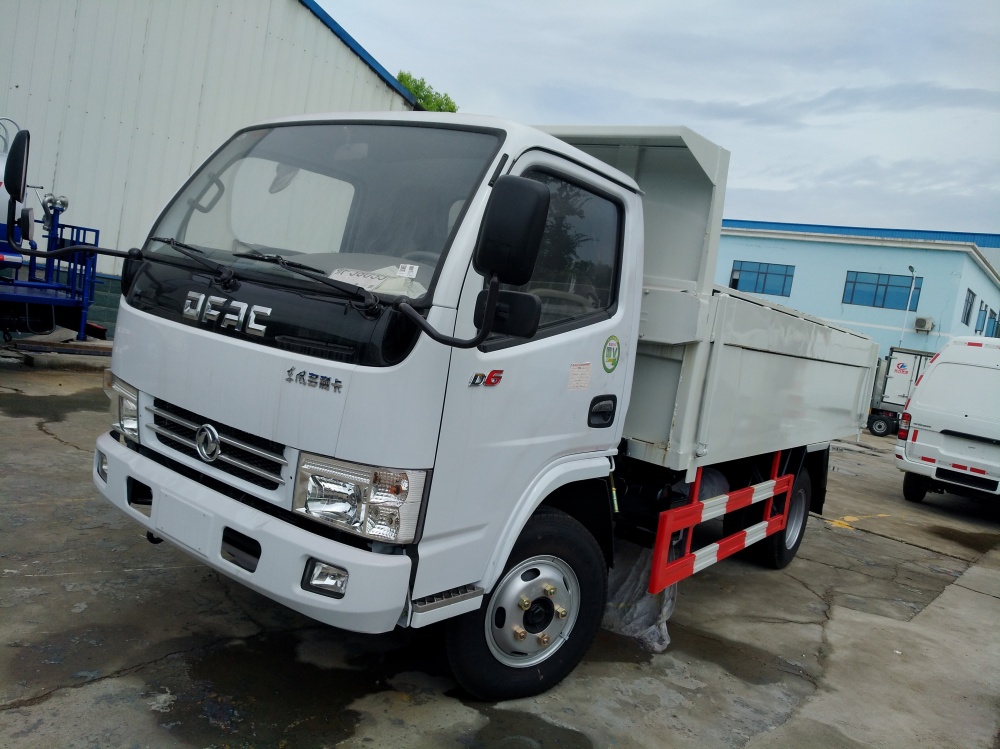

More pictures of dongfeng single row dump trucks manufacturerd by Chengli Special Automobile Co., Ltd.
dongfeng 4*2 6 tires dump tipper truck for domestic wastes collection for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
