Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG tank, LPG trailer, LPG truck, etc. in China since 2004s. As the leading manufacturer and supplier of LPG tank, Chengli Special Automobile Co., Ltd. could supply 5 cubic meters to 120 cubic meters LPG tank, 20 metric ton LPG tank, 40 metric ton LPG gas tank, etc.

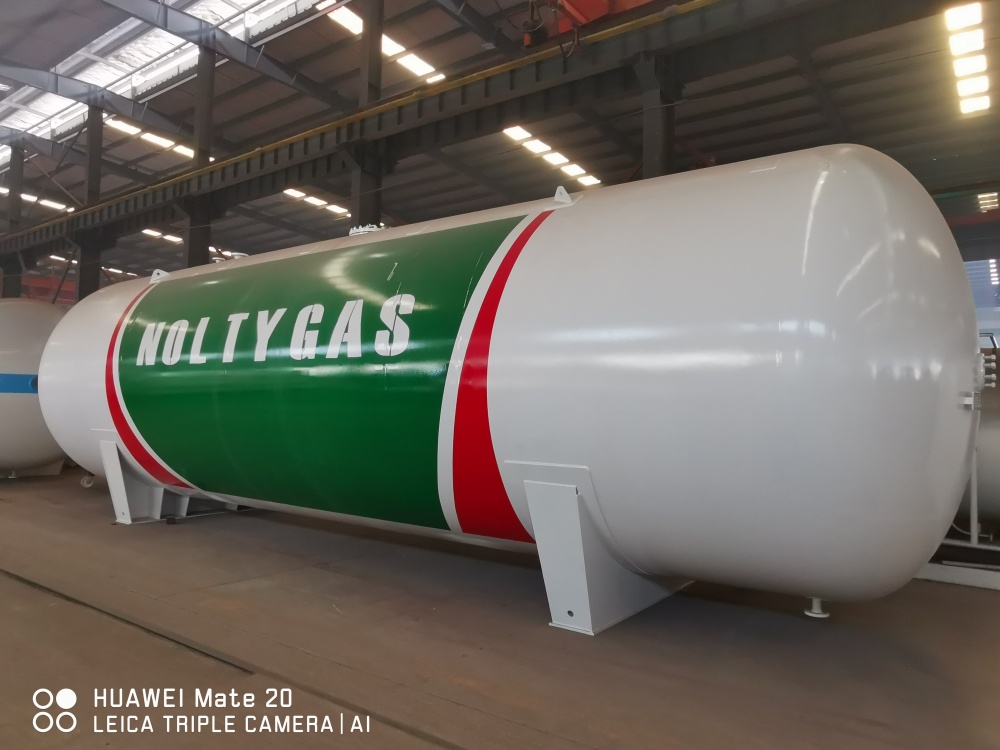

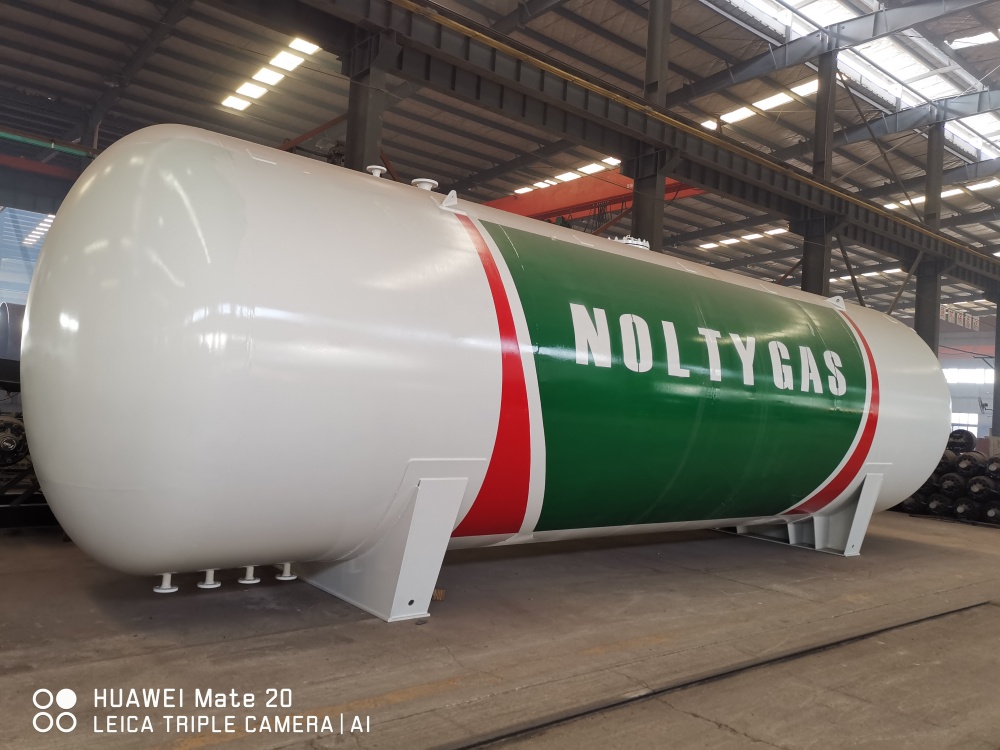

Today, let introduce the hot sale 40 metric ton LPG gas tank as below.
Item | Unit | Main parameters |
Product name | LPG gas storage tank(100000L) | |
Product model | CLG3100-100 | |
Loading medium | LPG gas (propane) | |
Overall dimension(L*W*H) | mm | 13866*3132*3722 |
Tank dimension(inner diameter*thickness*length) | mm | DN3100*16*13866 |
Tank volume | m3 | 100 |
Tank thickness | mm | 16 |
End heads thickness | mm | 18 |
Curb mass | kg | 20410 |
Rated mass | Kg | 39900 |
Designed pressure | Mpa | 1.77 |
Working pressure | Mpa | ≤1.6 |
Working temperature | ℃ | ≤50 |
Hydraulic test pressure | Mpa | 2.22 |
Air tight test pressure | Mpa | 1.77 |
Tank and main Material pressure components | Q345R、16Mnlll | |
Standard |
<
|
|
Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
