CLW9400XLC refrigerated van trailer is with the overall dimension is 14600X2550X4000(mm), and the insulation body van dimension of 13820X2330X2410,2360mm.

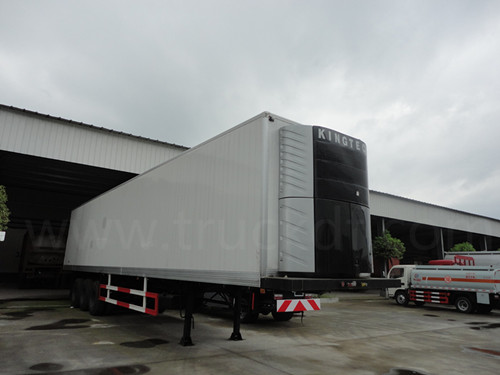

Look at the pictures of the refrigerated van trailer as below
CLW refrigerated trailer, adopts high quality HUWA/BPW 3 axles, 12 sets of 11.00-20, 28ton outriggers, 7 spring steel, 90#/50# traction pin, 1.5m length tool box, and one spare tire frame, etc.
And the insulation body adopts high quality fiberglass for exterior and interior layers, 80mm PU foam sheets with one-formed vacuum negative pressure as the middle insulation layer. And the insulation body van is a sealed sheets, adopting high quality safe adhesive glued them the sheets together, fastened by buried with high strength screws. And there will be aluminum alloy ventilating slots at the bottom for the long van. The cooling unit of the refrigerated semitrailer adopts USA K brand SK1800 model trailer independent cooling unit, and the temperature can be adjusted with below 12 degree. The insulation van trailer can installed ith meat hooks.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated trucks, such as ISUZU refrigerated truck, dongfeng reefer van truck, Foton refrigerated truck, JMC freezer van, Chang'an freezer minivan, etc. More information, please feel free to contact with Ms. Anita Deng.
