- main technical parameters of Dongfeng tianjin vacuum tanker and cleaning vehicle is as below
| Product name | CLW5181GQW3 sludge tanker and cleaning vehicle for sale | Product brand | CLW |
| Total mass(kgs) | 18000 | Tanker volume(m3) | 9+3 |
| Rated mass(kgs) | 4870, | Overall dimension(L*W*H)(mm) | 9000×2550×3550 |
| Curb mass(kgs0 | 13000 | Cargo body dimension(mm) | ×× |
| Axle nos. | 2 | Wheelbase(mm) | 4700 |
| Chassis model | DFL1160BX1 | Truck chassis | Second type cargo truck chassis |
| - | - | Tires nos. | 6 |
| Fuel type | Diesel | Tires specification | 10.00R20 |
| Emission standard | Euro 3 | ||
Engine model | Manufacturer | Displacement(ml) | Power(kw) |
| B190-33 | Dongfeng Cummins | 5900 | 140 |
Truck chassis: adopts Dongfeng Tianjin original truck chassis, pearl white color one row and a half driver cab(different color upon request), Cummins B190 33 190hp diesel Euro 3 engine, Dongfeng 6 speed manual gearbox, 4700mm wheelbase, 10.00R20 rail tires, power steering, clutch booster, air cut braking, and air conditioner, etc.
Instruction: sewer cleaning truck is one the basis of high pressure cleaning tanker vehicle and installed with suction pump, sewage tanker, sewage pipes, a special purpose vehicles with the functions of cleaning and sewage suction. It is composed of two tankers, two pumps,(high pressure cleaning pump and vacuum pump), two pipelines, etc.

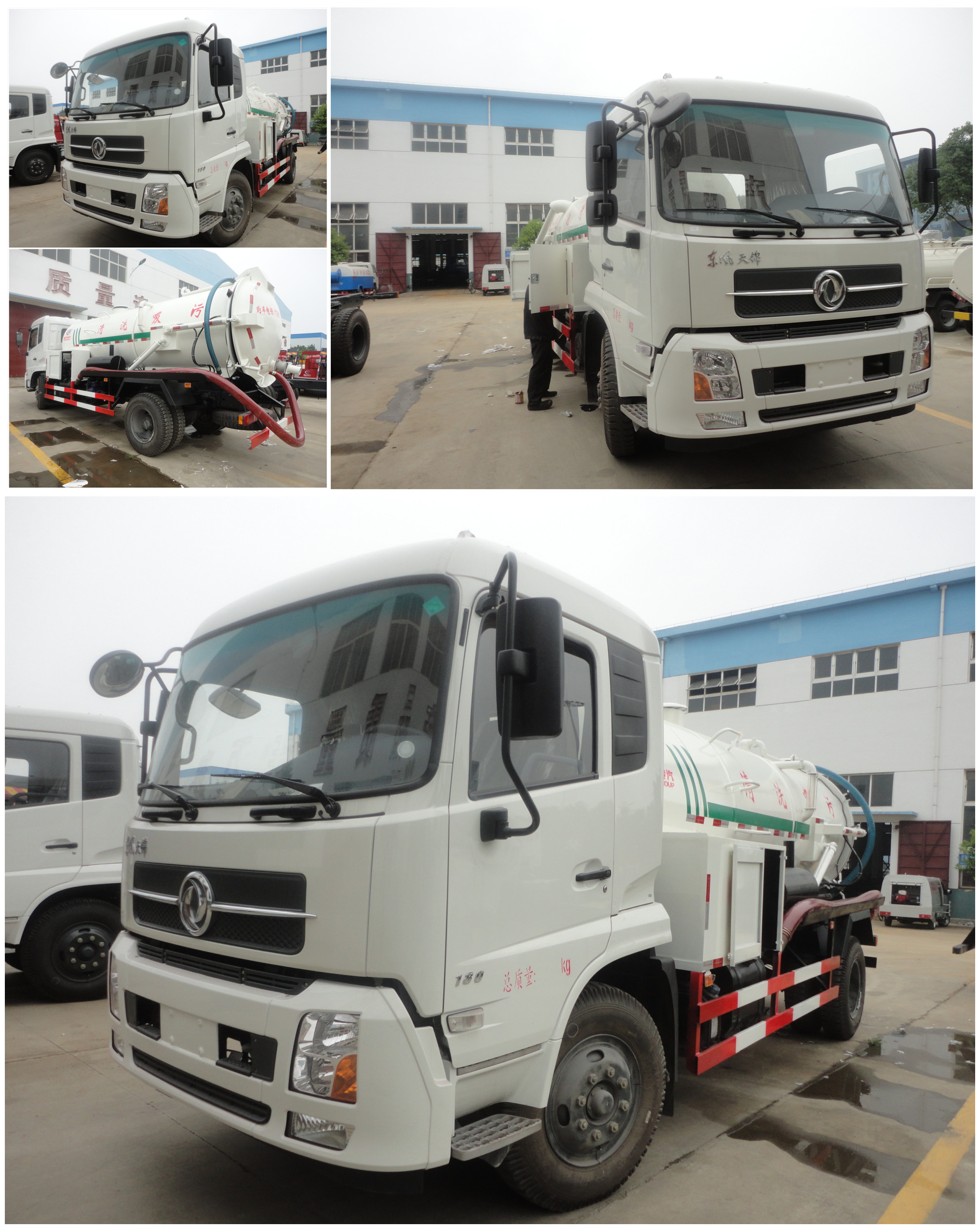

More pictures of customized dongfeng tianjin vacuum tanker and cleaning vehicle is as below.
customized dongfeng tianjin 190hp diesel vacuum tanker and cleaning vehicle for sale
VACUUM TANKER parameters is as below.
1, the tanker adopts high quality wugang steel plate, 6mm thickness tanker wall. There are several anti-wave sheets inside the tanker.
2, the volume of the sewer and cleaning truck is 12cbm in total. 3cbm volume of the cleaning water tanker+9cbm sewer tanker volume. It is with the function of water and sewage interworking and stainless-steel material filter, net.
3, the inlet of the water tanker is with ball-valve type hydrant (easy turn on-off and durable with fire-fighting coupling and pagoda type hand washing valve.
4, the high-pressure pump adopts GERMAN PINGFU 213 model, 22MPa，independent researched large filter( none disassembly and washing, and preventing impurities into the pump).
5, the vacuum pump adopts Shangdong zibo haosai SK-15 model water-circulating pump, high precision and large suction power.
6, there is anti-overflow valve on the tanker top and 2* stainless-steel material filter nets for the vacuum pump inlet (preventing impurities into the pump).
7, vacuum pump is with drain valve, the pump base is designed from the distance of to the ground up to 26mm.
8, the rear high- pressure reel is fixed with triangle pose closure, stable and reliable. Reel is with the design of increased up and thickness(6mm), with the function of pipe spraying (can spraying the high-pressure pipe when the pipe return-back after working).
9, the two sides of the tanker are with diamond board type pipe platform with guardrail.
10, the operation system is in the operation box in line. There is manual instructions and notes.
11, the high pressure three-way valve and sewage four-way valve position is with 100mm diameter vibration-proof pressure gauge, which to resist the vibration of the working conditioner and reduce the pulsation of medium pressure.
12, one toolbox, one 100mm sewage opening and one 150mm drain sewer opening.
accessories
One technical manual directions synopsis.
One vehicle maintenance manual
A set of driver’s tools
ball valve booster rod
1*9 model 60m length high-pressure tube, 1*8m length sewer pipe, one set* 10 combined type nozzles, one box* spare parts for the high pressure pump, 2*Parrot spraying nozzles.
