50cubic meters LPG gas storage tank export to Nigeria
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG tank, LPG trailer and LPG truck, etc. And the LPG tank, we can offer underground LPG tanks is from 10cubic meters to 80 cubic meters; the ground bulk LPG tank is from 5,000L to 120,000L; And the LPG trailer is from 40.5cbm to 59.52cbm. etc.
Recently, one of our Nigeria clients place an order of 5 units of 50,000L LPG tank.

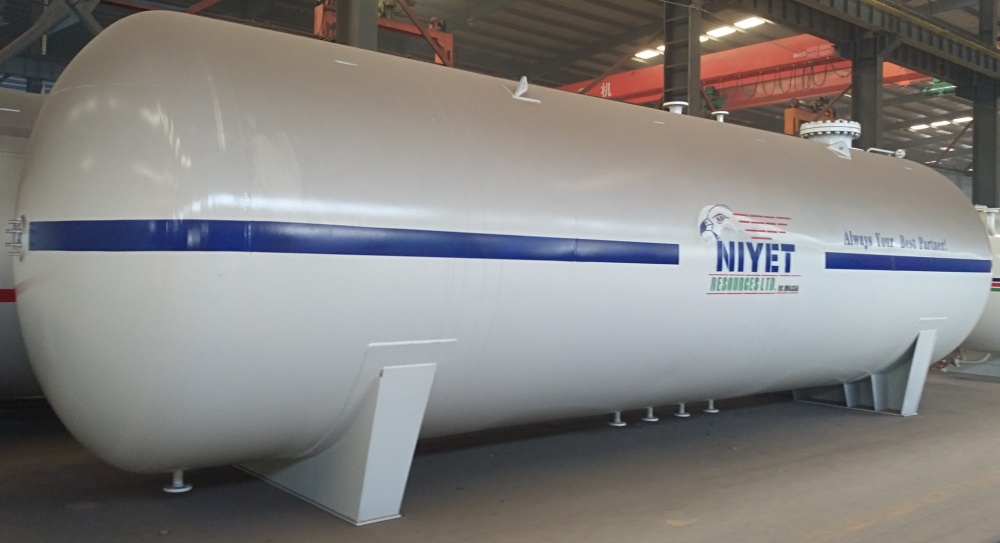

Look at the pictures of 50,000L LPG tank for Nigeria customer under production.
|
Items |
Unit | Main parameters |
| Product name | LPG gas storage tank（50,000L） | |
| Product model | CLG2700-50 | |
| Loading medium | LPG (propane) | |
| Overall dimension(L*W*H) | mm | 9182*2728*3318 |
| Tank dimension(inner diameter*thickness*length) | mm | DN2700*14*9182 |
| Tank volume | m3 | 50cbm |
| Curb mass | kg | 10640 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | oc | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R、16Mnlll | |
| Standard |
<
|
|
| Chosen assembly | Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc. | |
