Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck and tipper in China since 2004s. With many years experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply dongfeng brand dump truck, ISUZU tipper, HOWO dump truck, forland dump truck, LHD dump truck and RHD dump truck, etc.
And today, let Ms. Anita Deng introduce one of the hot sale ISUZU LHD twin cab mini dump truck as below.

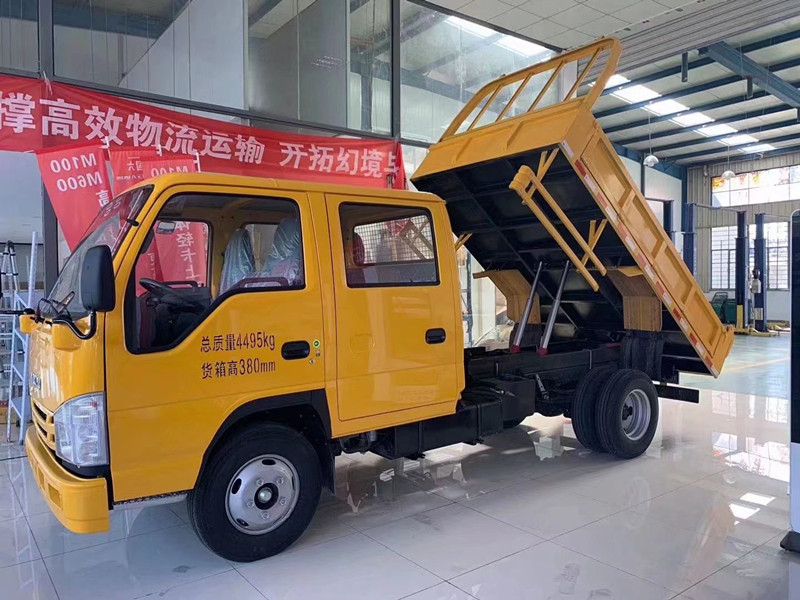

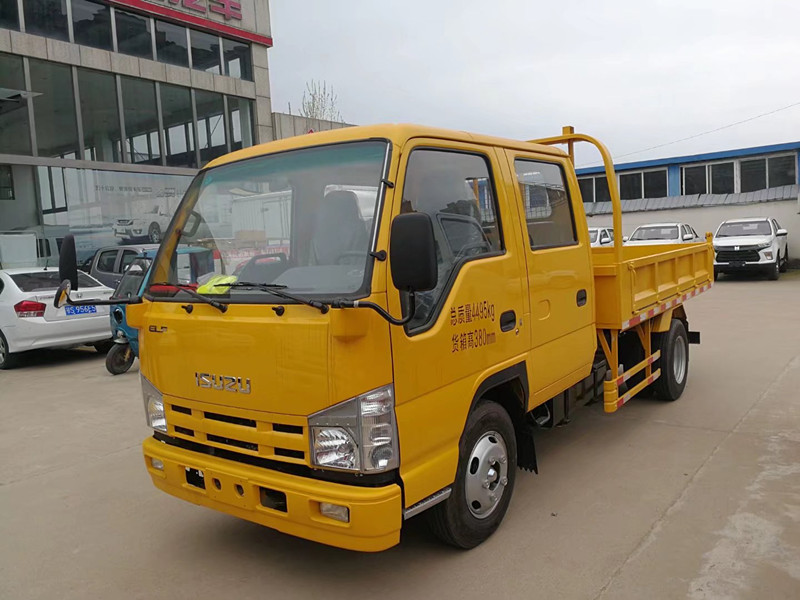

ISUZU tipper truck 3tons double cabs for sale
ISUZU mini dump truck for sale
| Main parameters | |||
| ISUZU Euro 4 LHD mini dump truck | |||
| Total mass(Kg) | 5300 | Capacity | 3ton |
| Rated mass(Kg) | 2085 | Overall dimension(L*W*H)(mm) | 5990×1860×2185 |
| Curb mass(Kg) | 2890 | Cargo body dimension(mm) | 3170×1775×450 |
| Driver cab person | 2+3 | Max speed(km/h) | 98 |
| Approach/departure angle(°) | 24/15 | Front/rear suspension(mm) | 1015/1615 |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1970/3330 | Driver cab | ISUZU driver cab with original air-conditioner, power steering and radio |
| Chassis main parameters ISUZU dump truck | |||
| Chassis model | QL10503HWRY | Manufacturer | ISUZU |
| Overall dimension(mm) | 5900×1860×2180 | Tyre nos. | 6 |
| Approach/departure angle(°) | 24/16 | Tyre specification | 7.00-15 10PR, |
| Transmission | ISUZU MSB 5 speed transmission | Brake | Oil brake with vacuum booster pump |
| Steel spring | 8/6+5 | Front tread(mm) | 1385 |
| Fuel type | Diesel | Rear tread(mm) | 1425 |
| Emission standard | Euro 4 | ||
| Engine ISUZU tipper for sale | |||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| 4JB1CN | ISUZU | 2771 | 72 |
| Cargo body | |||
| Cargo body dimension (L*W*H)(mm) | 3170×1775×450 | Material | High quality carbon steel, 3mm thick side sheet and 4mm thick bottom sheet |
| Dump type | Rear door tipping with double cylinders in the middle | ||
